1bw9

PHENYLALANINE DEHYDROGENASE STRUCTURE IN TERNARY COMPLEX WITH NAD+ AND PHENYLPYRUVATE

Method: X-RAY DIFFRACTION D_max: 116.6 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHENYLALANINE DEHYDROGENASE

Rhodococcus sp.

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–356 Chain B； UniProt 1–356	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 PPY 3-PHENYLPYRUVIC ACID × 2 K POTASSIUM ION × 2 NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1 EDO 1,2-ETHANEDIOL × 3 IPA ISOPROPYL ALCOHOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.7；pH 8.7	Resolution 1.50 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BXG PHENYLALANINE DEHYDROGENASE STRUCTURE IN TERNARY COMPLEX WITH NAD+ AND BETA-PHENYLPROPIONATE Deposited 1998-10-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–356（356 aa） Chain B 1–356（356 aa）	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 HCI HYDROCINNAMIC ACID × 2 K POTASSIUM ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.7；pH 8.7	Resolution 2.30 Å
1C1D L-PHENYLALANINE DEHYDROGENASE STRUCTURE IN TERNARY COMPLEX WITH NADH AND L-PHENYLALANINE Deposited 1999-07-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–356（355 aa） Chain B 2–356（355 aa）	Not recorded	K POTASSIUM ION × 4 PHE PHENYLALANINE × 2 NAI 1,4-DIHYDRONICOTINAMIDE ADENINE DINUCLEOTIDE × 2 NA SODIUM ION × 2 PO4 PHOSPHATE ION × 1 IPA ISOPROPYL ALCOHOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.7；pH 8.70	Resolution 1.25 Å R-free 0.238
1C1X L-PHENYLALANINE DEHYDROGENASE STRUCTURE IN TERNARY COMPLEX WITH NAD+ AND L-3-PHENYLLACTATE Deposited 1999-07-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–356（355 aa） Chain B 2–356（355 aa）	Not recorded	K POTASSIUM ION × 4 NA SODIUM ION × 1 HFA ALPHA-HYDROXY-BETA-PHENYL-PROPIONIC ACID × 2 NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 2 PO4 PHOSPHATE ION × 1 IPA ISOPROPYL ALCOHOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions MACROSEEDED INTO BATCH；pH 8.7；296 K；1.2 M NA/K PHOSPHATE 50 MM CHES 2% ISOPROPANOL 5 MM NAD+ 10 MM L-3- PHENYLLACTATE 3.75 MG/ML PROTEIN, pH 8.7, MACROSEEDED INTO BATCH, temperature 296K	Resolution 1.40 Å R-free 0.229

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q59771_RHOSO
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–356； UniProt 1–356 Author chain B； PDBConstruct 1–356； UniProt 1–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

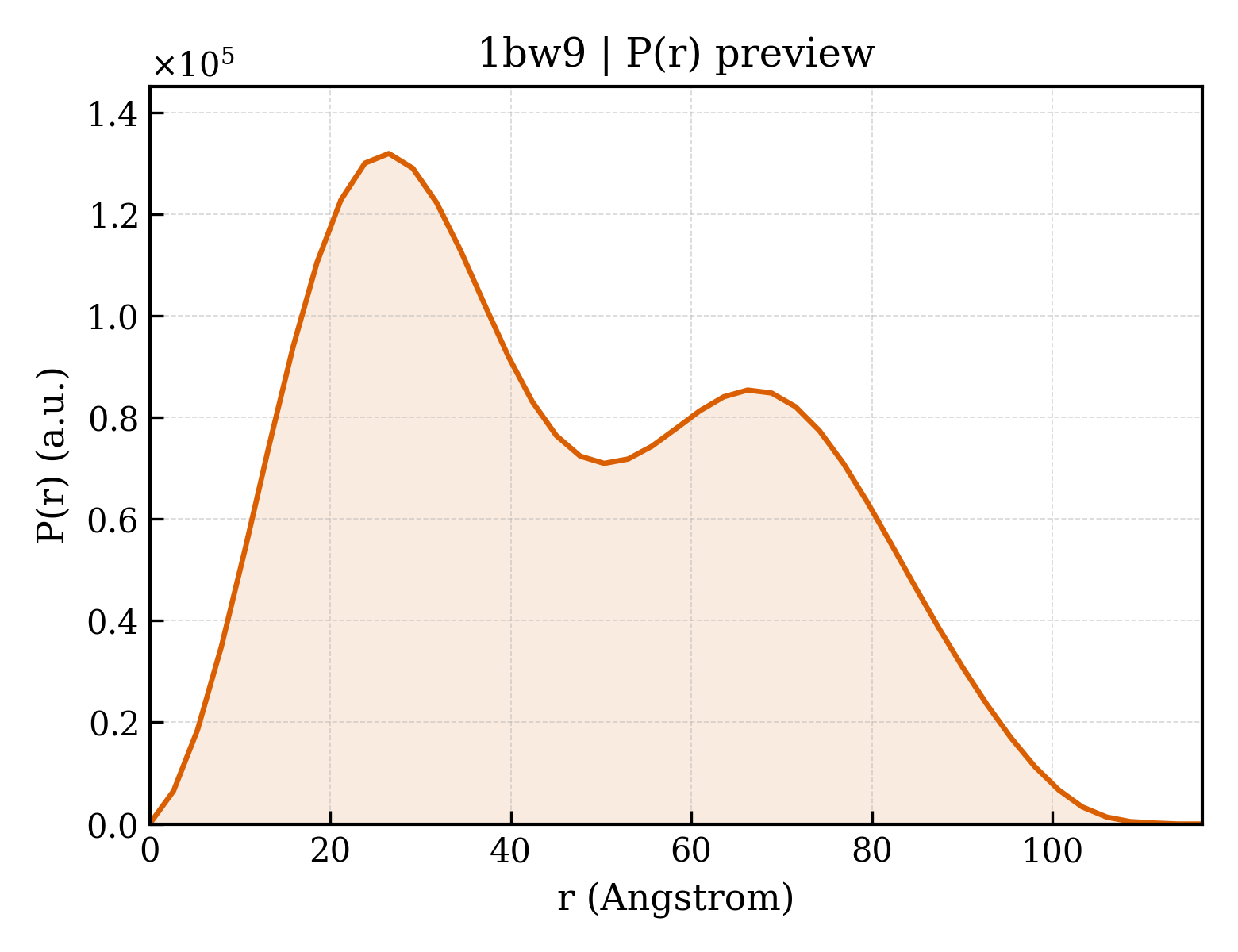

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bw9
Deposition date deposition_date	1998-10-01
Structure title title	PHENYLALANINE DEHYDROGENASE STRUCTURE IN TERNARY COMPLEX WITH NAD+ AND PHENYLPYRUVATE
Keywords keywords	AMINO ACID DEHYDROGENASE, OXIDATIVE DEAMINATION MECHANISM; AMINO ACID DEHYDROGENASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.14 Å
Radius of gyration Rg (electron density) rg_electron	36.06 Å
Forward intensity I(0) i0	90791400.00
Molecular weight molecular_weight	73692.0 kDa
Excluded volume excluded_volume	90873 Å³
Envelope volume envelope_volume	119810 Å³
Hydration-shell volume shell_volume	27527 Å³
Envelope diameter envelope_diameter	114.4 Å
Shell Rg shell_rg	42.44 Å
Envelope Rg envelope_rg	35.38 Å
Shape Rg shape_rg	36.04 Å
Total Rg total_rg	36.54 Å
Total atoms total_atoms	5162
Residues n_residues	697
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	116.6 Å
Rg (real space) rg_real	36.41 Å
Rg uncertainty (real space) rg_real_error	1.07 Å
I(0) (real space) i0_real	9.0790e+07
I(0) uncertainty (real space) i0_real_error	1.6540e+06
Rg (reciprocal space) rg_reciprocal	36.25 Å
I(0) (reciprocal space) i0_reciprocal	90780000.0000
Solution quality estimate total_estimate	0.6898
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.5 Å
Skewness Skewness skewness	0.312
Kurtosis Kurtosis kurtosis	-0.977
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17630000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.485; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.510; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	PHENYLALANINE DEHYDROGENASE
Molecular weight formula_weight	36559.8 kDa
EC 编号 ec_number	1.4.1.20
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6225

MSIDSALNWDGEMTVTRFDSMTGAHFVIRLDSTQLGPAAGGTRAAQYSNLADALTDAGKLAGAMTLKMAVSNLPMGGGKSVIALPAPRHSIDPSTWARILRIHAENIDKLSGNYWTGPDVNTNSADMDTLNDTTEFVFGRSLERGGAGSSAFTTAVGVFEAMKATVAHRGLGSLDGLTVLVQGLGAVGGSLASLAAEAGAQLLVADTDTERVAHAVALGHTAVALEDVLSTPCDVFAPCAMGGVITTEVARTLDCSVVAGAANNVIADEAASDILHARGILYAPDFVANAGGAIHLVGREVLGWSESVVHERAVAIGDTLNQVFEISDNDGVTPDEAARTLAGRRAREASTTTATA

来源 Source

来源生物 organism	Rhodococcus sp.
NCBI Class编号 ncbi_taxonomy_id	1831
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PHENYLALANINE DEHYDROGENASE
Molecular weight formula_weight	36615.9 kDa
EC 编号 ec_number	1.4.1.20
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSIDSALNWDGEMTVTRFDKMTGAHFVIRLDSTQLGPAAGGTRAAQYSQLADALTDAGKLAGAMTLKMAVSNLPMGGGKSVIALPAPRHSIDPSTWARILRIHAENIDKLSGNYWTGPDVNTNSADMDTLNDTTEFVFGRSLERGGAGSSAFTTAVGVFEAMKATVAHRGLGSLDGLTVLVQGLGAVGGSLASLAAEAGAQLLVADTDTERVAHAVALGHTAVALEDVLSTPCDVFAPCAMGGVITTEVARTLDCSVVAGAANNVIADEAASDILHARGILYAPDFVANAGGAIHLVGREVLGWSESVVHERAVAIGDTLNQVFEISDNDGVTPDEAARTLAGRRAREASTTTATA

来源 Source

来源生物 organism	Rhodococcus sp.
NCBI Class编号 ncbi_taxonomy_id	1831
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	3-PHENYLPYRUVIC ACID
Molecular weight formula_weight	164.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 10 Entity 10 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1021

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1bw9a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1bw9a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
Superfamily Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
Family Family family	c.58.1.1 — Aminoacid dehydrogenases

Domain ID domain_id	d1bw9b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.7 — Aminoacid dehydrogenase-like, C-terminal domain

Domain ID domain_id	d1bw9b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.58 — Aminoacid dehydrogenase-like, N-terminal domain
Superfamily Superfamily superfamily	c.58.1 — Aminoacid dehydrogenase-like, N-terminal domain
Family Family family	c.58.1.1 — Aminoacid dehydrogenases

CATH v4.4 (4 domains)

Domain ID domain_id	1bw9A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

Domain ID domain_id	1bw9A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1bw9B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10860 — Leucine Dehydrogenase, chain A, domain 1

Domain ID domain_id	1bw9B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.300 Å
Unit-cell length b length_b	110.200 Å
Unit-cell length c length_c	113.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1950
R_free r_free	—

fit	/app/data/saxs_computation/bw/1bw9/1bw9.fit
pddf	/app/data/pr_computation/bw/1bw9/1bw9.pr.out
profile	/app/data/saxs_computation/bw/1bw9/1bw9.dat
