1bwr
PROBING THE SUBSTRATE SPECIFICITY OF THE INTRACELLULAR BRAIN PLATELET-ACTIVATING FACTOR ACETYLHYDROLASE
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bwr |
| deposition_date | 1998-09-27 |
| title | PROBING THE SUBSTRATE SPECIFICITY OF THE INTRACELLULAR BRAIN PLATELET-ACTIVATING FACTOR ACETYLHYDROLASE |
| keywords | ACETYLHYDROLASE, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.90 Å |
| rg_electron | 16.50 Å |
| i0 | 10674000.00 |
| molecular_weight | 23882.0 kDa |
| excluded_volume | 29739 ų |
| envelope_volume | 33404 ų |
| shell_volume | 16842 ų |
| envelope_diameter | 57.0 Å |
| shell_rg | 22.73 Å |
| envelope_rg | 16.71 Å |
| shape_rg | 16.50 Å |
| total_rg | 17.46 Å |
| total_atoms | 1688 |
| n_residues | 212 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

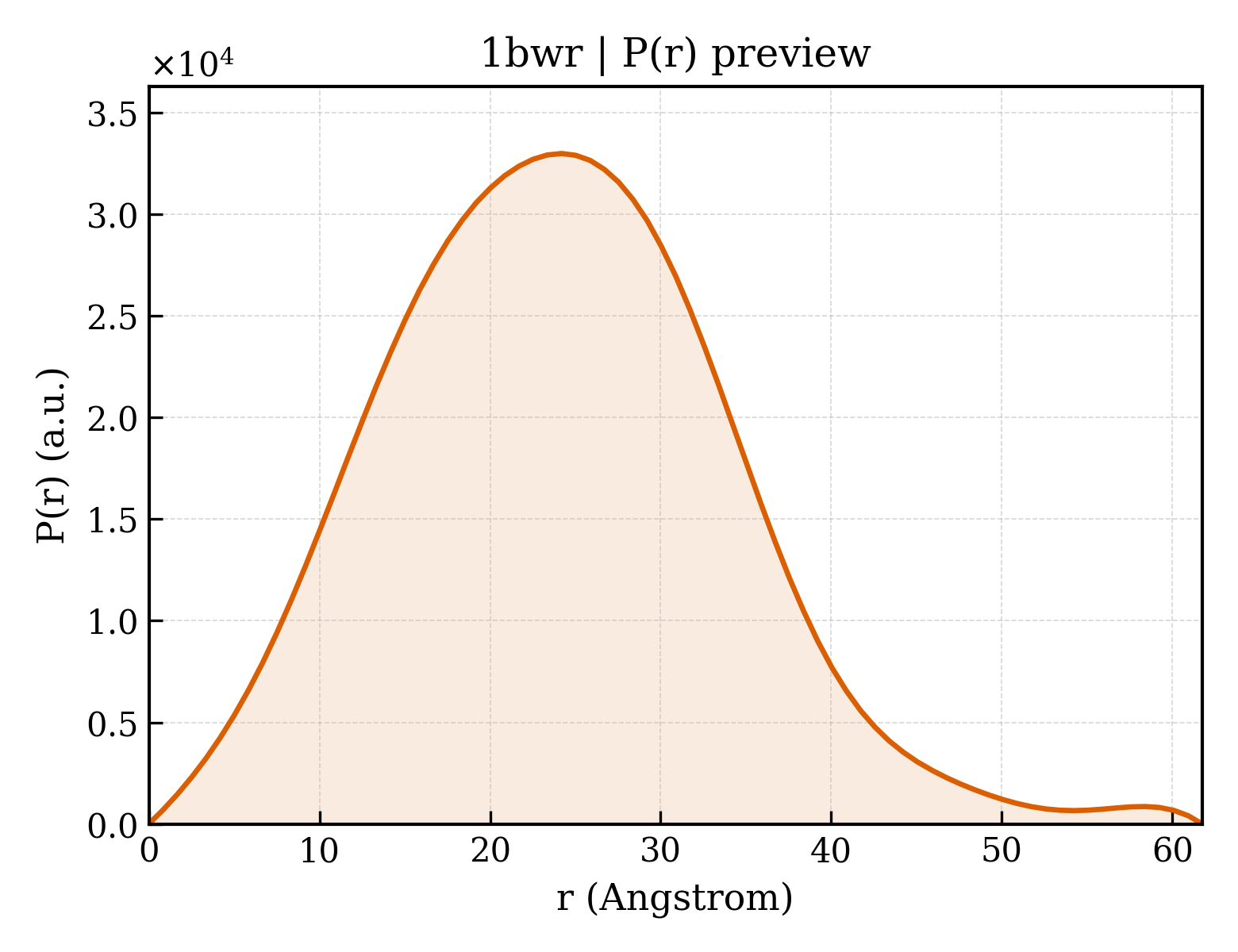

3. P(r) Analysis (GNOM)
| dmax | 61.8 Å |
| rg_real | 18.34 Å |
| rg_real_error | 0.14 Å |
| i0_real | 1.0600e+07 |
| i0_real_error | 1.0160e+05 |
| rg_reciprocal | 17.77 Å |
| i0_reciprocal | 10670000.0000 |
| total_estimate | 0.6421 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 24.2 Å |
| skewness | 0.349 |
| kurtosis | 0.215 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 6.2540 |
| highest_alpha | 2189000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.745; Stabil: 0.922; Sysdev: 0.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.385 |
