SAXSdb — 1bxb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

XYLOSE ISOMERASE

Thermus thermophilus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–387 Chain B； UniProt 1–387 Chain C； UniProt 1–387 Chain D； UniProt 1–387	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8.8；pH 8.8	Resolution 2.20 Å R-free 0.230

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	XYLA_THET8
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–387； UniProt 1–387 Author chain B； PDBConstruct 1–387； UniProt 1–387 Author chain C； PDBConstruct 1–387； UniProt 1–387 Author chain D； PDBConstruct 1–387； UniProt 1–387

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bxb
Deposition date deposition_date	1998-10-02
Structure title title	XYLOSE ISOMERASE FROM THERMUS THERMOPHILUS
Keywords keywords	ISOMERASE, XYLOSE METABOLISM; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.16 Å
Radius of gyration Rg (electron density) rg_electron	32.13 Å
Forward intensity I(0) i0	466562000.00
Molecular weight molecular_weight	175270.0 kDa
Excluded volume excluded_volume	219410 Å³
Envelope volume envelope_volume	255450 Å³
Hydration-shell volume shell_volume	61506 Å³
Envelope diameter envelope_diameter	104.0 Å
Shell Rg shell_rg	42.14 Å
Envelope Rg envelope_rg	32.25 Å
Shape Rg shape_rg	32.12 Å
Total Rg total_rg	32.90 Å
Total atoms total_atoms	12404
Residues n_residues	1548
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.5 Å
Rg (real space) rg_real	32.87 Å
Rg uncertainty (real space) rg_real_error	0.36 Å
I(0) (real space) i0_real	4.6660e+08
I(0) uncertainty (real space) i0_real_error	6.3640e+06
Rg (reciprocal space) rg_reciprocal	33.00 Å
I(0) (reciprocal space) i0_reciprocal	466600000.0000
Solution quality estimate total_estimate	0.8916
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	43.5 Å
Skewness Skewness skewness	0.108
Kurtosis Kurtosis kurtosis	-0.451
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	426400000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.919; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.866

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1bxba_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

Domain ID domain_id	d1bxbb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

Domain ID domain_id	d1bxbc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

Domain ID domain_id	d1bxbd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.15 — Xylose isomerase-like
Family Family family	c.1.15.3 — Xylose isomerase

CATH v4.4 (4 domains)

Domain ID domain_id	1bxbA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

Domain ID domain_id	1bxbB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

Domain ID domain_id	1bxbC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

Domain ID domain_id	1bxbD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	150 — Divalent-metal-dependent TIM barrel enzymes

▶

8. Citations (1)

▶

Unit-cell length a length_a	73.340 Å
Unit-cell length b length_b	144.050 Å
Unit-cell length c length_c	155.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1800
R_work r_work	0.1800
R_free r_free	0.2300

Description description	XYLOSE ISOMERASE
Molecular weight formula_weight	43965.7 kDa
EC 编号 ec_number	5.3.1.5
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	13488

XYLOSE ISOMERASE FROM THERMUS THERMOPHILUS

1. Protein Identity and Related Structures Protein Identity & Related Structures

XYLOSE ISOMERASE

State in the Current Structure

Other States of the Same Protein in the Database

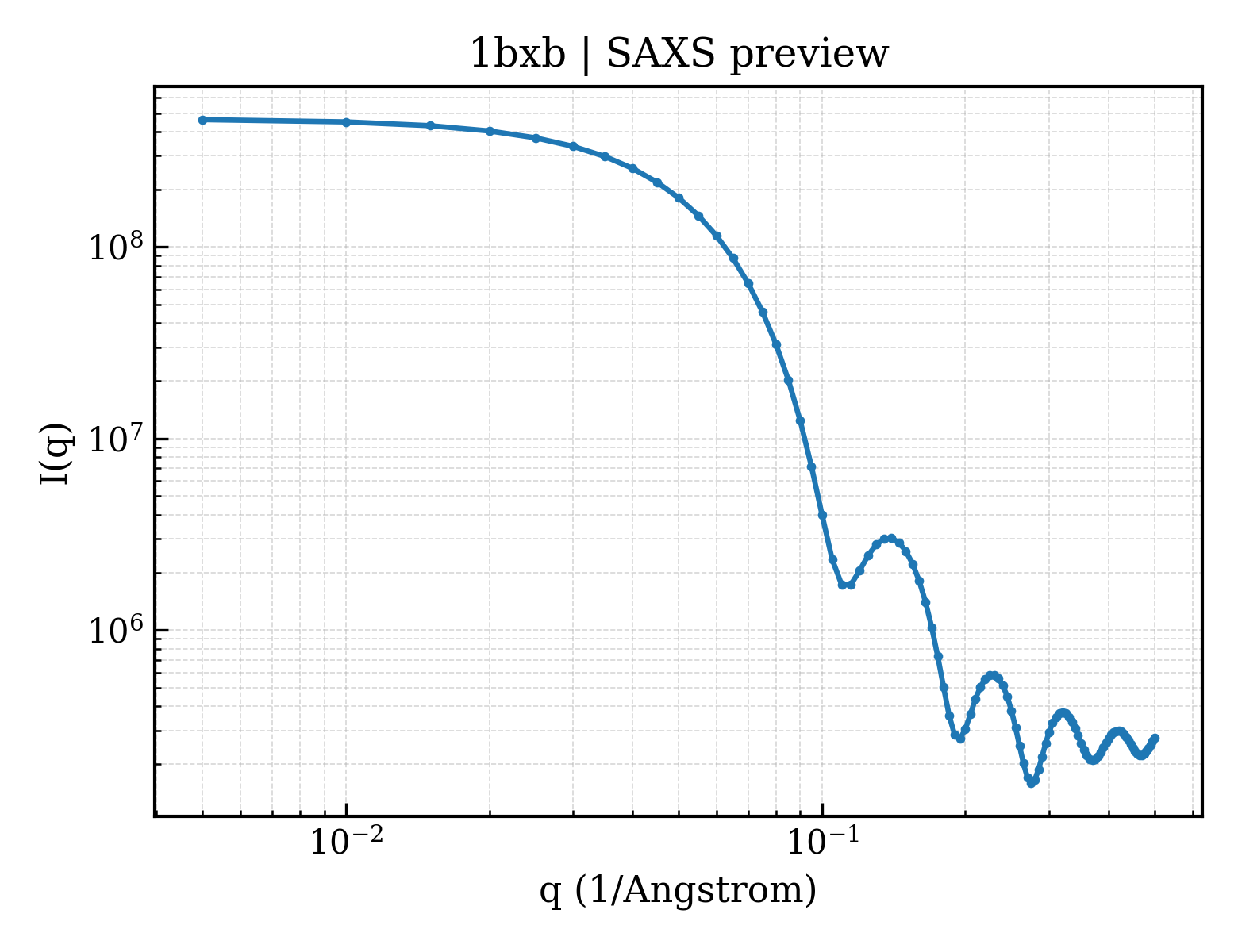

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Thermus thermophilus
NCBI Class编号 ncbi_taxonomy_id	300852
宿主生物 host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1084

fit	/app/data/saxs_computation/bx/1bxb/1bxb.fit
pddf	/app/data/pr_computation/bx/1bxb/1bxb.pr.out
profile	/app/data/saxs_computation/bx/1bxb/1bxb.dat
