SAXSdb — 1bxm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CRYPTOGEIN

Phytophthora cryptogea

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 23–118	Mutation：T1G, A2T, K13H	ERG ERGOSTEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.5；pH 4.5	Resolution 2.15 Å R-free 0.229

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BXM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BEG STRUCTURE OF FUNGAL ELICITOR, NMR, 18 STRUCTURES Deposited 1996-11-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–118（98 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1BEO BETA-CRYPTOGEIN Deposited 1996-08-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–118（98 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；4.85 M NACL, PH 7.5	Resolution 2.20 Å R-free 0.279
1LRI BETA-CRYPTOGEIN-CHOLESTEROL COMPLEX Deposited 2002-05-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–118（98 aa）	Not recorded	CL CHLORIDE ION × 1 CLR CHOLESTEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；290 K；sodium chloride, cholesterol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 290K	Resolution 1.45 Å R-free 0.188

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ELIB_PHYCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–99； UniProt 23–118

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bxm
Deposition date deposition_date	1998-10-05
Structure title title	ENGINEERED BETA-CRYPTOGEIN COMPLEXED WITH ERGOSTEROL
Keywords keywords	FUNGAL TOXIC ELICITOR MUTANT, ELICITIN, PHYTOPHTHORA, STEROL, PLANT PATHOGEN, FUNGAL TOXIC ELICITOR; FUNGAL TOXIC ELICITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.20 Å
Radius of gyration Rg (electron density) rg_electron	12.67 Å
Forward intensity I(0) i0	2399270.00
Molecular weight molecular_weight	10854.0 kDa
Excluded volume excluded_volume	13659 Å³
Envelope volume envelope_volume	14941 Å³
Hydration-shell volume shell_volume	10275 Å³
Envelope diameter envelope_diameter	42.1 Å
Shell Rg shell_rg	18.10 Å
Envelope Rg envelope_rg	12.87 Å
Shape Rg shape_rg	12.67 Å
Total Rg total_rg	13.93 Å
Total atoms total_atoms	755
Residues n_residues	99
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	45.0 Å
Rg (real space) rg_real	14.10 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	2.3990e+06
I(0) uncertainty (real space) i0_real_error	2.4820e+04
Rg (reciprocal space) rg_reciprocal	14.11 Å
I(0) (reciprocal space) i0_reciprocal	2399000.0000
Solution quality estimate total_estimate	0.8903
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.9 Å
Skewness Skewness skewness	0.040
Kurtosis Kurtosis kurtosis	-0.418
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	184600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.962

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BETA-CRYPTOGEIN
Molecular weight formula_weight	10493.0 kDa
Mutation mutation	T1G, A2T, K13H
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	812

RGTCTATQQTAAYHTLVSILSDASFNQCSTDSGYSMLTAKALPTTAQYKLMCASTACNTMIKKIVTLNPPNCDLTVPTSGLVLNVYSYANGFSNKCSSL

来源 Source

来源生物 organism	Phytophthora cryptogea
NCBI Class编号 ncbi_taxonomy_id	4786
宿主生物 host_organism	Pichia pastoris

Entity 2 Entity 2 non-polymer

Description description	ERGOSTEROL
Molecular weight formula_weight	396.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	57

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1bxma_
Class class	a — All alpha proteins
Fold Fold fold	a.134 — Fungal elicitin
Superfamily Superfamily superfamily	a.134.1 — Fungal elicitin
Family Family family	a.134.1.1 — Fungal elicitin

CATH v4.4 (1 domains)

Domain ID domain_id	1bxmA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	239 — Beta-cryptogein
Homologous superfamily homologous superfamily	10 — Elicitin domain

▶

8. Citations (4)

▶

Unit-cell length a length_a	31.130 Å
Unit-cell length b length_b	95.230 Å
Unit-cell length c length_c	65.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2290

fit	/app/data/saxs_computation/bx/1bxm/1bxm.fit
pddf	/app/data/pr_computation/bx/1bxm/1bxm.pr.out
profile	/app/data/saxs_computation/bx/1bxm/1bxm.dat

ENGINEERED BETA-CRYPTOGEIN COMPLEXED WITH ERGOSTEROL

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-CRYPTOGEIN

State in the Current Structure

Other States of the Same Protein in the Database

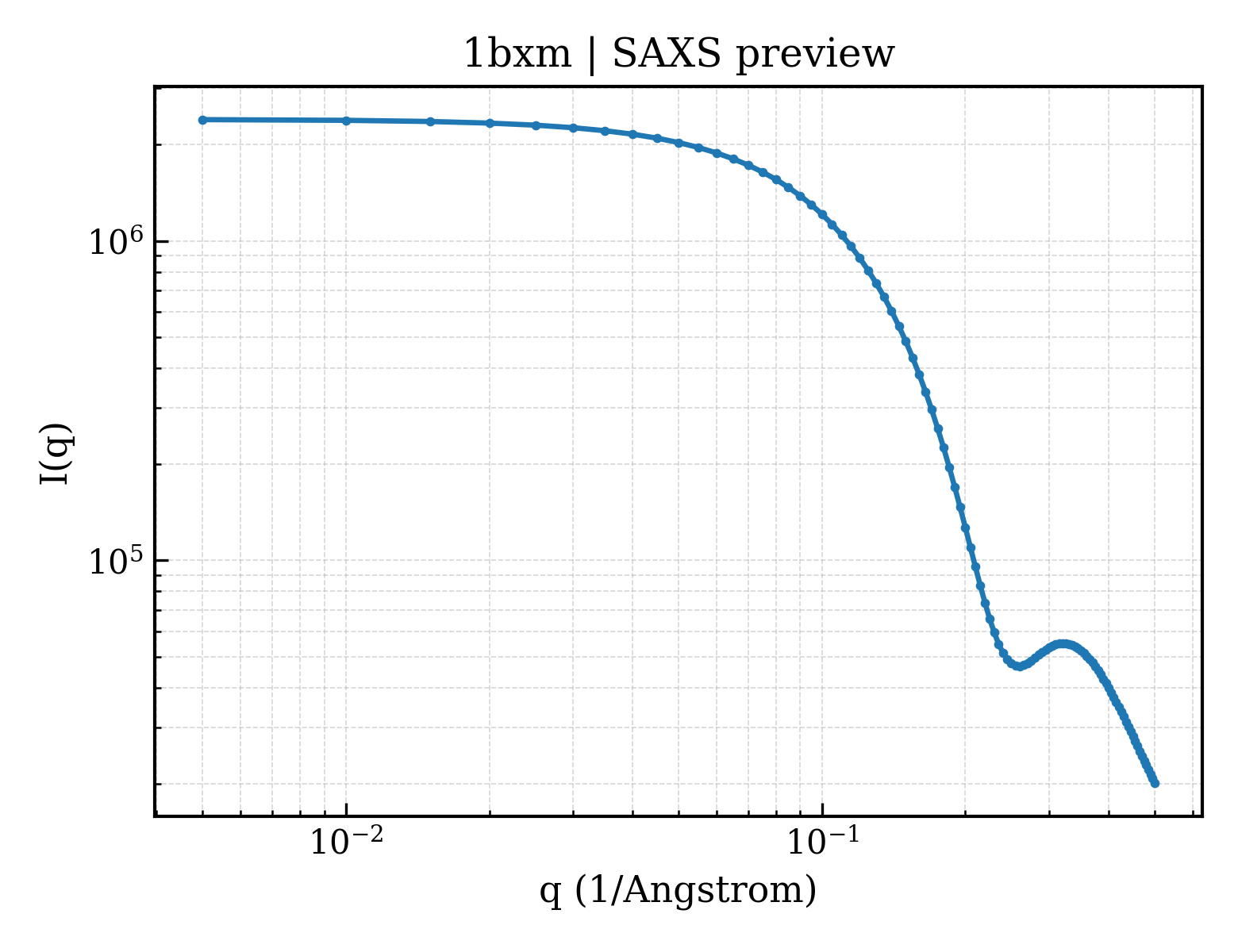

SAXS scattering curve SAXS Profile
