1beo
BETA-CRYPTOGEIN

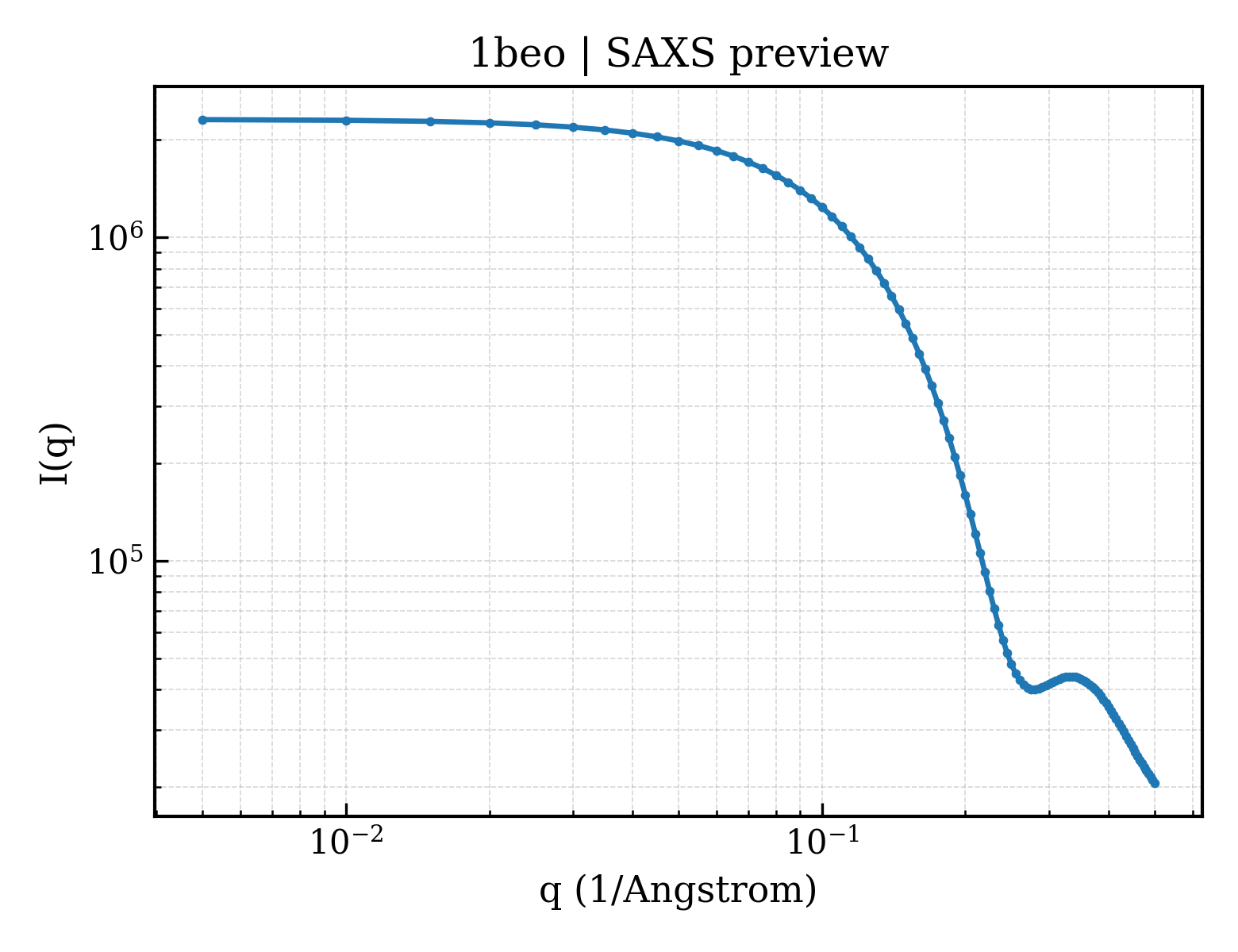

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1beo |
| deposition_date | 1996-08-02 |
| title | BETA-CRYPTOGEIN |
| keywords | FUNGAL TOXIC ELICITOR, ELICITIN, TOXIN, PLANT PATHOGEN; FUNGAL TOXIC ELICITOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.60 Å |
| rg_electron | 12.37 Å |
| i0 | 2311620.00 |
| molecular_weight | 10338.0 kDa |
| excluded_volume | 12879 ų |
| envelope_volume | 13774 ų |
| shell_volume | 9757 ų |
| envelope_diameter | 42.3 Å |
| shell_rg | 17.72 Å |
| envelope_rg | 12.57 Å |
| shape_rg | 12.35 Å |
| total_rg | 13.61 Å |
| total_atoms | 717 |
| n_residues | 98 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 44.2 Å |
| rg_real | 13.51 Å |
| rg_real_error | 0.37 Å |
| i0_real | 2.3120e+06 |
| i0_real_error | 2.7290e+04 |
| rg_reciprocal | 13.52 Å |
| i0_reciprocal | 2312000.0000 |
| total_estimate | 0.8860 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 18.5 Å |
| skewness | 0.091 |
| kurtosis | -0.371 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 198500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.847; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.974 |
