SAXSdb — 1bxs

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALDEHYDE DEHYDROGENASE

OrganismNot specified

UniProt P51977

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–500 Chain B； UniProt 1–500 Chain C； UniProt 1–500 Chain D； UniProt 1–500	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.2；pH 7.2	Resolution 2.35 Å R-free 0.259

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1BXS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5ABM Sheep aldehyde dehydrogenase 1A1 Deposited 2015-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain C 2–501（500 aa） Fragment：UNP RESIDUES 2-501 Chain D 2–501（500 aa） Fragment：UNP RESIDUES 2-501	Not recorded	TXE [[(2R,3S,4R,5R)-5-[(3R)-3-aminocarbonyl-3,4-dihydro-2H-pyridin-1-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanidyl-ph osphoryl] [(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphate × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；100 MM BIS-TRIS, PH 6.0, 4.5-7% PEG5000, 150=225MM MGCL2, 4DEGREE	Resolution 1.70 Å R-free 0.203
5ABM Sheep aldehyde dehydrogenase 1A1 Deposited 2015-08-07	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–501（500 aa） Fragment：UNP RESIDUES 2-501 Chain B 2–501（500 aa） Fragment：UNP RESIDUES 2-501	Not recorded	TXE [[(2R,3S,4R,5R)-5-[(3R)-3-aminocarbonyl-3,4-dihydro-2H-pyridin-1-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanidyl-ph osphoryl] [(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphate × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；100 MM BIS-TRIS, PH 6.0, 4.5-7% PEG5000, 150=225MM MGCL2, 4DEGREE	Resolution 1.70 Å R-free 0.203
5AC0 ovis aries Aldehyde Dehydrogenase 1A1 in complex with a duocarmycin analog Deposited 2015-08-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–501（501 aa） Chain B 1–501（501 aa）	Not recorded	NAD NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4 K9P 1-[(1S)-1-methyl-5-oxidanyl-1,2-dihydrobenzo[e]indol-3-yl]hexan-1-one × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å R-free 0.197
5AC1 Sheep aldehyde dehydrogenase 1A1 with duocarmycin analog inhibitor Deposited 2015-08-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–501（501 aa） Chain B 1–501（501 aa）	Not recorded	K9P 1-[(1S)-1-methyl-5-oxidanyl-1,2-dihydrobenzo[e]indol-3-yl]hexan-1-one × 4 TXE [[(2R,3S,4R,5R)-5-[(3R)-3-aminocarbonyl-3,4-dihydro-2H-pyridin-1-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanidyl-ph osphoryl] [(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphate × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；100 MM BIS-TRIS, PH 6.0, 4.5-7% PEG5000, 150=225MM MGCL2, 4DEGREE	Resolution 2.08 Å R-free 0.265
5AC1 Sheep aldehyde dehydrogenase 1A1 with duocarmycin analog inhibitor Deposited 2015-08-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain C 1–501（501 aa） Chain D 1–501（501 aa）	Not recorded	K9P 1-[(1S)-1-methyl-5-oxidanyl-1,2-dihydrobenzo[e]indol-3-yl]hexan-1-one × 4 TXE [[(2R,3S,4R,5R)-5-[(3R)-3-aminocarbonyl-3,4-dihydro-2H-pyridin-1-yl]-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanidyl-ph osphoryl] [(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methyl phosphate × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 277 K；100 MM BIS-TRIS, PH 6.0, 4.5-7% PEG5000, 150=225MM MGCL2, 4DEGREE	Resolution 2.08 Å R-free 0.265

3 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AL1A1_SHEEP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–501； UniProt 1–500 Author chain B； PDBConstruct 2–501； UniProt 1–500 Author chain C； PDBConstruct 2–501； UniProt 1–500 Author chain D； PDBConstruct 2–501； UniProt 1–500

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bxs
Deposition date deposition_date	1998-10-08
Structure title title	SHEEP LIVER CLASS 1 ALDEHYDE DEHYDROGENASE WITH NAD BOUND
Keywords keywords	ALDEHYDE DEHYDROGENASE, RETINAL, CLASS 1, TETRAMER, NAD, CYTOSOLIC, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.65 Å
Radius of gyration Rg (electron density) rg_electron	36.03 Å
Forward intensity I(0) i0	704365000.00
Molecular weight molecular_weight	217880.0 kDa
Excluded volume excluded_volume	272750 Å³
Envelope volume envelope_volume	318860 Å³
Hydration-shell volume shell_volume	69438 Å³
Envelope diameter envelope_diameter	111.0 Å
Shell Rg shell_rg	45.28 Å
Envelope Rg envelope_rg	36.09 Å
Shape Rg shape_rg	36.03 Å
Total Rg total_rg	36.52 Å
Total atoms total_atoms	15316
Residues n_residues	1976
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

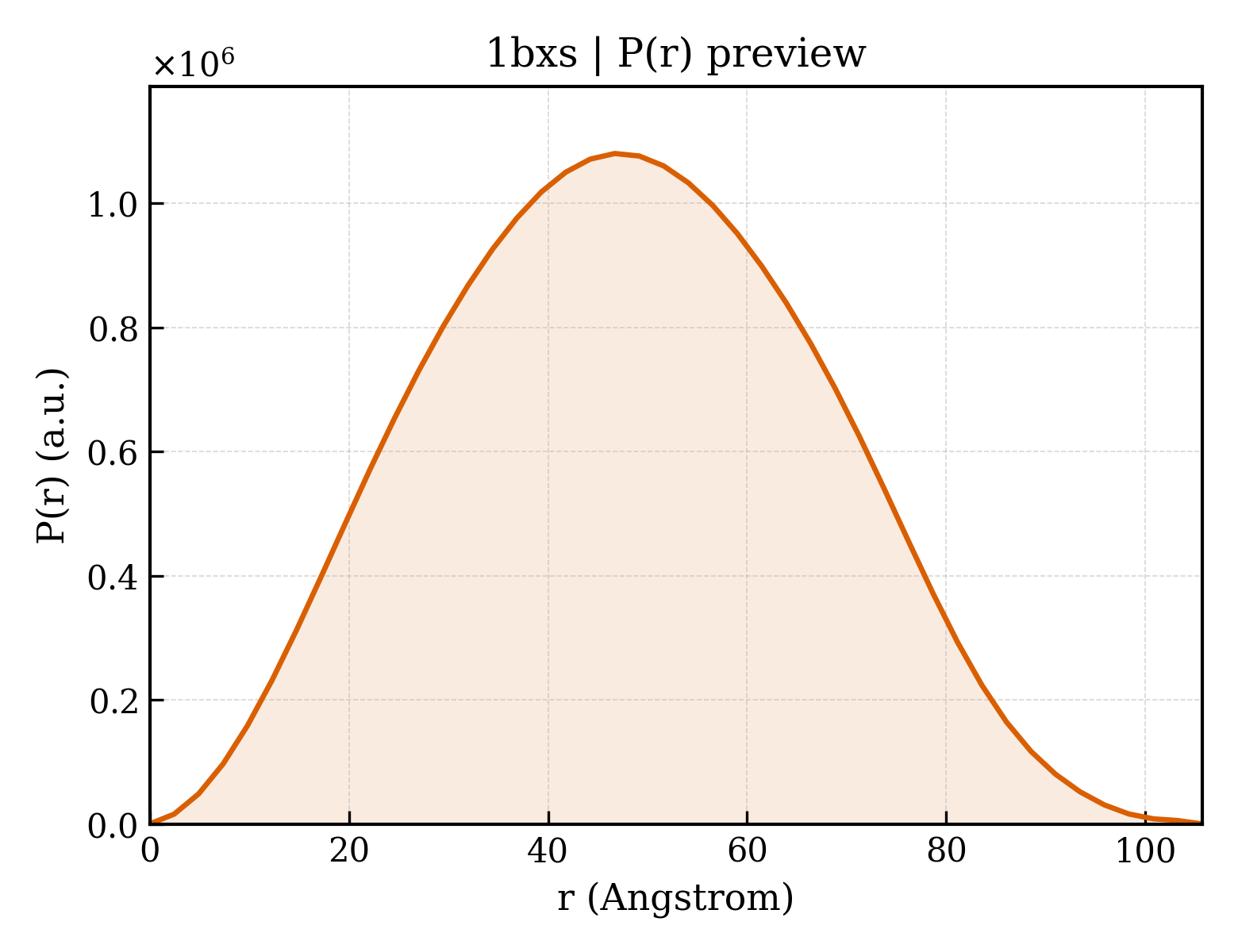

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	105.7 Å
Rg (real space) rg_real	36.39 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	7.0440e+08
I(0) uncertainty (real space) i0_real_error	1.1170e+07
Rg (reciprocal space) rg_reciprocal	36.55 Å
I(0) (reciprocal space) i0_reciprocal	704500000.0000
Solution quality estimate total_estimate	0.8823
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	46.7 Å
Skewness Skewness skewness	0.072
Kurtosis Kurtosis kurtosis	-0.585
Angular range angular_range	— – 0.2150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	157300000.0000
Real-space data points n_real_points	44
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.557

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ALDEHYDE DEHYDROGENASE
Molecular weight formula_weight	54885.6 kDa
EC 编号 ec_number	1.2.1.3
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	15444

MSSSAMPDVPAPLTNLQFKYTKIFINNEWHSSVSGKKFPVFNPATEEKLCEVEEGDKEDVDKAVKAARQAFQIGSPWRTMDASERGRLLNKLADLIERDRLLLATMEAMNGGKLFSNAYLMDLGGCIKTLRYCAGWADKIQGRTIPMDGNFFTYTRSEPVGVCGQIIPWNFPLLMFLWKIGPALSCGNTVVVKPAEQTPLTALHMGSLIKEAGFPPGVVNIVPGYGPTAGAAISSHMDVDKVAFTGSTEVGKLIKEAAGKSNLKRVSLELGGKSPCIVFADADLDNAVEFAHQGVFYHQGQCCIAASRLFVEESIYDEFVRRSVERAKKYVLGNPLTPGVSQGPQIDKEQYEKILDLIESGKKEGAKLECGGGPWGNKGYFIQPTVFSDVTDDMRIAKEEIFGPVQQIMKFKSLDDVIKRANNTFYGLSAGIFTNDIDKAITVSSALQSGTVWVNCYSVVSAQCPFGGFKMSGNGRELGEYGFHEYTEVKTVTIKISQKNS

Entity 2 Entity 2 non-polymer

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	128

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1bxsa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d1bxsb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d1bxsc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

Domain ID domain_id	d1bxsd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.1 — ALDH-like

CATH v4.4 (8 domains)

Domain ID domain_id	1bxsA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	1bxsA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	1bxsB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	1bxsB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	1bxsC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	1bxsC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

Domain ID domain_id	1bxsD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	605 — Aldehyde Dehydrogenase; Chain A, domain 1
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 1

Domain ID domain_id	1bxsD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	309 — Aldehyde Dehydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Aldehyde Dehydrogenase; Chain A, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	80.689 Å
Unit-cell length b length_b	87.625 Å
Unit-cell length c length_c	90.840 Å
Unit-cell angle α angle_alpha	110.47 °
Unit-cell angle β angle_beta	105.63 °
Unit-cell angle γ angle_gamma	103.56 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2590

fit	/app/data/saxs_computation/bx/1bxs/1bxs.fit
pddf	/app/data/pr_computation/bx/1bxs/1bxs.pr.out
profile	/app/data/saxs_computation/bx/1bxs/1bxs.dat
