1bxv
REDUCED PLASTOCYANIN FROM SYNECHOCOCCUS SP.

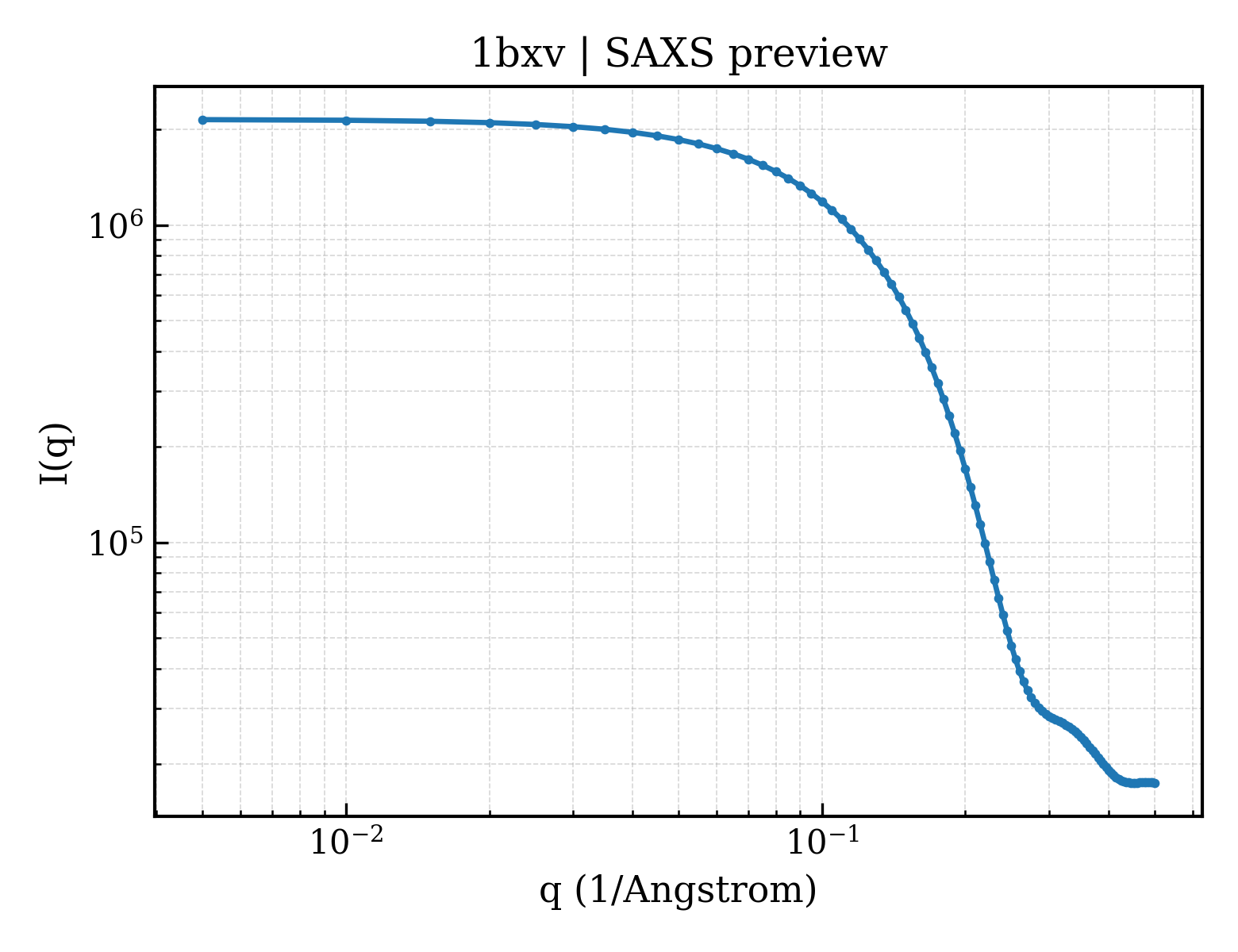

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1bxv |
| deposition_date | 1998-10-09 |
| title | REDUCED PLASTOCYANIN FROM SYNECHOCOCCUS SP. |
| keywords | COPPER PROTEIN, ELECTRON TRANSFER; COPPER PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.30 Å |
| rg_electron | 12.02 Å |
| i0 | 2149800.00 |
| molecular_weight | 9911.0 kDa |
| excluded_volume | 12277 ų |
| envelope_volume | 13148 ų |
| shell_volume | 9530 ų |
| envelope_diameter | 39.3 Å |
| shell_rg | 17.40 Å |
| envelope_rg | 12.22 Å |
| shape_rg | 12.00 Å |
| total_rg | 13.31 Å |
| total_atoms | 694 |
| n_residues | 91 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 41.9 Å |
| rg_real | 13.21 Å |
| rg_real_error | 0.21 Å |
| i0_real | 2.1500e+06 |
| i0_real_error | 2.4470e+04 |
| rg_reciprocal | 13.22 Å |
| i0_reciprocal | 2150000.0000 |
| total_estimate | 0.8990 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.127 |
| kurtosis | -0.446 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 360400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.967 |
