1by0
N-TERMINAL LEUCINE-REPEAT REGION OF HEPATITIS DELTA ANTIGEN

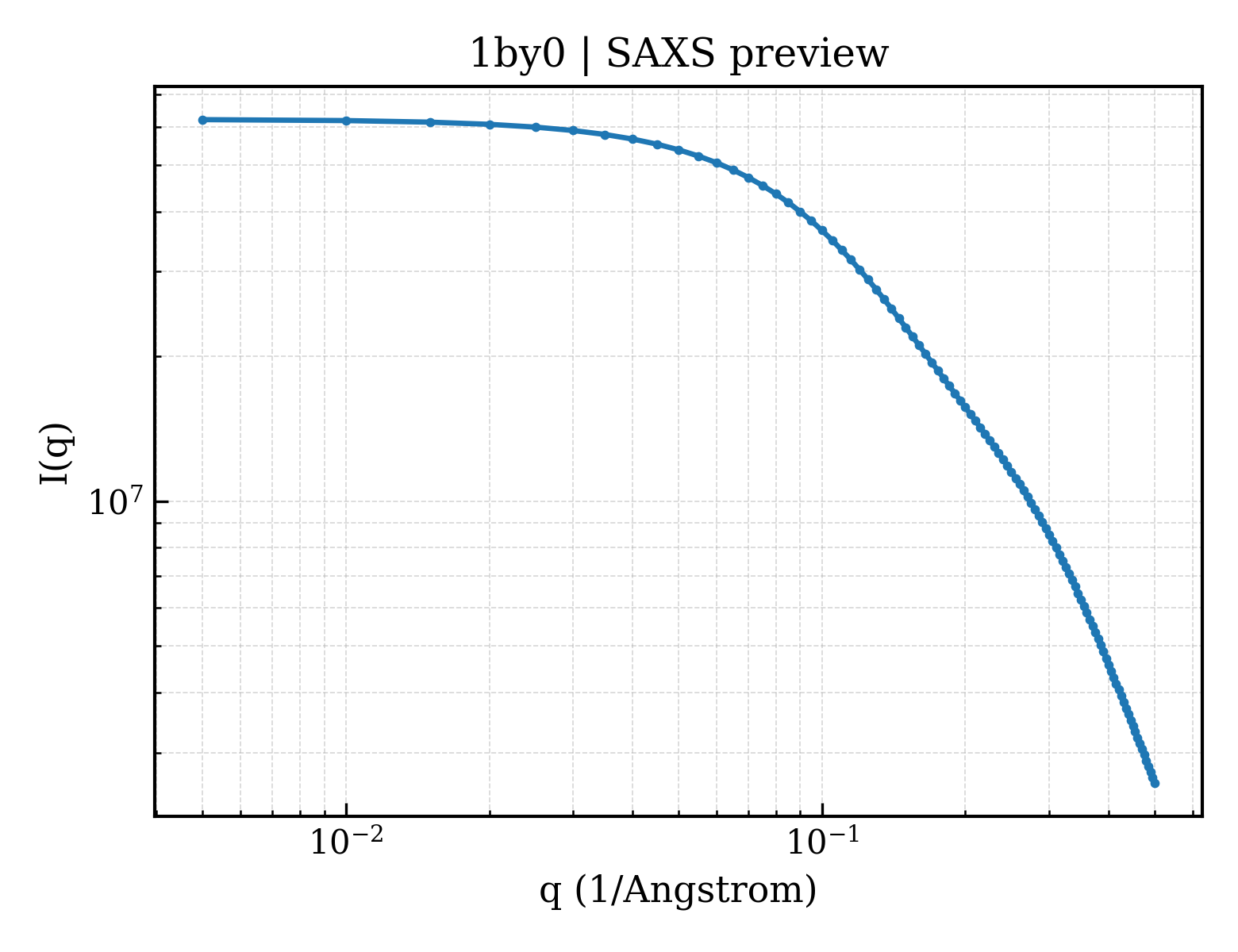

SAXS Profile

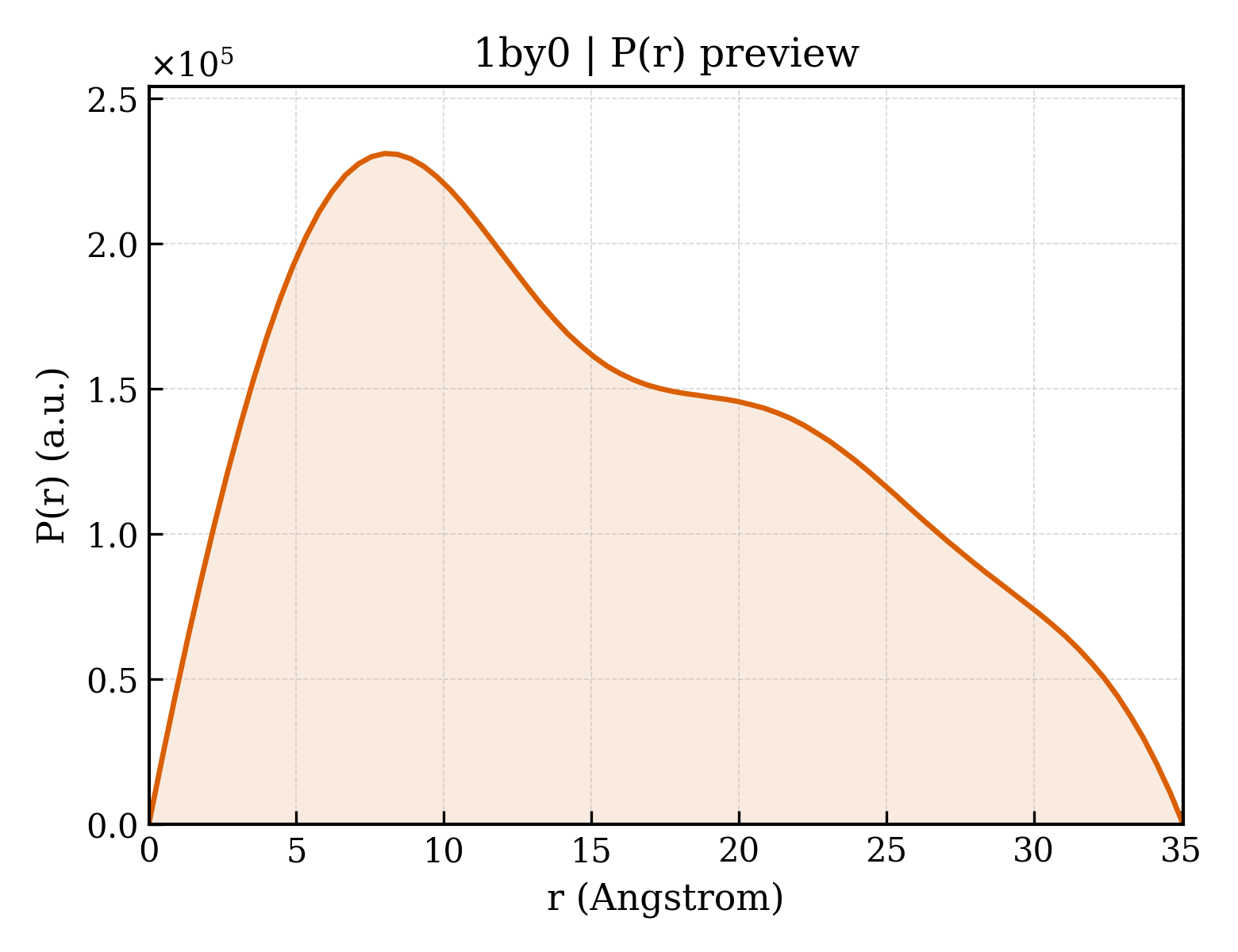

P(r) Distribution
1. Structure Basics
| entry_id | 1by0 |
| deposition_date | 1998-10-22 |
| title | N-TERMINAL LEUCINE-REPEAT REGION OF HEPATITIS DELTA ANTIGEN |
| keywords | HEPATITIS DELTA ANTIGEN, HELIX, SOLUTION STRUCTURE, RNA BINDING, RNA BINDING PROTEIN; RNA BINDING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.00 Å |
| rg_electron | 13.24 Å |
| i0 | 62237100.00 |
| molecular_weight | 69363.0 kDa |
| excluded_volume | 89032 ų |
| envelope_volume | 16674 ų |
| shell_volume | 9409 ų |
| envelope_diameter | 58.9 Å |
| shell_rg | 20.93 Å |
| envelope_rg | 17.62 Å |
| shape_rg | 13.29 Å |
| total_rg | 13.41 Å |
| total_atoms | 10320 |
| n_residues | 540 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.1 Å |
| rg_real | 12.04 Å |
| rg_real_error | 0.07 Å |
| i0_real | 5.9360e+07 |
| i0_real_error | 5.0570e+05 |
| rg_reciprocal | 13.39 Å |
| i0_reciprocal | 62240000.0000 |
| total_estimate | 0.5870 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 8.0 Å |
| skewness | 0.380 |
| kurtosis | -0.864 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 4.1940 |
| highest_alpha | 5797.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.002; Oscil: 0.849; Stabil: 0.956; Sysdev: 0.000; Positv: 1.000; Valcen: 0.228; Smooth: 0.000 |
