1by2
STRUCTURE OF M2BP SCAVENGER RECEPTOR CYSTEINE-RICH DOMAIN

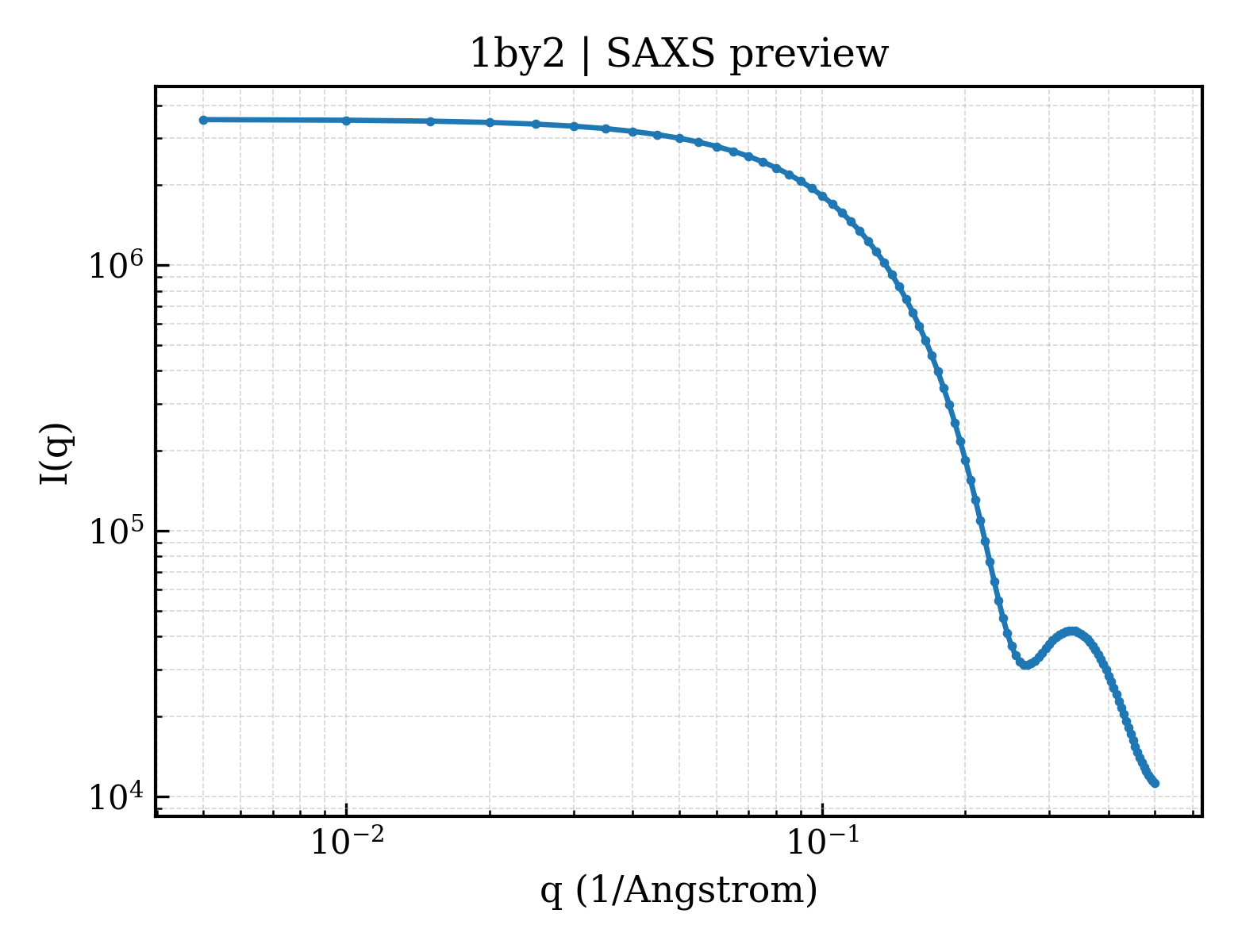

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1by2 |
| deposition_date | 1998-10-23 |
| title | STRUCTURE OF M2BP SCAVENGER RECEPTOR CYSTEINE-RICH DOMAIN |
| keywords | EXTRACELLULAR MODULE, SCAVENGER RECEPTOR, TUMOUR-ASSOCIATED ANTIGEN, EXTRACELLULAR MATRIX, GLYCOSYLATED PROTEIN; EXTRACELLULAR MODULE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.99 Å |
| rg_electron | 12.68 Å |
| i0 | 3534580.00 |
| molecular_weight | 12128.0 kDa |
| excluded_volume | 14694 ų |
| envelope_volume | 16304 ų |
| shell_volume | 10894 ų |
| envelope_diameter | 43.7 Å |
| shell_rg | 18.57 Å |
| envelope_rg | 13.08 Å |
| shape_rg | 12.67 Å |
| total_rg | 13.91 Å |
| total_atoms | 846 |
| n_residues | 112 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 47.1 Å |
| rg_real | 13.88 Å |
| rg_real_error | 0.32 Å |
| i0_real | 3.5350e+06 |
| i0_real_error | 4.0090e+04 |
| rg_reciprocal | 13.89 Å |
| i0_reciprocal | 3535000.0000 |
| total_estimate | 0.8674 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.1 Å |
| skewness | 0.131 |
| kurtosis | -0.346 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1004000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.758; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.998 |
