1by6
Peptide of human apolipoprotein C-II

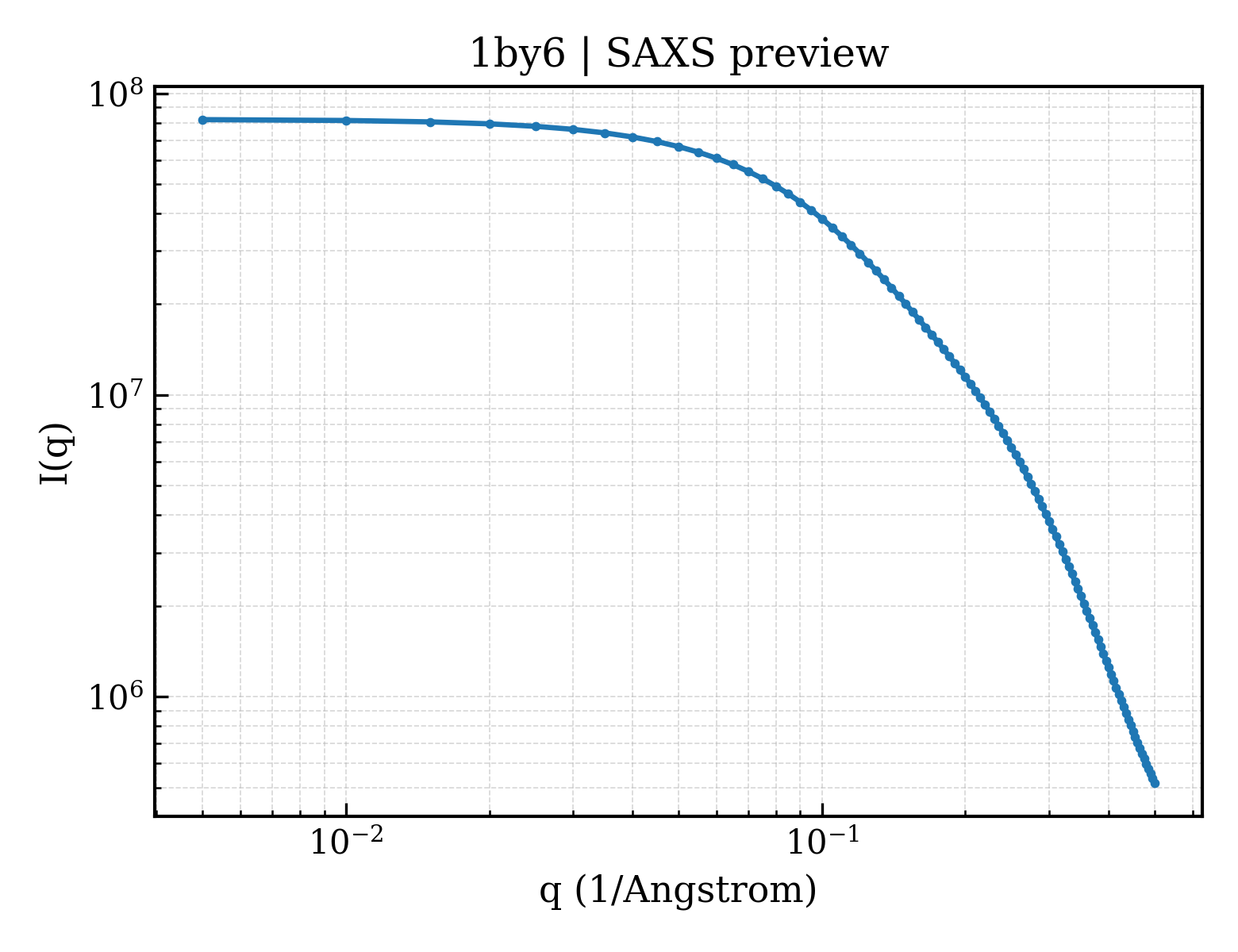

SAXS Profile

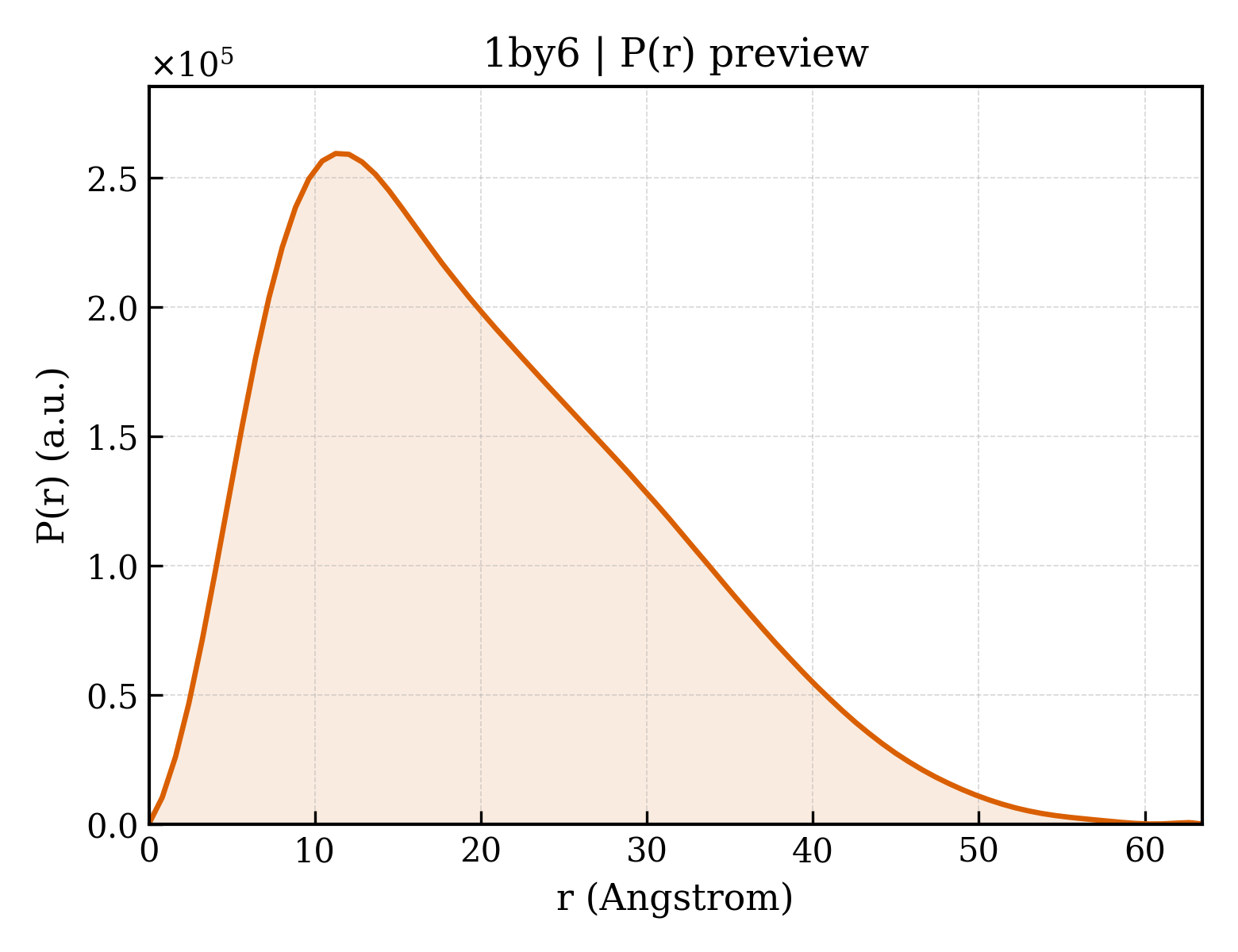

P(r) Distribution
1. Structure Basics
| entry_id | 1by6 |
| deposition_date | 1999-12-03 |
| title | Peptide of human apolipoprotein C-II |
| keywords | APOLIPOPROTEIN, AMPHIPATHIC HELIX, LIPID ASSOCIATION, LPL ACTIVATION, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.71 Å |
| rg_electron | 15.81 Å |
| i0 | 82002700.00 |
| molecular_weight | 75343.0 kDa |
| excluded_volume | 94550 ų |
| envelope_volume | 24835 ų |
| shell_volume | 12920 ų |
| envelope_diameter | 66.6 Å |
| shell_rg | 22.33 Å |
| envelope_rg | 18.29 Å |
| shape_rg | 15.79 Å |
| total_rg | 16.20 Å |
| total_atoms | 10583 |
| n_residues | 684 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 63.5 Å |
| rg_real | 16.01 Å |
| rg_real_error | 0.71 Å |
| i0_real | 8.2000e+07 |
| i0_real_error | 1.1820e+06 |
| rg_reciprocal | 15.98 Å |
| i0_reciprocal | 82000000.0000 |
| total_estimate | 0.6108 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 11.2 Å |
| skewness | 0.628 |
| kurtosis | -0.207 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 260800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.302; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.030; Smooth: 0.000 |
