1byl
BLEOMYCIN RESISTANCE PROTEIN FROM STREPTOALLOTEICHUS HINDUSTANUS

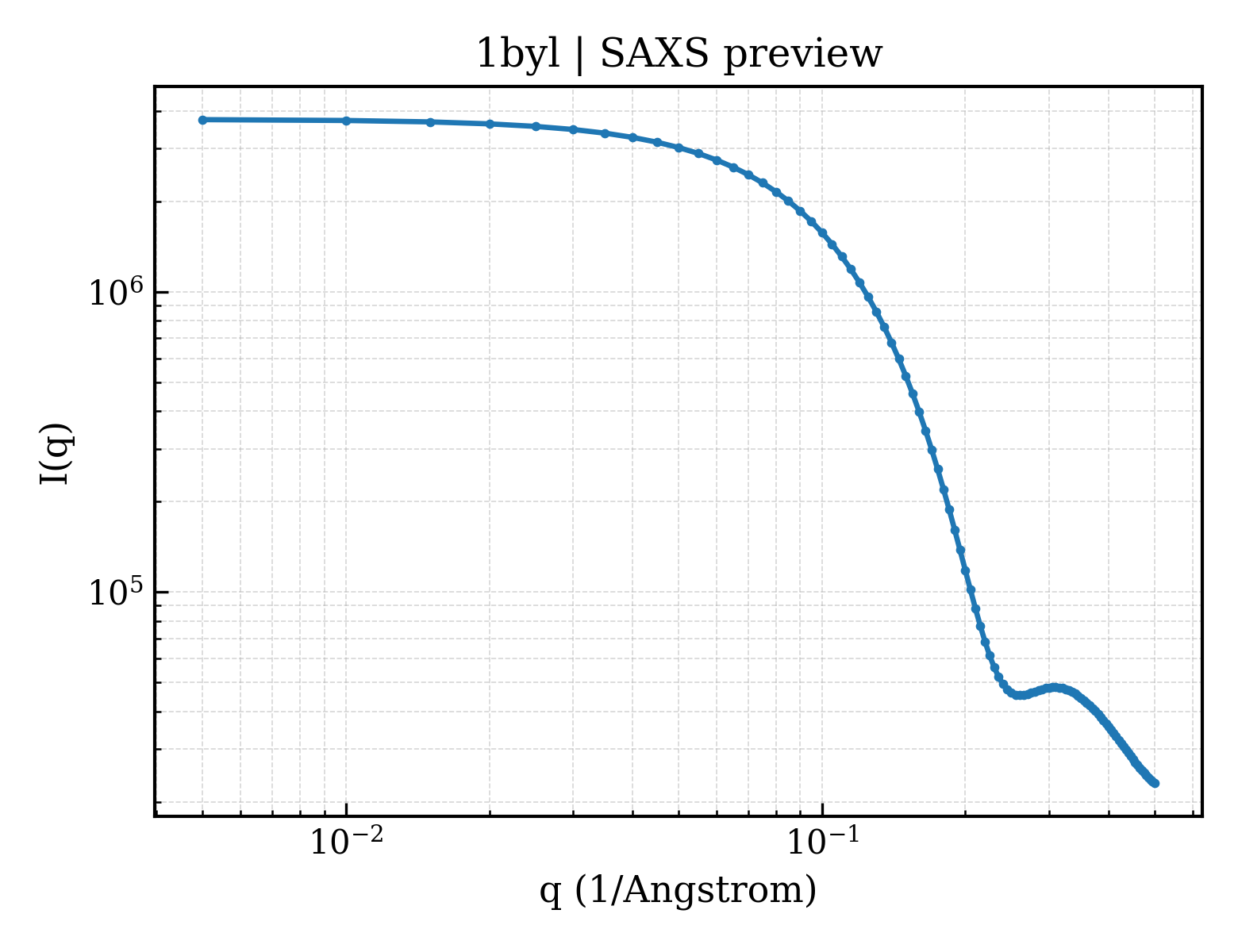

SAXS Profile

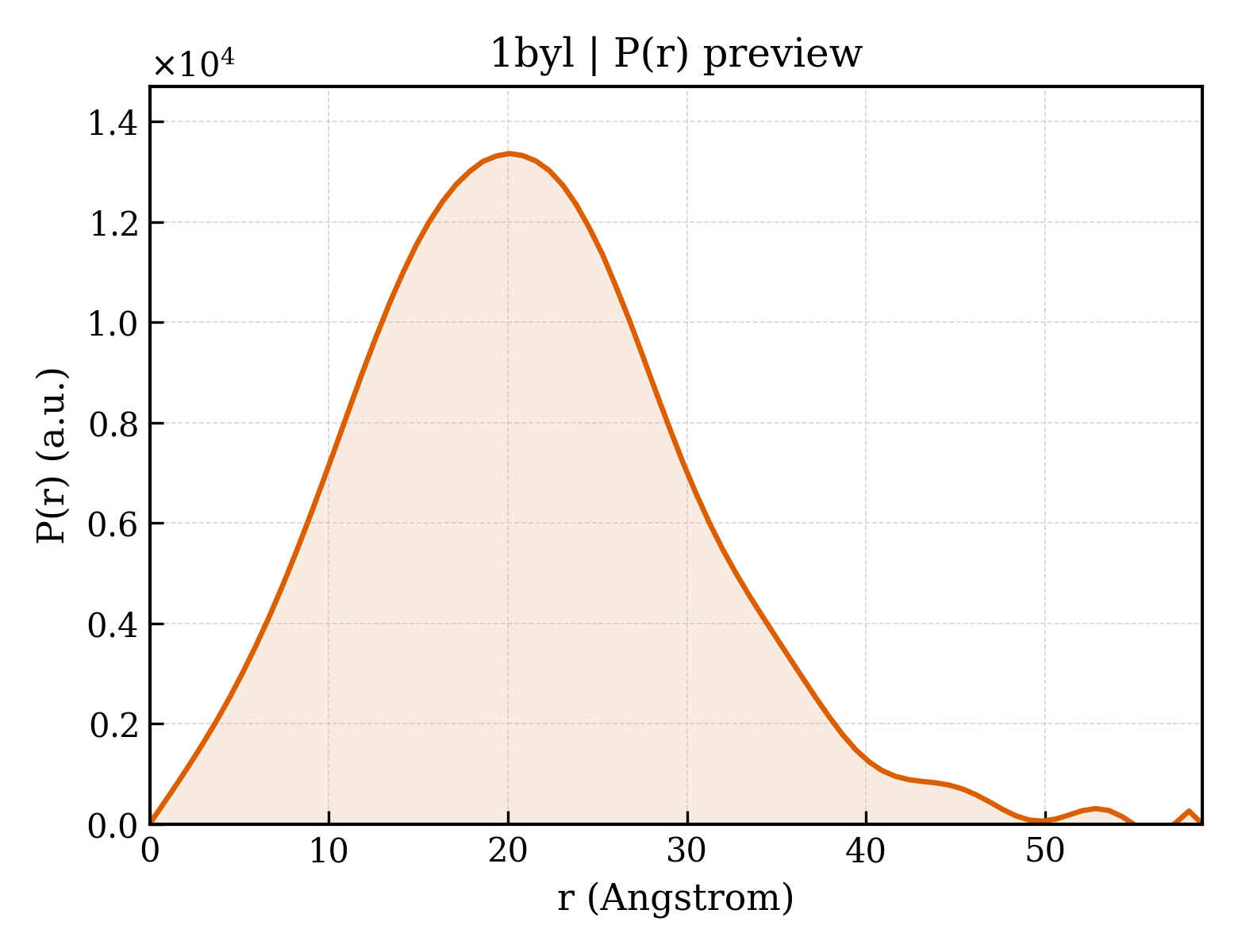

P(r) Distribution
1. Structure Basics
| entry_id | 1byl |
| deposition_date | 1998-10-17 |
| title | BLEOMYCIN RESISTANCE PROTEIN FROM STREPTOALLOTEICHUS HINDUSTANUS |
| keywords | ANTIBIOTIC RESISTANCE, BLEOMYCIN, DRUG SEQUESTERING, CHAIN SWAPPING, ANTIBIOTIC; ANTIBIOTIC |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.11 Å |
| rg_electron | 14.90 Å |
| i0 | 3750930.00 |
| molecular_weight | 13542.0 kDa |
| excluded_volume | 16875 ų |
| envelope_volume | 20149 ų |
| shell_volume | 11935 ų |
| envelope_diameter | 60.0 Å |
| shell_rg | 20.31 Å |
| envelope_rg | 15.73 Å |
| shape_rg | 14.85 Å |
| total_rg | 16.19 Å |
| total_atoms | 959 |
| n_residues | 122 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.8 Å |
| rg_real | 16.09 Å |
| rg_real_error | 0.52 Å |
| i0_real | 3.7510e+06 |
| i0_real_error | 4.9160e+04 |
| rg_reciprocal | 16.09 Å |
| i0_reciprocal | 3751000.0000 |
| total_estimate | 0.7476 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 20.1 Å |
| skewness | 0.390 |
| kurtosis | 0.141 |
| angular_range | — – 0.4950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 609500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.594; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.000 |
