1byo
WILD-TYPE PLASTOCYANIN FROM SILENE
SAXS Profile

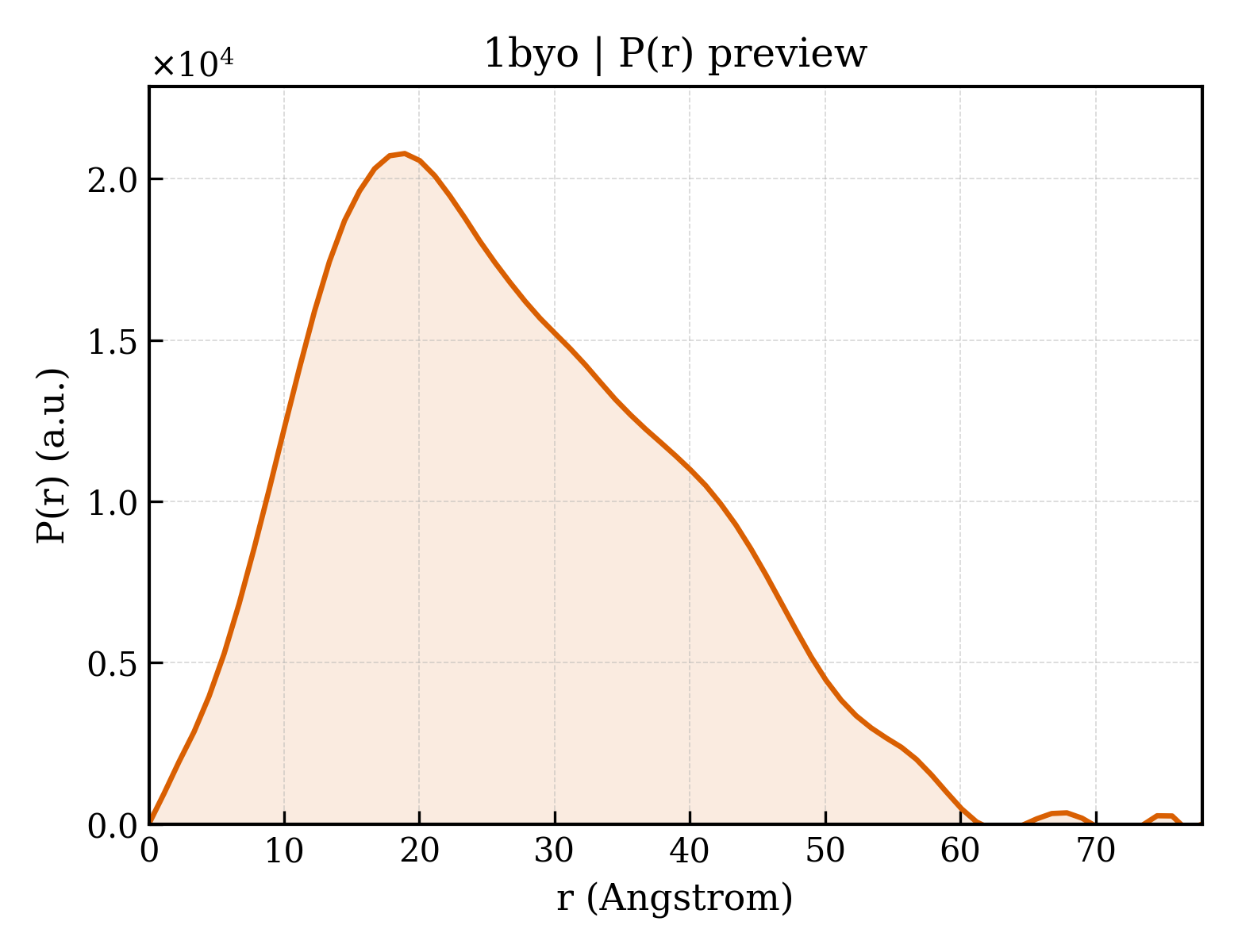

P(r) Distribution
1. Structure Basics
| entry_id | 1byo |
| deposition_date | 1998-10-19 |
| title | WILD-TYPE PLASTOCYANIN FROM SILENE |
| keywords | ELECTRON TRANSFER, PHOTOSYNTHESIS, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.47 Å |
| rg_electron | 19.91 Å |
| i0 | 8145980.00 |
| molecular_weight | 20894.0 kDa |
| excluded_volume | 25935 ų |
| envelope_volume | 30782 ų |
| shell_volume | 14009 ų |
| envelope_diameter | 66.2 Å |
| shell_rg | 24.23 Å |
| envelope_rg | 19.82 Å |
| shape_rg | 19.90 Å |
| total_rg | 20.58 Å |
| total_atoms | 1464 |
| n_residues | 198 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 77.9 Å |
| rg_real | 20.57 Å |
| rg_real_error | 0.84 Å |
| i0_real | 8.1460e+06 |
| i0_real_error | 1.2630e+05 |
| rg_reciprocal | 20.55 Å |
| i0_reciprocal | 8146000.0000 |
| total_estimate | 0.6978 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 18.9 Å |
| skewness | 0.392 |
| kurtosis | -0.565 |
| angular_range | — – 0.3900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1903000.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.524; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.506; Smooth: 0.000 |
