SAXSdb — 1bzy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HYPOXANTHINE-GUANINE PHOSPHORIBOSYLTRANSFERASE

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	MAGNESIUM ION × 8 PHOSPHORIC ACID MONO-[5-(2-AMINO-4-OXO-4,5-DIHYDRO-3H-PYRROLO[3,2-D]PYRIMIDIN-7-YL)-3,4-DIHYDROXY-PYRROLIDIN-2-YLMETHYL] ESTER × 4 PYROPHOSPHATE 2- × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HPRT_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–217； UniProt 1–217 Author chain B； PDBConstruct 1–217； UniProt 1–217 Author chain C； PDBConstruct 1–217； UniProt 1–217 Author chain D； PDBConstruct 1–217； UniProt 1–217

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1bzy
Deposition date deposition_date	1998-11-05
Structure title title	HUMAN HGPRTASE WITH TRANSITION STATE INHIBITOR
Keywords keywords	;PHOSPHORIBOSYLTRANSFERASE, IMMUCILLIN, LESCH-NYHAN, HGPRT, TRANSITION STATE, MAGNESIUM, PYROPHOSPHATE, OXOCARBENIUM ION, NEIGHBORING GROUP PARTICIPATION ;; PHOSPHORIBOSYLTRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1bzy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1bzy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

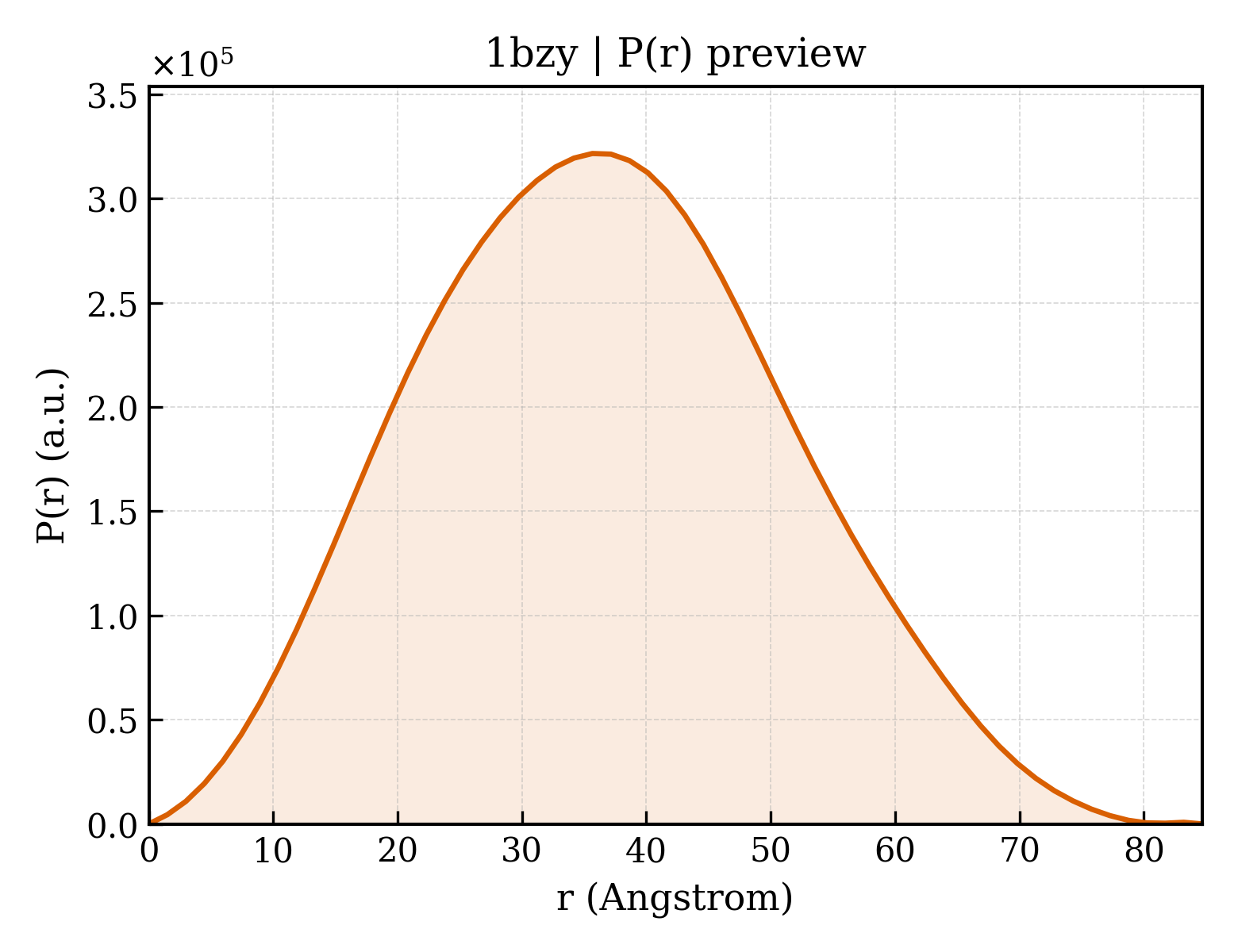

1bzy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	26.73 Å
Total Rg	27.67 Å
Atom count	6920
Residues	856
Excluded volume	123650 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1bzy__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	HYPOXANTHINE-GUANINE PHOSPHORIBOSYLTRANSFERASE
Molecular weight formula_weight	24481.2 kDa
EC 编号 ec_number	2.4.2.8
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	7216

ATRSPGVVISDDEPGYDLDLFCIPNHYAEDLERVFIPHGLIMDRTERLARDVMKEMGGHHIVALCVLKGGYKFFADLLDYIKALNRNSDRSIPMTVDFIRLKSYCNDQSTGDIKVIGGDDLSTLTGKNVLIVEDIIDTGKTMQTLLSLVRQYNPKMVKVASLLVKRTPRSVGYKPDFVGFEIPDKFVVGYALDYNEYFRDLNHVCVISETGKAKYKA

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 non-polymer

Description description	PHOSPHORIC ACID MONO-[5-(2-AMINO-4-OXO-4,5-DIHYDRO-3H-PYRROLO[3,2-D]PYRIMIDIN-7-YL)-3,4-DIHYDROXY-PYRROLIDIN-2-YLMETHYL] ESTER
Molecular weight formula_weight	361.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	296

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1bzya_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1bzyb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1bzyc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1bzyd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

CATH v4.4 (4 domains)

Domain ID domain_id	1bzyA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1bzyB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1bzyC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1bzyD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

▶

Unit-cell length a length_a	52.960 Å
Unit-cell length b length_b	102.010 Å
Unit-cell length c length_c	144.270 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1900
R_work r_work	0.1900
R_free r_free	0.2490

HUMAN HGPRTASE WITH TRANSITION STATE INHIBITOR
