1c03
CRYSTAL STRUCTURE OF YPD1P (TRICLINIC FORM)
SAXS Profile

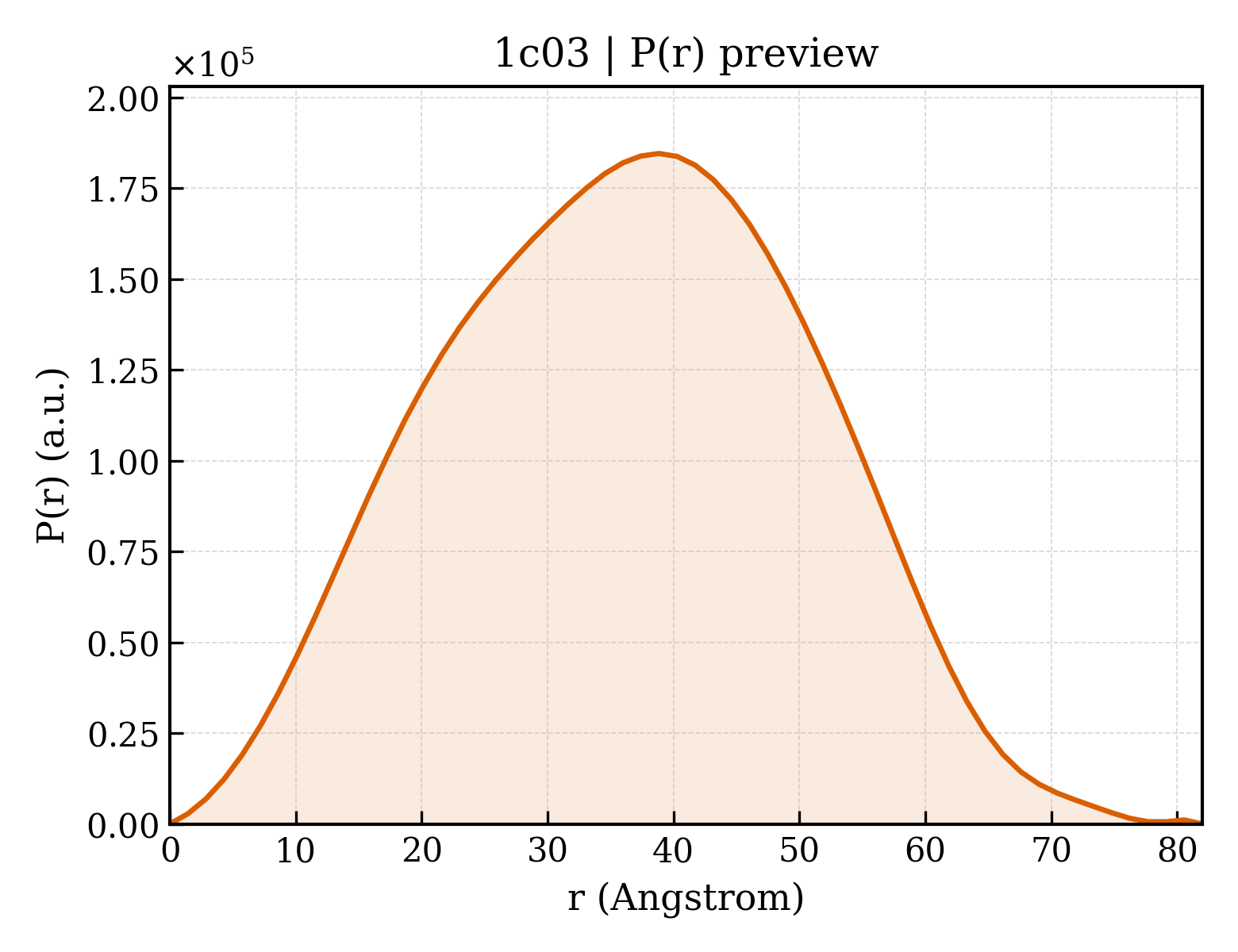

P(r) Distribution
1. Structure Basics
| entry_id | 1c03 |
| deposition_date | 1999-07-14 |
| title | CRYSTAL STRUCTURE OF YPD1P (TRICLINIC FORM) |
| keywords | FOUR HELICAL BUNDLE, SIGNAL TRANSDUCTION, SIGNALING PROTEIN; SIGNALING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.83 Å |
| rg_electron | 26.72 Å |
| i0 | 90871100.00 |
| molecular_weight | 74115.0 kDa |
| excluded_volume | 92604 ų |
| envelope_volume | 116470 ų |
| shell_volume | 35201 ų |
| envelope_diameter | 83.1 Å |
| shell_rg | 35.12 Å |
| envelope_rg | 26.21 Å |
| shape_rg | 26.72 Å |
| total_rg | 27.61 Å |
| total_atoms | 5220 |
| n_residues | 652 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 82.0 Å |
| rg_real | 27.59 Å |
| rg_real_error | 0.38 Å |
| i0_real | 9.0870e+07 |
| i0_real_error | 1.1000e+06 |
| rg_reciprocal | 27.67 Å |
| i0_reciprocal | 90880000.0000 |
| total_estimate | 0.9059 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 38.8 Å |
| skewness | 0.016 |
| kurtosis | -0.575 |
| angular_range | — – 0.2850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 28520000.0000 |
| n_real_points | 58 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.939 |
