1c05
SOLUTION STRUCTURE OF RIBOSOMAL PROTEIN S4 DELTA 41, REFINED WITH DIPOLAR COUPLINGS (MINIMIZED AVERAGE STRUCTURE)
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1c05 |
| deposition_date | 1999-07-14 |
| title | SOLUTION STRUCTURE OF RIBOSOMAL PROTEIN S4 DELTA 41, REFINED WITH DIPOLAR COUPLINGS (MINIMIZED AVERAGE STRUCTURE) |
| keywords | TWO SUBDOMAINS, UNIQUE TOPOLOGY, POSSIBLE HELIX-TURN-HELIX MOTIF, RIBOSOME; RIBOSOME |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.05 Å |
| rg_electron | 17.13 Å |
| i0 | 6736200.00 |
| molecular_weight | 18599.0 kDa |
| excluded_volume | 23268 ų |
| envelope_volume | 28363 ų |
| shell_volume | 14543 ų |
| envelope_diameter | 69.0 Å |
| shell_rg | 22.50 Å |
| envelope_rg | 17.84 Å |
| shape_rg | 17.06 Å |
| total_rg | 18.29 Å |
| total_atoms | 2641 |
| n_residues | 159 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

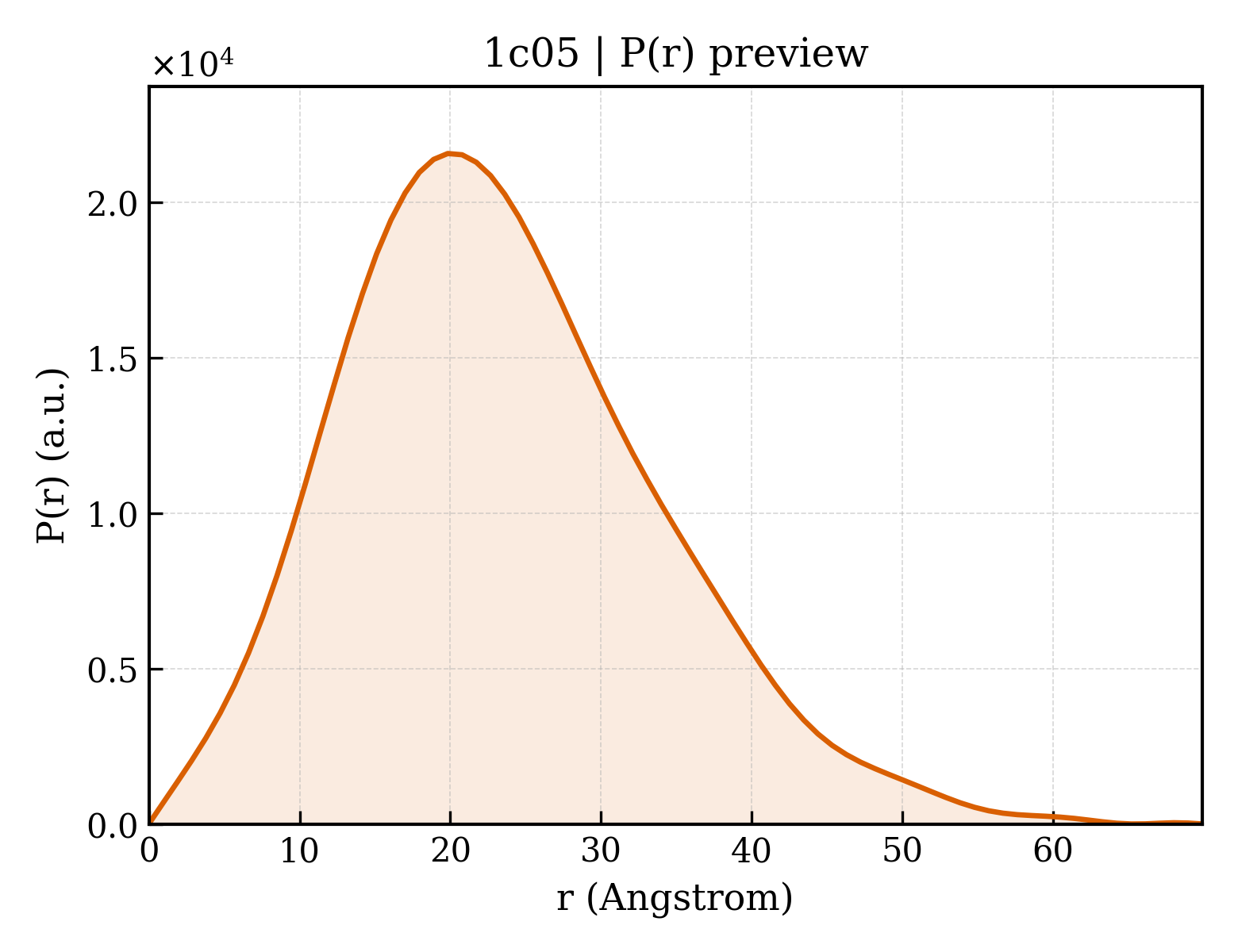

3. P(r) Analysis (GNOM)
| dmax | 69.9 Å |
| rg_real | 18.11 Å |
| rg_real_error | 0.66 Å |
| i0_real | 6.7360e+06 |
| i0_real_error | 9.2070e+04 |
| rg_reciprocal | 18.10 Å |
| i0_reciprocal | 6736000.0000 |
| total_estimate | 0.7849 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 19.8 Å |
| skewness | 0.529 |
| kurtosis | 0.189 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2334000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.455; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.837; Smooth: 0.997 |
