1c25
HUMAN CDC25A CATALYTIC DOMAIN

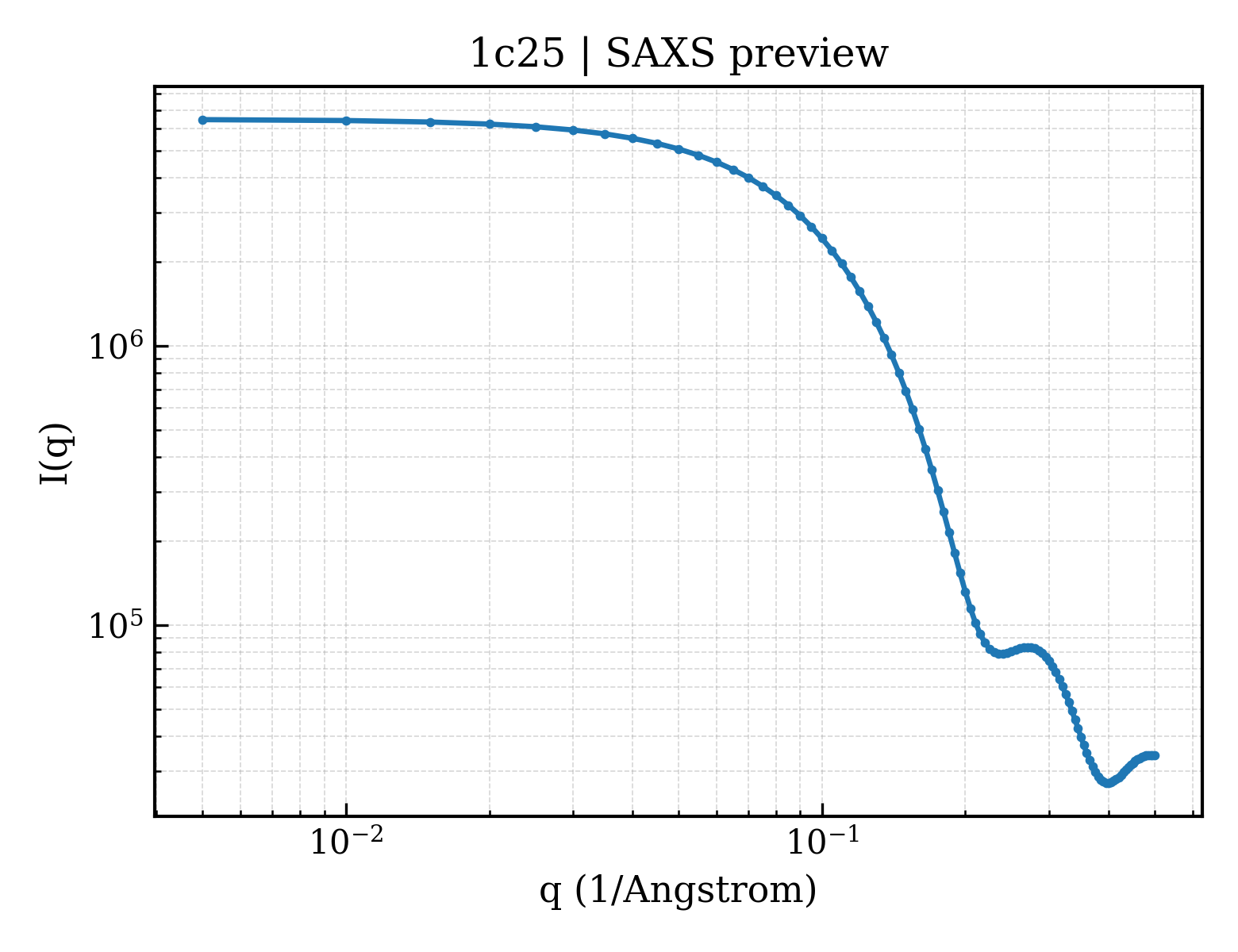

SAXS Profile

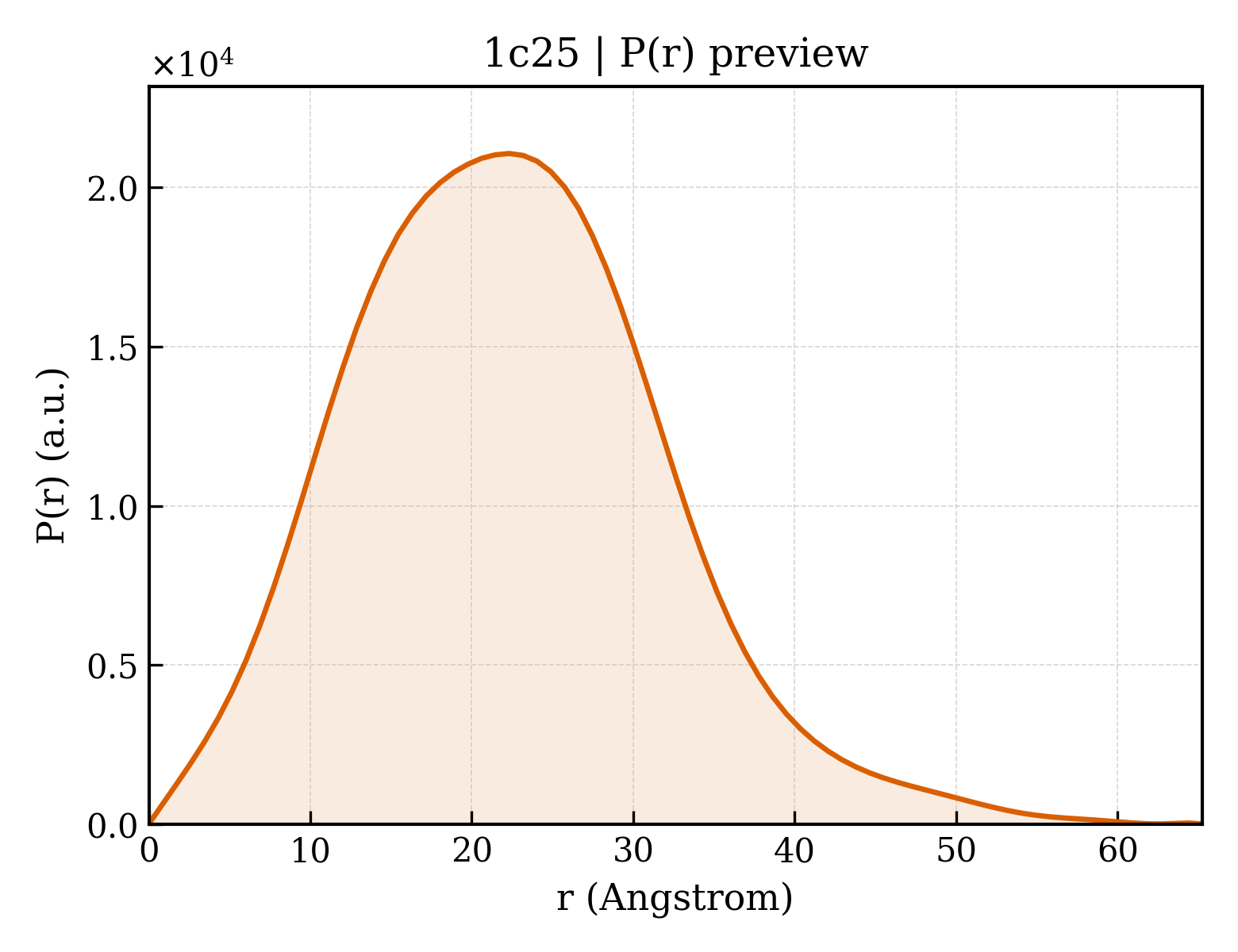

P(r) Distribution
1. Structure Basics
| entry_id | 1c25 |
| deposition_date | 1998-04-17 |
| title | HUMAN CDC25A CATALYTIC DOMAIN |
| keywords | HYDROLASE, CELL CYCLE PHOSPHATASE, DUAL SPECIFICITY PROTEIN PHOSPHATASE, CDK2; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.13 Å |
| rg_electron | 16.04 Å |
| i0 | 6488190.00 |
| molecular_weight | 18962.0 kDa |
| excluded_volume | 23880 ų |
| envelope_volume | 27713 ų |
| shell_volume | 14712 ų |
| envelope_diameter | 63.0 Å |
| shell_rg | 21.96 Å |
| envelope_rg | 16.81 Å |
| shape_rg | 16.06 Å |
| total_rg | 17.06 Å |
| total_atoms | 1335 |
| n_residues | 161 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 65.2 Å |
| rg_real | 17.12 Å |
| rg_real_error | 0.48 Å |
| i0_real | 6.4880e+06 |
| i0_real_error | 8.1750e+04 |
| rg_reciprocal | 17.12 Å |
| i0_reciprocal | 6488000.0000 |
| total_estimate | 0.6539 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 22.3 Å |
| skewness | 0.431 |
| kurtosis | 0.253 |
| angular_range | — – 0.4650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1728000.0000 |
| n_real_points | 77 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.499; Stabil: 1.000; Sysdev: 0.379; Positv: 1.000; Valcen: 0.873; Smooth: 0.991 |
