1c28
THE CRYSTAL STRUCTURE OF A COMPLMENT-1Q FAMILY PROTEIN SUGGESTS AN EVOLUTIONARY LINK TO TUMOR NECROSIS FACTOR

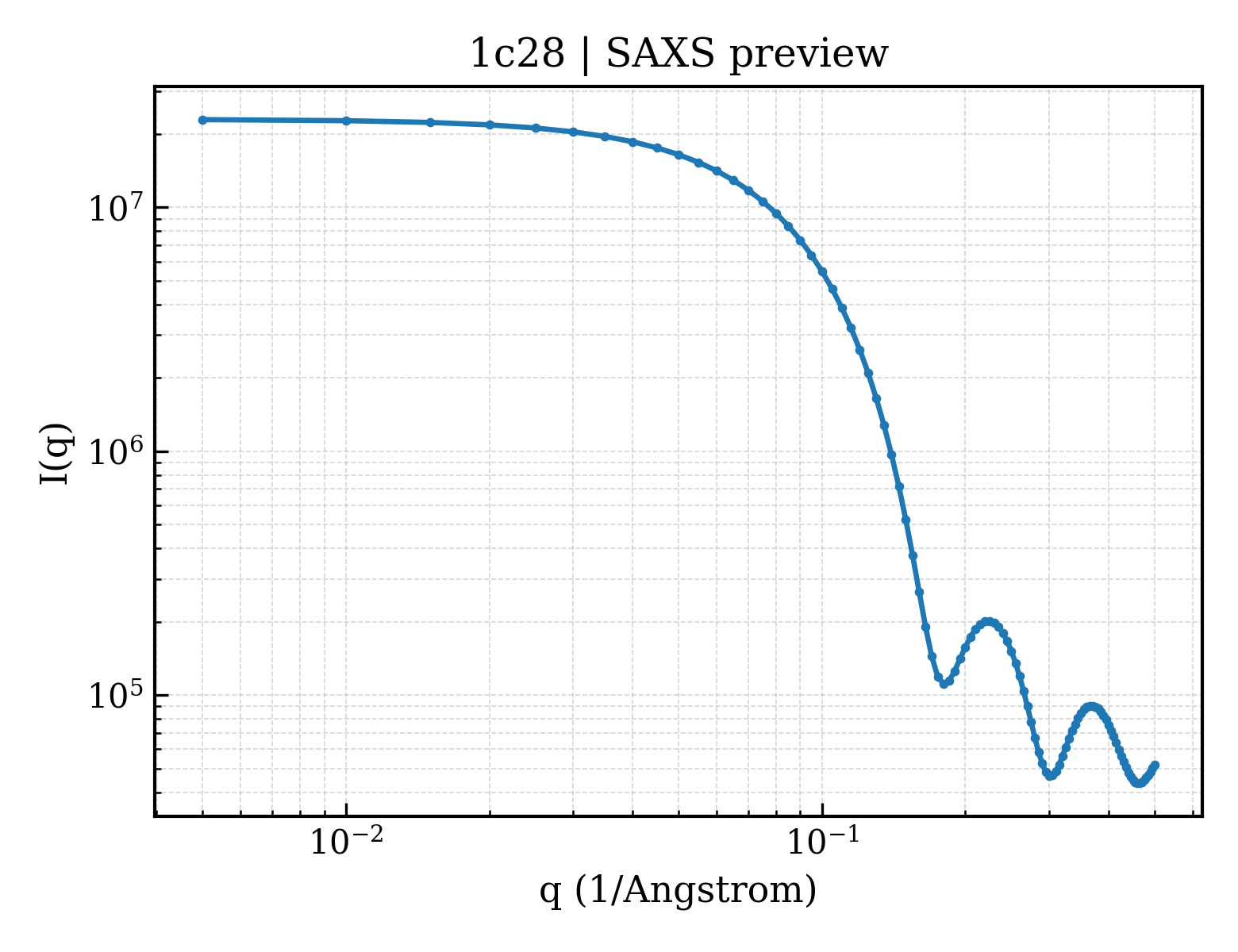

SAXS Profile

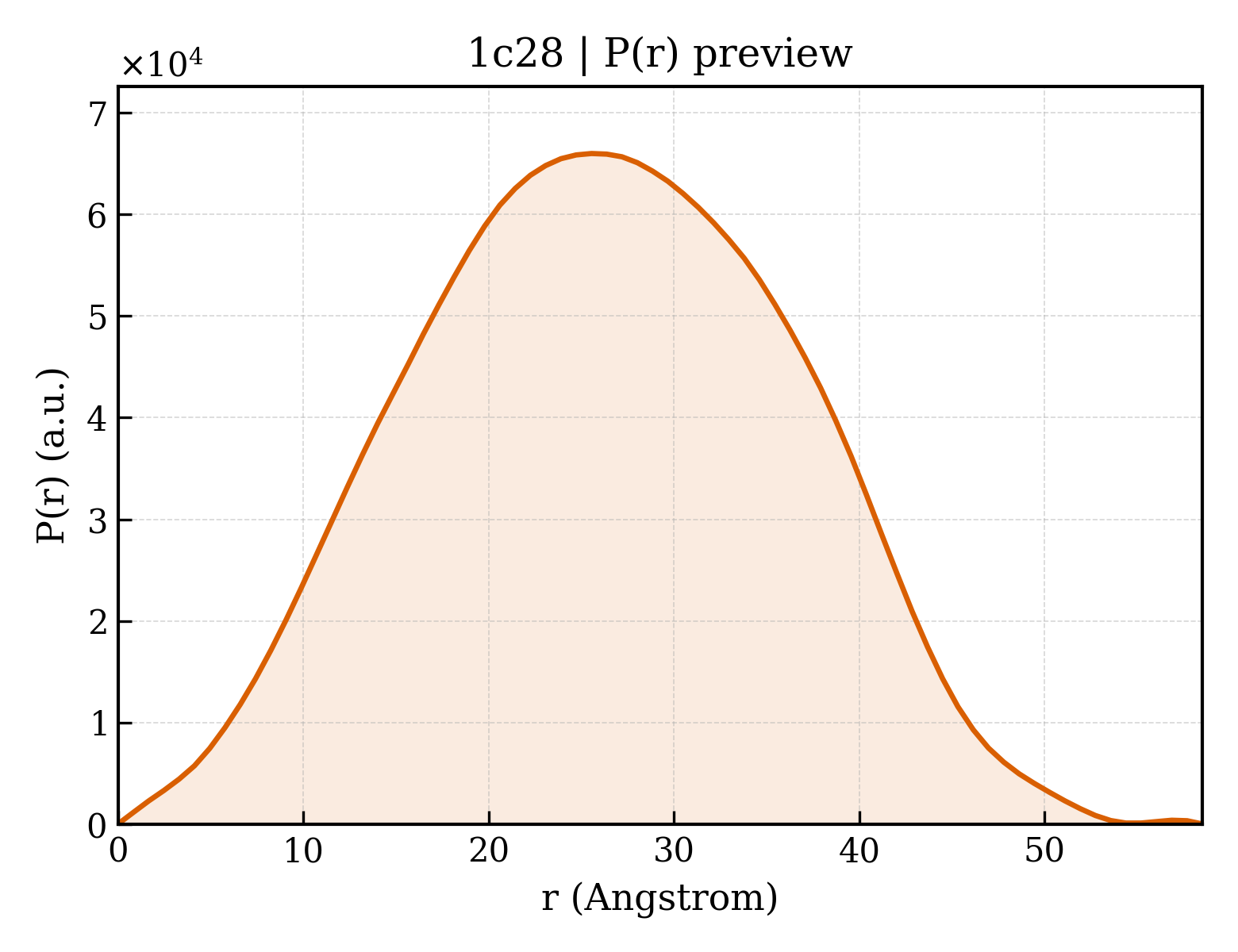

P(r) Distribution
1. Structure Basics
| entry_id | 1c28 |
| deposition_date | 1999-07-22 |
| title | THE CRYSTAL STRUCTURE OF A COMPLMENT-1Q FAMILY PROTEIN SUGGESTS AN EVOLUTIONARY LINK TO TUMOR NECROSIS FACTOR |
| keywords | ACRP30 C1Q TNF TRIMER ALL-BETA, SERUM PROTEIN; SERUM PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.98 Å |
| rg_electron | 18.65 Å |
| i0 | 22985900.00 |
| molecular_weight | 38584.0 kDa |
| excluded_volume | 48885 ų |
| envelope_volume | 53615 ų |
| shell_volume | 22943 ų |
| envelope_diameter | 59.2 Å |
| shell_rg | 25.98 Å |
| envelope_rg | 18.91 Å |
| shape_rg | 18.62 Å |
| total_rg | 19.74 Å |
| total_atoms | 2743 |
| n_residues | 338 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.5 Å |
| rg_real | 19.81 Å |
| rg_real_error | 0.25 Å |
| i0_real | 2.2990e+07 |
| i0_real_error | 3.2190e+05 |
| rg_reciprocal | 19.84 Å |
| i0_reciprocal | 22990000.0000 |
| total_estimate | 0.9050 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 25.6 Å |
| skewness | 0.011 |
| kurtosis | -0.552 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7316000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.939; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.979 |
