T. MARITIMA ADENYLOSUCCINATE LYASE

Method: X-RAY DIFFRACTION D_max: 110.6 Å Quality: EXCELLENT

SAXS Profile

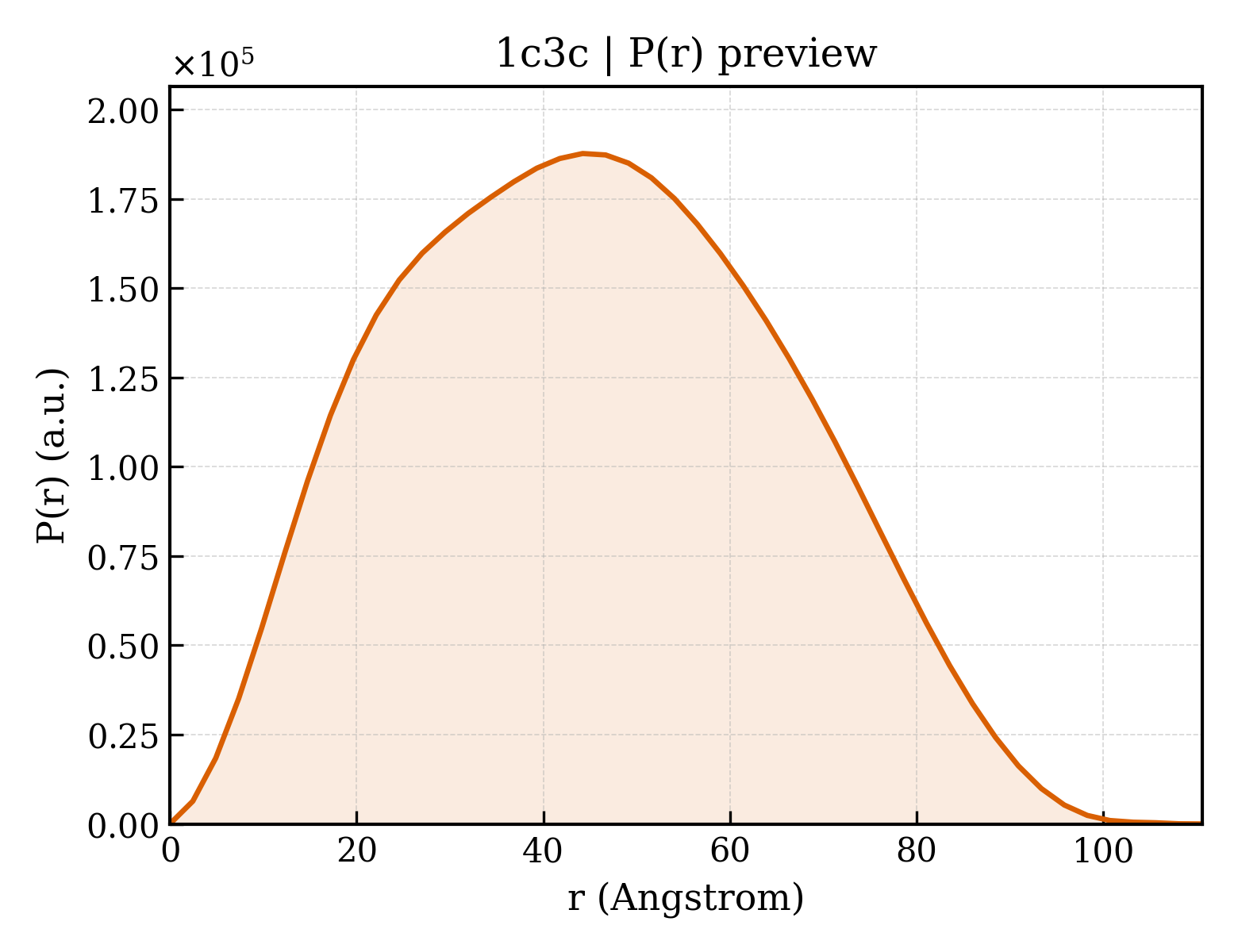

P(r) Distribution

▼

1. Structure Basics

entry_id	1c3c
deposition_date	1999-07-27
title	T. MARITIMA ADENYLOSUCCINATE LYASE
keywords	PURINE BIOSYNTHESIS, LYASE; LYASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.11 Å
rg_electron	34.64 Å
i0	135135000.00
molecular_weight	95419.0 kDa
excluded_volume	120290 Å³
envelope_volume	156110 Å³
shell_volume	38187 Å³
envelope_diameter	113.0 Å
shell_rg	40.46 Å
envelope_rg	34.15 Å
shape_rg	34.67 Å
total_rg	34.98 Å
total_atoms	6734
n_residues	848
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	110.6 Å
rg_real	35.04 Å
rg_real_error	1.03 Å
i0_real	1.3510e+08
i0_real_error	2.2220e+06
rg_reciprocal	35.09 Å
i0_reciprocal	135100000.0000
total_estimate	0.9116
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	1
r_peak_primary	44.2 Å
skewness	0.146
kurtosis	-0.709
angular_range	— – 0.2250 Å⁻¹
current_alpha	0.0000
highest_alpha	15190000.0000
n_real_points	46
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.956

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	120.809 Å
length_b	126.753 Å
length_c	169.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	1.800 Å
resolution_low	50.000 Å
r_factor	—
r_work	0.1790
r_free	0.2070

description	PROTEIN (ADENYLOSUCCINATE LYASE)
formula_weight	49687.8 kDa
ec_number	4.3.2.2
src_method	man
entity_count	2

type	polypeptide(L)
strand_id	A,B
atom_count	7427

T. MARITIMA ADENYLOSUCCINATE LYASE

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Thermotoga maritima
ncbi_taxonomy_id	2336
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	693
