1c3k
CRYSTAL STRUCTURE OF HELIANTHUS TUBEROSUS LECTIN
SAXS Profile

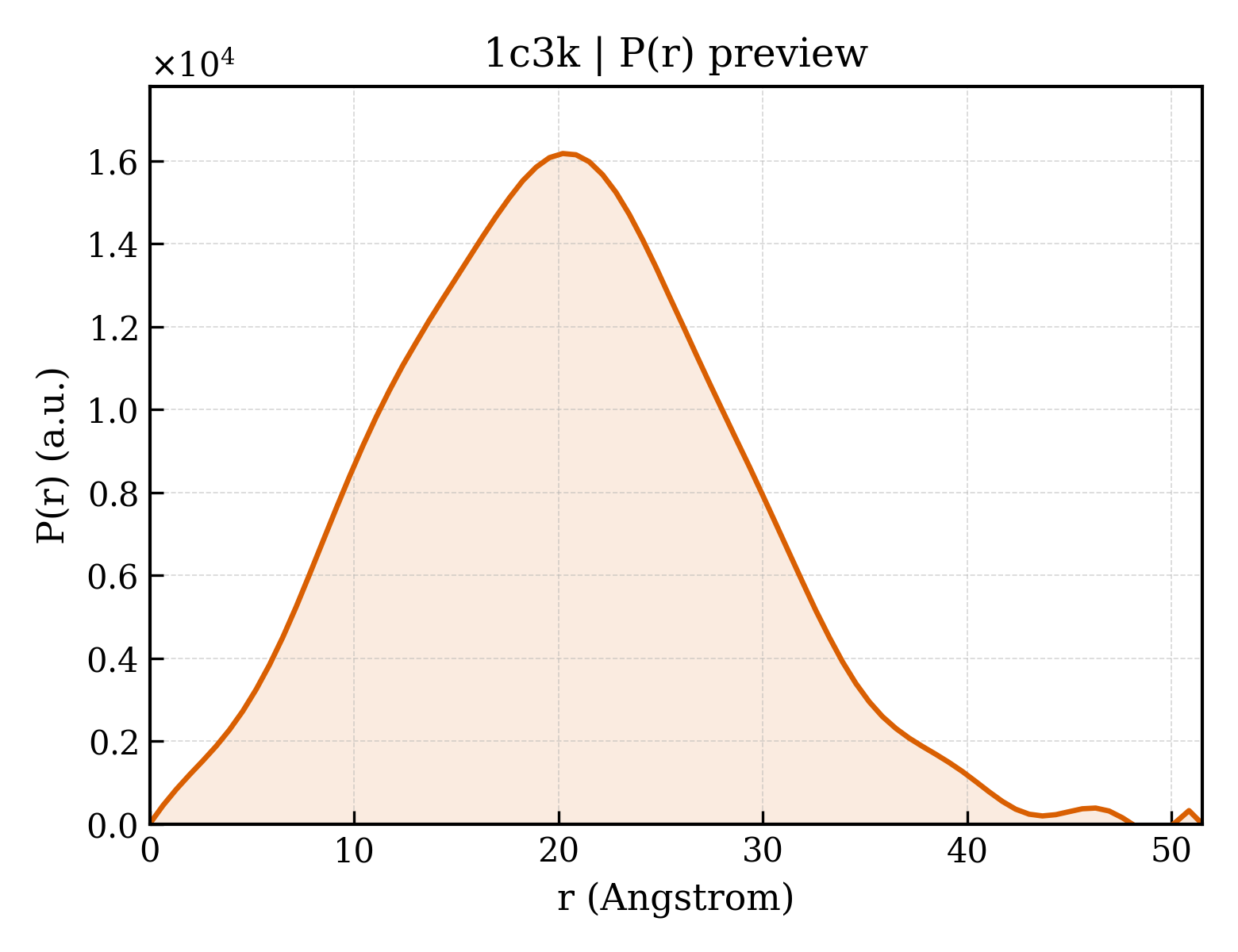

P(r) Distribution
1. Structure Basics
| entry_id | 1c3k |
| deposition_date | 1999-07-28 |
| title | CRYSTAL STRUCTURE OF HELIANTHUS TUBEROSUS LECTIN |
| keywords | BETA PRISM, AGGLUTININ, JACALIN-RELATED, MANNOSE, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.51 Å |
| rg_electron | 14.13 Å |
| i0 | 4205420.00 |
| molecular_weight | 15126.0 kDa |
| excluded_volume | 19133 ų |
| envelope_volume | 20984 ų |
| shell_volume | 12606 ų |
| envelope_diameter | 53.1 Å |
| shell_rg | 20.03 Å |
| envelope_rg | 14.56 Å |
| shape_rg | 14.09 Å |
| total_rg | 15.46 Å |
| total_atoms | 1071 |
| n_residues | 143 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 51.5 Å |
| rg_real | 15.43 Å |
| rg_real_error | 0.36 Å |
| i0_real | 4.2050e+06 |
| i0_real_error | 5.1900e+04 |
| rg_reciprocal | 15.44 Å |
| i0_reciprocal | 4205000.0000 |
| total_estimate | 0.6181 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 20.2 Å |
| skewness | 0.201 |
| kurtosis | -0.199 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 758300.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.755; Stabil: 0.999; Sysdev: 0.256; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
