2-HYDROXY-6-OXO-6-PHENYLHEXA-2,4-DIENOATE HYDROLASE (BPHD) FROM RHODOCOCCUS SP. STRAIN RHA1

Method: X-RAY DIFFRACTION D_max: 56.3 Å Quality: EXCELLENT

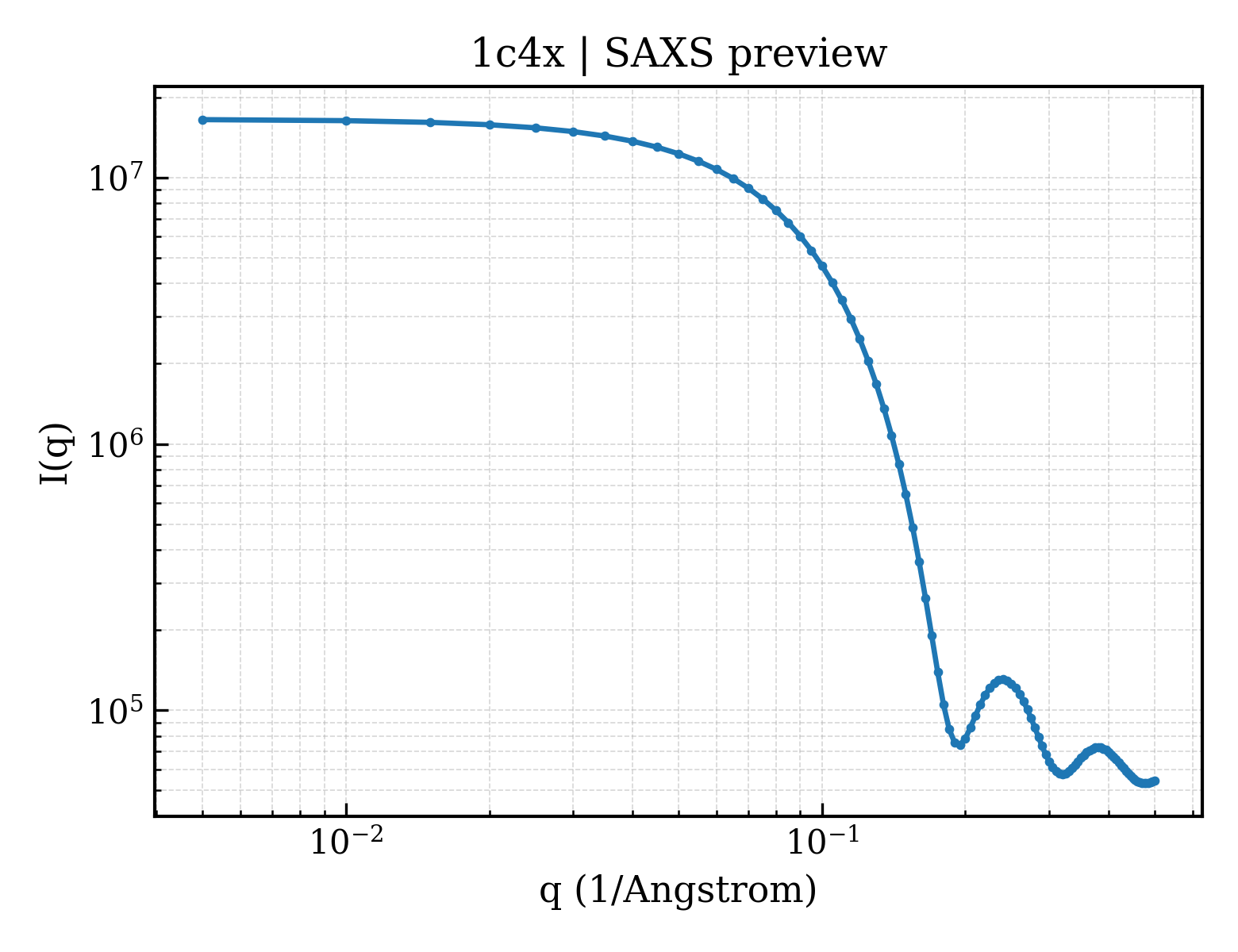

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1c4x
deposition_date	1999-09-30
title	2-HYDROXY-6-OXO-6-PHENYLHEXA-2,4-DIENOATE HYDROLASE (BPHD) FROM RHODOCOCCUS SP. STRAIN RHA1
keywords	HYDROLASE, PCB DEGRADATION; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	18.91 Å
rg_electron	17.60 Å
i0	16539300.00
molecular_weight	31214.0 kDa
excluded_volume	39259 Å³
envelope_volume	43678 Å³
shell_volume	20132 Å³
envelope_diameter	56.8 Å
shell_rg	24.48 Å
envelope_rg	17.78 Å
shape_rg	17.61 Å
total_rg	18.56 Å
total_atoms	2199
n_residues	281
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	56.3 Å
rg_real	18.75 Å
rg_real_error	0.27 Å
i0_real	1.6540e+07
i0_real_error	1.8920e+05
rg_reciprocal	18.77 Å
i0_reciprocal	16540000.0000
total_estimate	0.9043
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	25.0 Å
skewness	0.036
kurtosis	-0.512
angular_range	— – 0.4200 Å⁻¹
current_alpha	0.0000
highest_alpha	4142000.0000
n_real_points	73
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.929; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.970; Smooth: 0.995

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

▶

6. Citations (1)

▶

length_a	110.800 Å
length_b	110.800 Å
length_c	136.400 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	I 4 2 2
int_tables_number	97
crystal_system	—

resolution	2.400 Å
resolution_low	100.000 Å
r_factor	0.1780
r_work	0.1780
r_free	0.2270

description	PROTEIN (2-HYDROXY-6-OXO-6-PHENYLHEXA-2,4-DIENOATE HYDROLASE)
formula_weight	31680.6 kDa
ec_number	3.7.1.8
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	2231

2-HYDROXY-6-OXO-6-PHENYLHEXA-2,4-DIENOATE HYDROLASE (BPHD) FROM RHODOCOCCUS SP. STRAIN RHA1

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (2)

Entity 1 polymer

Polymer

Source

Entity 2 water

6. Citations (1)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Rhodococcus sp.
ncbi_taxonomy_id	101510
host_organism	Escherichia coli

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	32

fit	/app/data/saxs_computation/c4/1c4x/1c4x.fit
pddf	/app/data/pr_computation/c4/1c4x/1c4x.pr.out
profile	/app/data/saxs_computation/c4/1c4x/1c4x.dat
