1c51

PHOTOSYNTHETIC REACTION CENTER AND CORE ANTENNA SYSTEM (TRIMERIC), ALPHA CARBON ONLY

Method: X-RAY DIFFRACTION D_max: 117.5 Å Quality: EXCELLENT

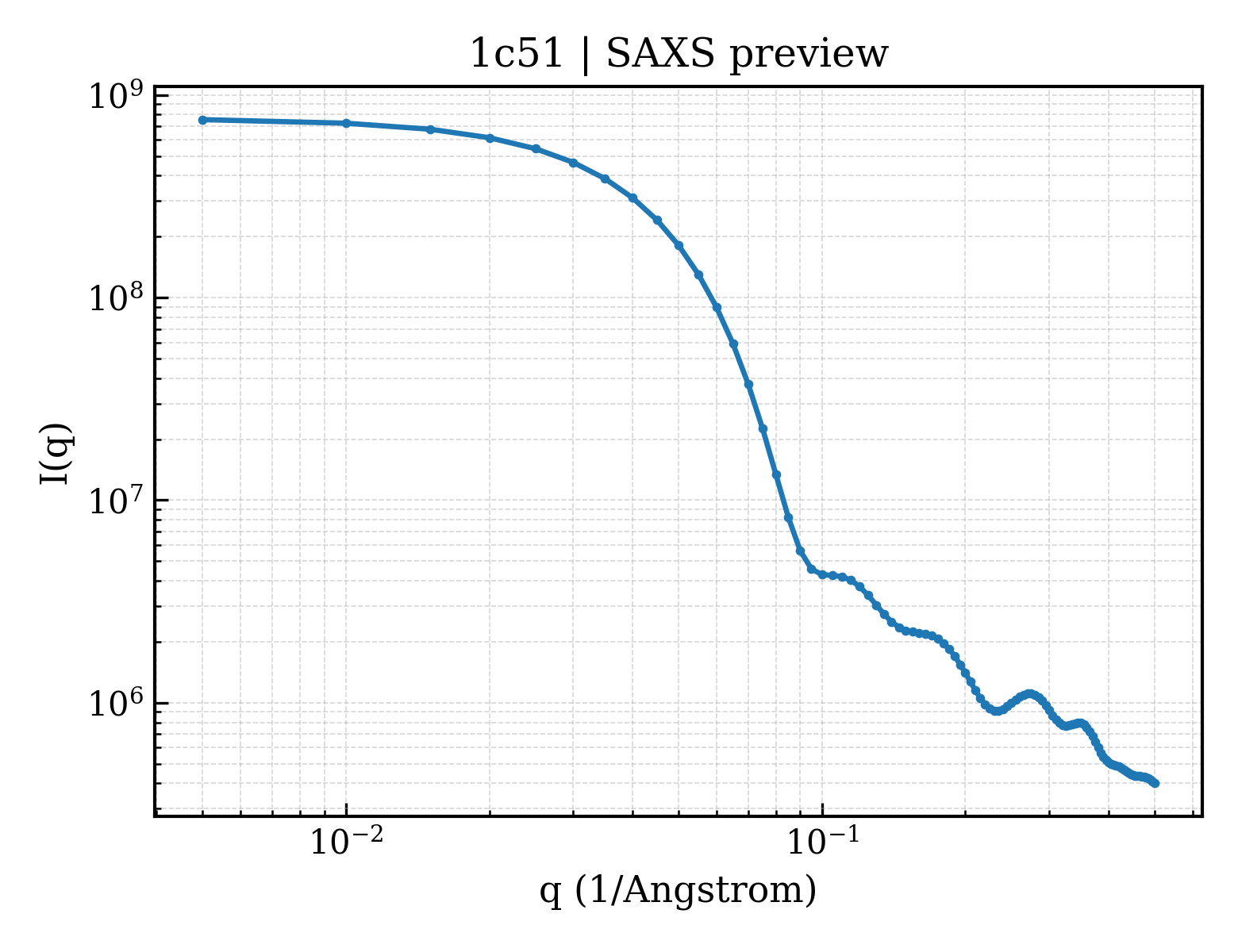

SAXS Profile

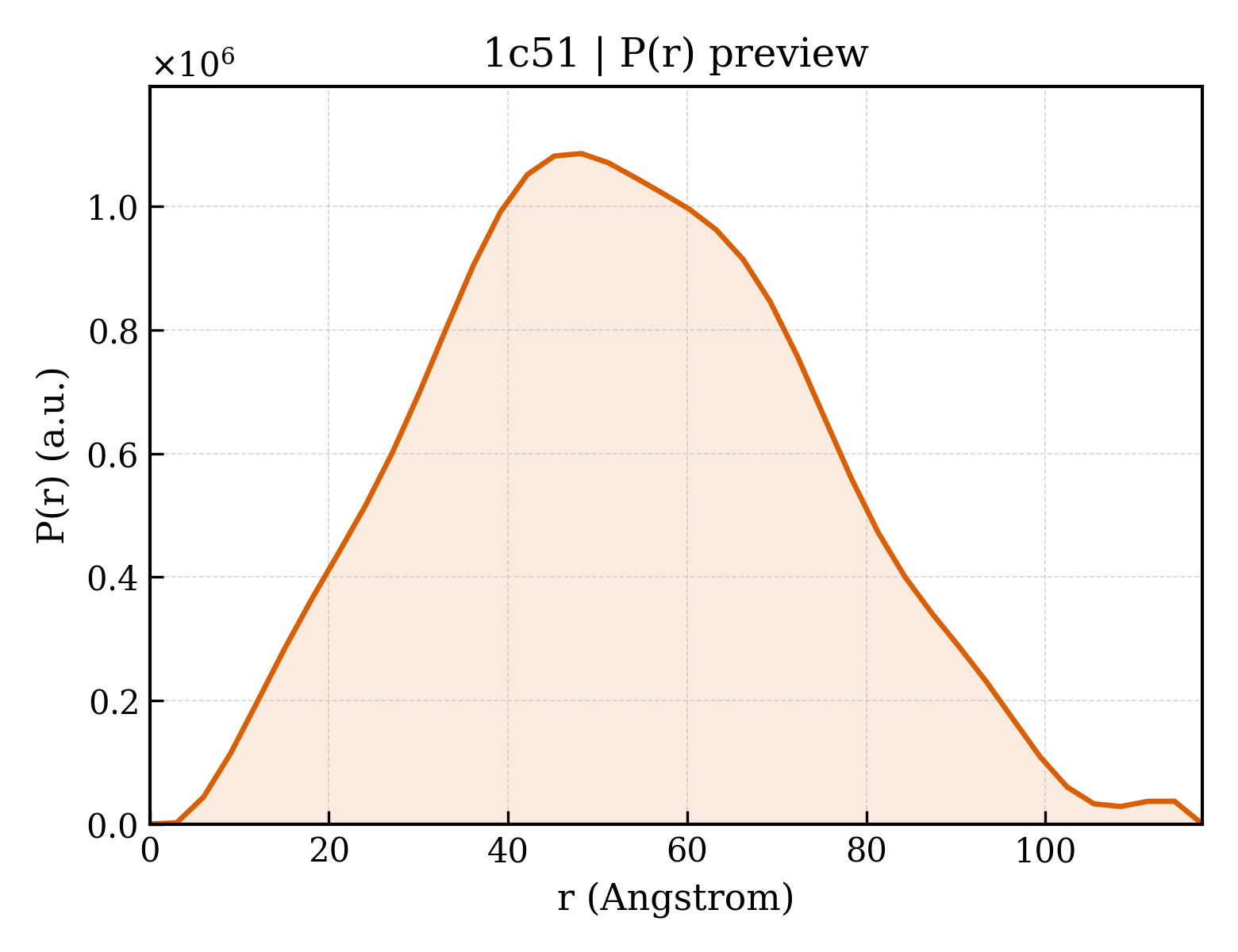

P(r) Distribution

▼

1. Structure Basics

entry_id	1c51
deposition_date	1999-10-21
title	PHOTOSYNTHETIC REACTION CENTER AND CORE ANTENNA SYSTEM (TRIMERIC), ALPHA CARBON ONLY
keywords	;PHOTOSYNTHESIS, PHOTOSYNTHETIC REACTION CENTER, OXYGENIC PHOTOSYNTHESIS, CORE- ANTENNA LIGHT-HARVESTING SYSTEM, THERMOPHILIC CYANOBACTERIUM, HELIX-BUNDLE MEMBRANE PROTEIN, PHOTOSYNTHESIS-ELECTRON TRANSPORT COMPLEX ;; PHOTOSYNTHESIS/ELECTRON TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	40.52 Å
rg_electron	40.09 Å
i0	765476000.00
molecular_weight	227390.0 kDa
excluded_volume	434350 Å³
envelope_volume	317590 Å³
shell_volume	67478 Å³
envelope_diameter	132.8 Å
shell_rg	45.25 Å
envelope_rg	37.72 Å
shape_rg	38.59 Å
total_rg	40.84 Å
total_atoms	1828
n_residues	—
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	117.5 Å
rg_real	40.31 Å
rg_real_error	0.42 Å
i0_real	7.6530e+08
i0_real_error	1.0090e+07
rg_reciprocal	40.51 Å
i0_reciprocal	765600000.0000
total_estimate	0.9035
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	48.2 Å
skewness	0.173
kurtosis	-0.435
angular_range	— – 0.1950 Å⁻¹
current_alpha	0.0000
highest_alpha	157600000.0000
n_real_points	40
gnom_version	4.1.3
quality_criteria	AN1: 0.001; Oscil: 0.950; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.937

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (11)

Entity 1 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAA)
formula_weight	50825.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3672

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 2 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAB )
formula_weight	52698.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

Entity 3 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAC)
formula_weight	6571.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 4 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAD)
formula_weight	10656.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 5 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAE)
formula_weight	6400.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 6 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAF)
formula_weight	13039.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 7 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAK)
formula_weight	6656.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 8 polymer

description	PROTEIN (PHOTOSYSTEM I: SUBUNIT PSAL)
formula_weight	10230.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Entity 9 non-polymer

description	CHLOROPHYLL A
formula_weight	893.5 kDa
src_method	syn
entity_count	72

Entity 10 non-polymer

description	PHYLLOQUINONE
formula_weight	450.7 kDa
src_method	syn
entity_count	2

Entity 11 non-polymer

description	IRON/SULFUR CLUSTER
formula_weight	351.6 kDa
src_method	syn
entity_count	3

▶

6. Citations (6)

▶

length_a	286.000 Å
length_b	286.000 Å
length_c	167.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 63
int_tables_number	173
crystal_system	—

resolution	4.000 Å
resolution_low	60.000 Å
r_factor	—
r_work	—
r_free	—

fit	/app/data/saxs_computation/c5/1c51/1c51.fit
pddf	/app/data/pr_computation/c5/1c51/1c51.pr.out
profile	/app/data/saxs_computation/c5/1c51/1c51.dat
