1c56
NMR SOLUTION STRUCTURE OF BUTANTOXIN
SAXS Profile

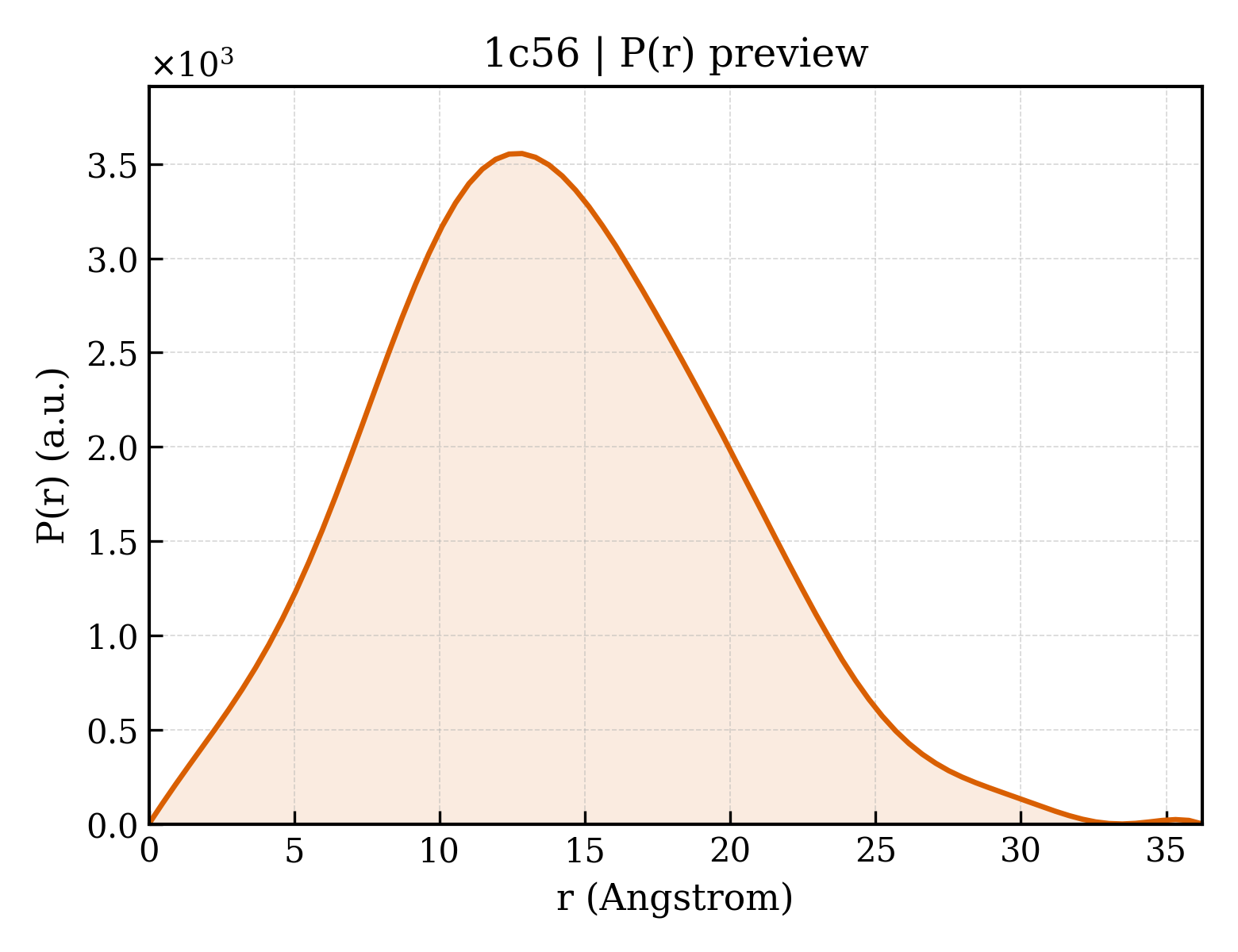

P(r) Distribution
1. Structure Basics
| entry_id | 1c56 |
| deposition_date | 1999-10-25 |
| title | NMR SOLUTION STRUCTURE OF BUTANTOXIN |
| keywords | BUTANTOXIN, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.69 Å |
| rg_electron | 9.39 Å |
| i0 | 658817.00 |
| molecular_weight | 4517.0 kDa |
| excluded_volume | 5407 ų |
| envelope_volume | 6351 ų |
| shell_volume | 6102 ų |
| envelope_diameter | 33.5 Å |
| shell_rg | 14.25 Å |
| envelope_rg | 9.82 Å |
| shape_rg | 9.41 Å |
| total_rg | 10.86 Å |
| total_atoms | 591 |
| n_residues | 40 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.2 Å |
| rg_real | 10.66 Å |
| rg_real_error | 0.26 Å |
| i0_real | 6.5880e+05 |
| i0_real_error | 6.2380e+03 |
| rg_reciprocal | 10.66 Å |
| i0_reciprocal | 658800.0000 |
| total_estimate | 0.8695 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 12.8 Å |
| skewness | 0.268 |
| kurtosis | -0.198 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 164400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.974 |
