1. Protein Identity and Related Structures Protein Identity & Related Structures

HYDROGENASE (SMALL SUBUNIT)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain S； UniProt 33–315	Not recorded	HYDROGENASE (LARGE SUBUNIT) × 1 （P13065） SF4 IRON/SULFUR CLUSTER × 3 NI NICKEL (II) ION × 1 FE2 FE (II) ION × 1 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.2；pH 6.2	Resolution 2.15 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CC1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4KL8 High-resolution structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 3 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；22-27% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, under air, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.52 Å R-free 0.171
4KL8 High-resolution structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-07	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 5 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；22-27% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, under air, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.52 Å R-free 0.171
4KN9 High-resolution structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 3 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.40 Å R-free 0.168
4KN9 High-resolution structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-09	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 4 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.40 Å R-free 0.168
4KO1 High X-ray dose structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 3 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.55 Å R-free 0.184
4KO1 High X-ray dose structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 4 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.55 Å R-free 0.184
4KO2 Low X-ray dose structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 4 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.60 Å R-free 0.194
4KO2 Low X-ray dose structure of H2-activated anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 4 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.60 Å R-free 0.194
4KO3 Low X-ray dose structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 3 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.70 Å R-free 0.201
4KO3 Low X-ray dose structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 5 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.70 Å R-free 0.201
4KO4 High X-ray dose structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain S 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 3 CL CHLORIDE ION × 1 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.00 Å R-free 0.172
4KO4 High X-ray dose structure of anaerobically purified Dm. baculatum [NiFeSe]-hydrogenase after crystallization under air Deposited 2013-05-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain T 33–315（283 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 3 CA CALCIUM ION × 5 GOL GLYCEROL × 2 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 NI NICKEL (II) ION × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；25% PEG 4000, 0.2M CaCl2, 0.1M Tris/HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.00 Å R-free 0.172

6 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PHSS_DESBA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain S； PDBConstruct 1–283； UniProt 33–315

HYDROGENASE (LARGE SUBUNIT)

OrganismNot specified

UniProt P13065

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain L； UniProt 2–499	Not recorded	HYDROGENASE (SMALL SUBUNIT) × 1 （P13063） SF4 IRON/SULFUR CLUSTER × 3 NI NICKEL (II) ION × 1 FE2 FE (II) ION × 1 FCO CARBONMONOXIDE-(DICYANO) IRON × 1 H2S HYDROSULFURIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.2；pH 6.2	Resolution 2.15 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	PHSL_DESBA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain L； PDBConstruct 1–498； UniProt 2–499

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cc1
Deposition date deposition_date	1999-03-03
Structure title title	CRYSTAL STRUCTURE OF A REDUCED, ACTIVE FORM OF THE NI-FE-SE HYDROGENASE FROM DESULFOMICROBIUM BACULATUM
Keywords keywords	NI-FE-SE HYDROGENASE, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

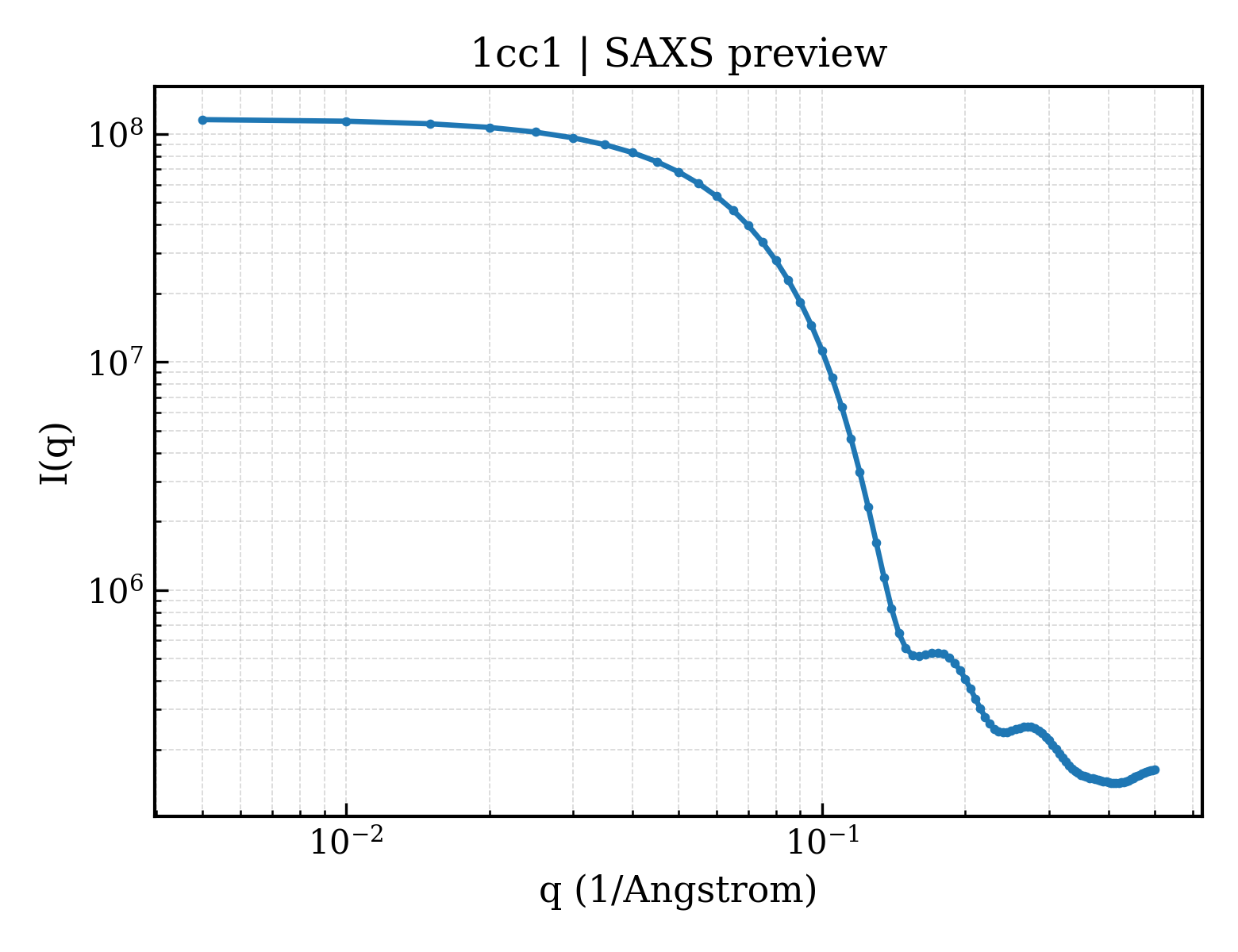

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	25.14 Å
Radius of gyration Rg (electron density) rg_electron	24.24 Å
Forward intensity I(0) i0	116290000.00
Molecular weight molecular_weight	84630.0 kDa
Excluded volume excluded_volume	105330 Å³
Envelope volume envelope_volume	116130 Å³
Hydration-shell volume shell_volume	37296 Å³
Envelope diameter envelope_diameter	84.0 Å
Shell Rg shell_rg	33.55 Å
Envelope Rg envelope_rg	24.66 Å
Shape Rg shape_rg	24.29 Å
Total Rg total_rg	24.94 Å
Total atoms total_atoms	5895
Residues n_residues	762
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

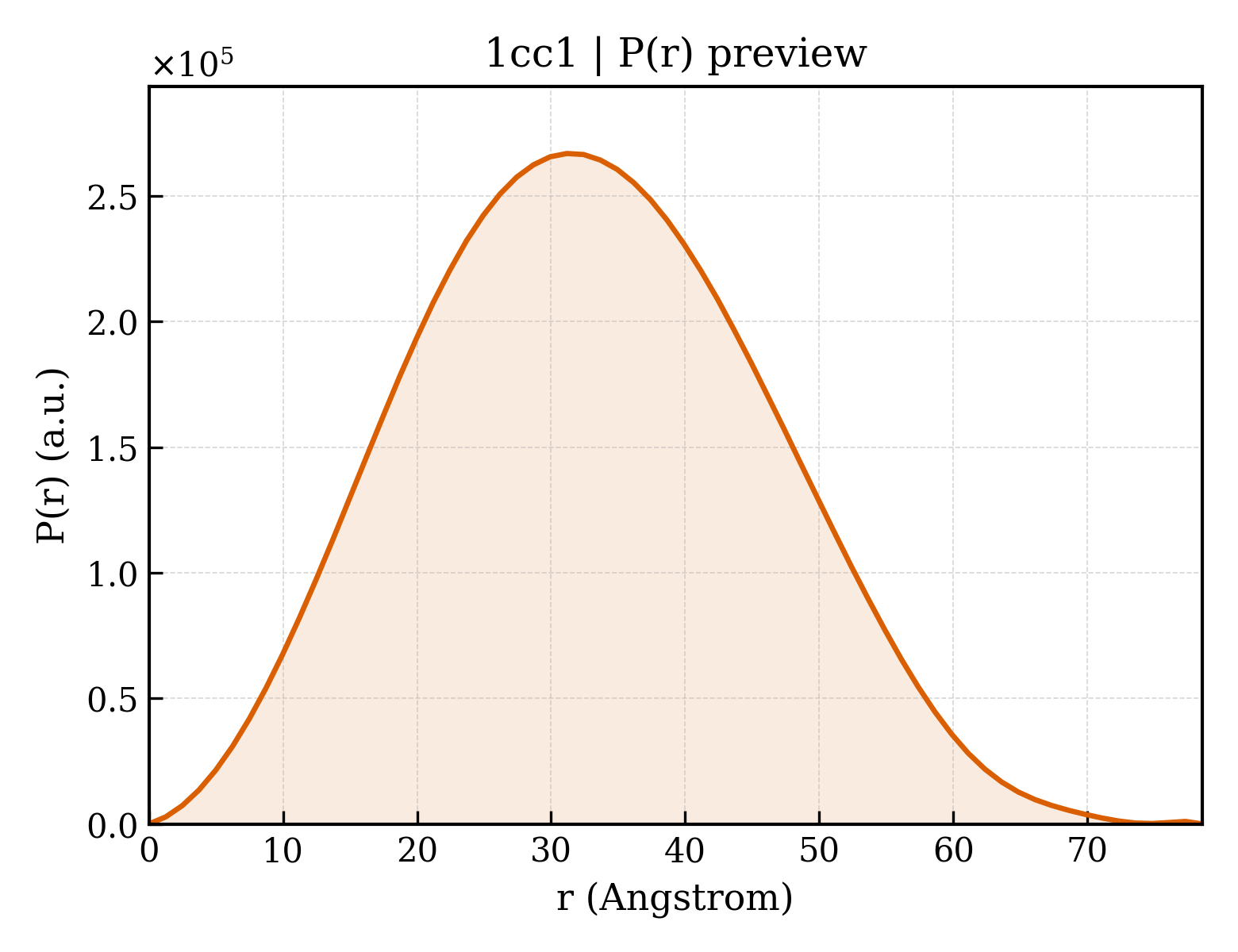

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.6 Å
Rg (real space) rg_real	24.98 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	1.1630e+08
I(0) uncertainty (real space) i0_real_error	1.4580e+06
Rg (reciprocal space) rg_reciprocal	25.03 Å
I(0) (reciprocal space) i0_reciprocal	116300000.0000
Solution quality estimate total_estimate	0.6916
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.2 Å
Skewness Skewness skewness	0.146
Kurtosis Kurtosis kurtosis	-0.452
Angular range angular_range	— – 0.3150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	28880000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 0.120; Positv: 1.000; Valcen: 0.989; Smooth: 0.971

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	HYDROGENASE (SMALL SUBUNIT)
Molecular weight formula_weight	30888.2 kDa
EC 编号 ec_number	1.18.99.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S
Atom count atom_count	6214

MTEGAKKAPVIWVQGQGCTGCSVSLLNAVHPRIKEILLDVISLEFHPTVMASEGEMALAHMYEIAEKFNGNFFLLVEGAIPTAKEGRYCIVGETLDAKAHHHEVTMMELIRDLAPKSLATVAVGTCSAYGGIPAAEGNVTGSKSVRDFFADEKIEKLLVNVPGCPPHPDWMVGTLVAAWSHVLNPTEHPLPELDDDGRPLLFFGDNIHENCPYLDKYDNSEFAETFTKPGCKAELGCKGPSTYADCAKRRWNNGINWCVENAVCIGCVEPDFPDGKSPFYVAE

Entity 2 Entity 2 polymer

Description description	HYDROGENASE (LARGE SUBUNIT)
Molecular weight formula_weight	55217.8 kDa
EC 编号 ec_number	1.18.99.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SQAATPAADGKVKISIDPLTRVEGHLKIEVEVKDGKVVDAKCSGGMFRGFEQILRGRDPRDSSQIVQRICGVCPTAHCTASVMAQDDAFGVKVTTNGRITRNLIFGANYLQSHILHFYHLAALDYVKGPDVSPFVPRYANADLLTDRIKDGAKADATNTYGLNQYLKALEIRRICHEMVAMFGGRMPHVQGMVVGGATEIPTADKVAEYAARFKEVQKFVIEEYLPLIYTLGSVYTDLFETGIGWKNVIAFGVFPEDDDYKTFLLKPGVYIDGKDEEFDSKLVKEYVGHSFFDHSAPGGLHYSVGETNPNPDKPGAYSFVKAPRYKDKPCEVGPLARMWVQNPELSPVGQKLLKELYGIEAKKFRDLGDKAFSIMGRHVLRAEETWLTAVAVEKWLKQVQPGAETYVKSEIPDAAEGTGFTEAPRGALLHYLKIKDKKIENYQIVSATLWNANPRDDMGQRGPIEEALIGVPVPDIKNPVNVGRLVRSYDPULGCAVH

Entity 3 Entity 3 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	FE (II) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CARBONMONOXIDE-(DICYANO) IRON
Molecular weight formula_weight	135.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	HYDROSULFURIC ACID
Molecular weight formula_weight	34.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1cc1l_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.18 — HydB/Nqo4-like
Superfamily Superfamily superfamily	e.18.1 — HydB/Nqo4-like
Family Family family	e.18.1.1 — Nickel-iron hydrogenase, large subunit

Domain ID domain_id	d1cc1s_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.19 — HydA/Nqo6-like
Superfamily Superfamily superfamily	e.19.1 — HydA/Nqo6-like
Family Family family	e.19.1.1 — Nickel-iron hydrogenase, small subunit

CATH v4.4 (3 domains)

Domain ID domain_id	1cc1L00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	645 — Cytochrome-c3 Hydrogenase; chain B
Homologous superfamily homologous superfamily	10 — Cytochrome-c3 Hydrogenase, chain B

Domain ID domain_id	1cc1S01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	700 — NADH:ubiquinone oxidoreductase-like, 20kDa subunit

Domain ID domain_id	1cc1S02
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	480 — Cytochrome-c3 Hydrogenase; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome-c3 hydrogenase, C-terminal domain

▶

8. Citations (2)

▶

Unit-cell length a length_a	110.390 Å
Unit-cell length b length_b	63.700 Å
Unit-cell length c length_c	99.580 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.150 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1940
R_free r_free	0.2480

fit	/app/data/saxs_computation/cc/1cc1/1cc1.fit
pddf	/app/data/pr_computation/cc/1cc1/1cc1.pr.out
profile	/app/data/saxs_computation/cc/1cc1/1cc1.dat
