1cca
;THE ASP-HIS-FE TRIAD OF CYTOCHROME C PEROXIDASE CONTROLS THE REDUCTION POTENTIAL, ELECTRONIC STRUCTURE, AND COUPLING OF THE TRYPTOPHAN FREE-RADICAL TO THE HEME ;

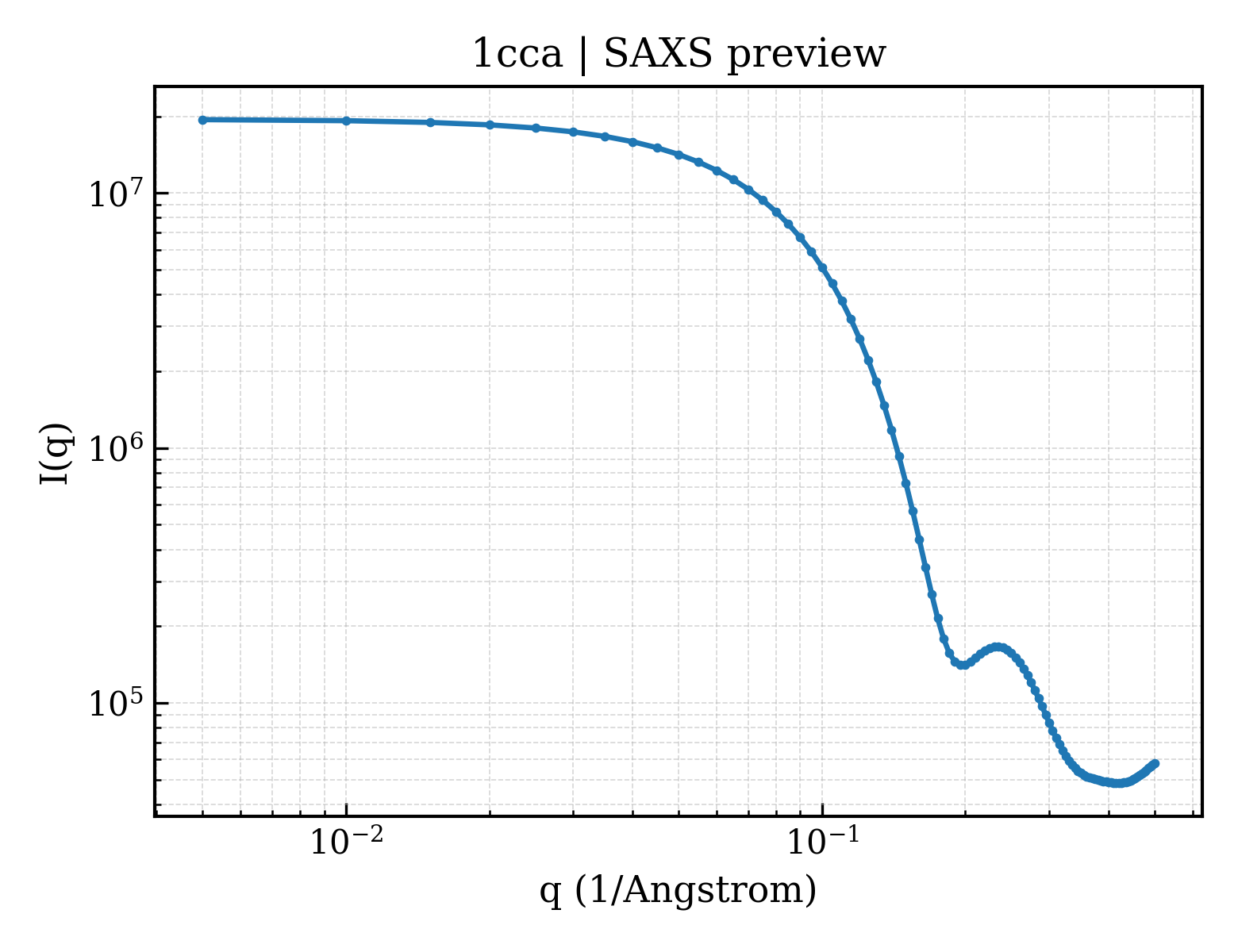

SAXS Profile

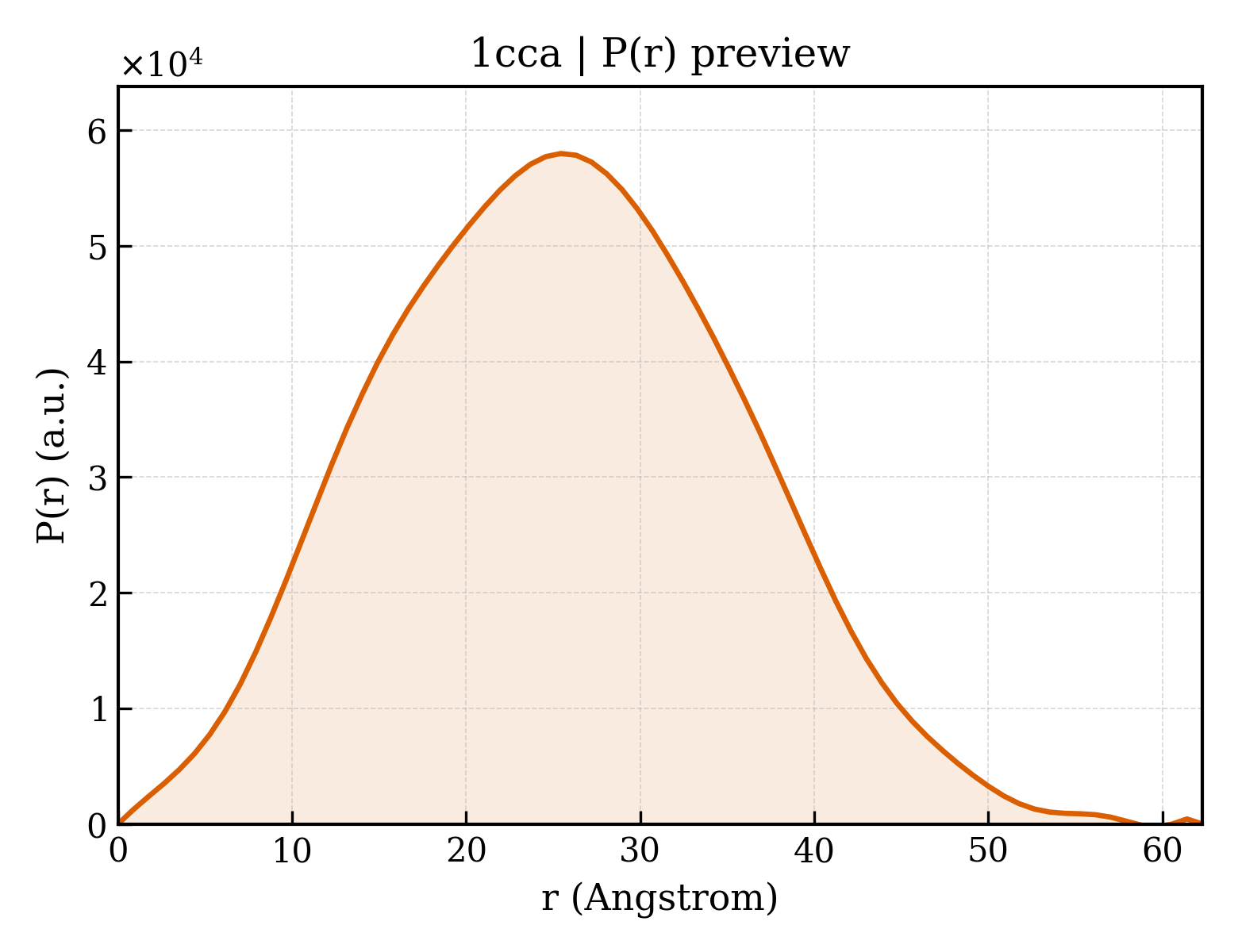

P(r) Distribution
1. Structure Basics
| entry_id | 1cca |
| deposition_date | 1993-01-04 |
| title | ;THE ASP-HIS-FE TRIAD OF CYTOCHROME C PEROXIDASE CONTROLS THE REDUCTION POTENTIAL, ELECTRONIC STRUCTURE, AND COUPLING OF THE TRYPTOPHAN FREE-RADICAL TO THE HEME ; |
| keywords | OXIDOREDUCTASE; OXIDOREDUCTASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.53 Å |
| rg_electron | 18.44 Å |
| i0 | 19457500.00 |
| molecular_weight | 33758.0 kDa |
| excluded_volume | 42178 ų |
| envelope_volume | 46898 ų |
| shell_volume | 20785 ų |
| envelope_diameter | 66.0 Å |
| shell_rg | 25.22 Å |
| envelope_rg | 18.73 Å |
| shape_rg | 18.42 Å |
| total_rg | 19.43 Å |
| total_atoms | 2895 |
| n_residues | 291 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.3 Å |
| rg_real | 19.38 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.9460e+07 |
| i0_real_error | 2.2320e+05 |
| rg_reciprocal | 19.40 Å |
| i0_reciprocal | 19460000.0000 |
| total_estimate | 0.6785 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 25.4 Å |
| skewness | 0.136 |
| kurtosis | -0.390 |
| angular_range | — – 0.4050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 5840000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.851; Stabil: 0.998; Sysdev: 0.424; Positv: 1.000; Valcen: 0.997; Smooth: 0.000 |
