1cd0
STRUCTURE OF HUMAN LAMDA-6 LIGHT CHAIN DIMER JTO

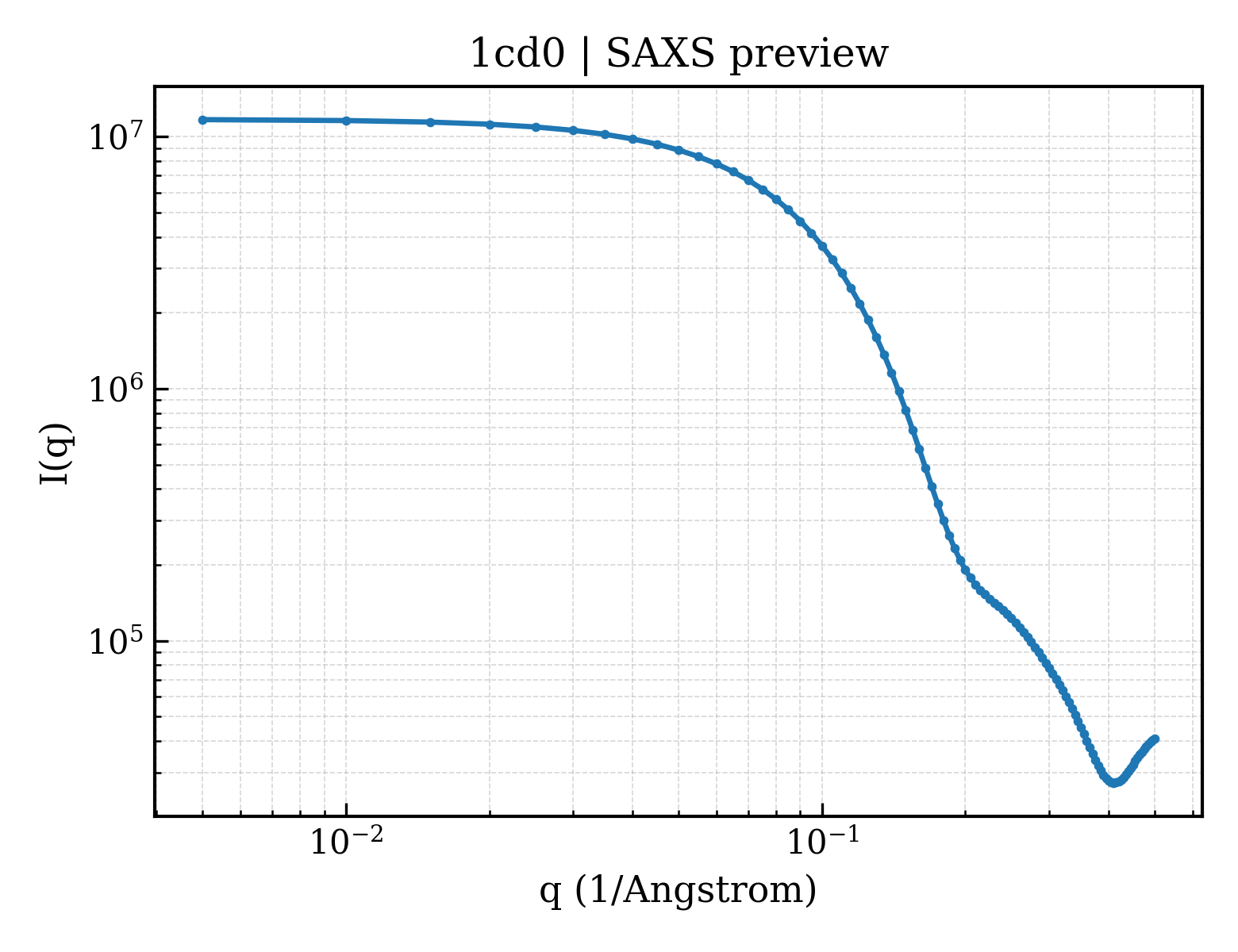

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cd0 |
| deposition_date | 1999-03-05 |
| title | STRUCTURE OF HUMAN LAMDA-6 LIGHT CHAIN DIMER JTO |
| keywords | IMMUNOGLOBULIN, BENCE-JONES PROTEIN, LAMDA-6, IMMUNE SYSTEM; IMMUNE SYSTEM |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.35 Å |
| rg_electron | 17.26 Å |
| i0 | 11703600.00 |
| molecular_weight | 23729.0 kDa |
| excluded_volume | 28917 ų |
| envelope_volume | 33498 ų |
| shell_volume | 16498 ų |
| envelope_diameter | 58.8 Å |
| shell_rg | 23.08 Å |
| envelope_rg | 17.42 Å |
| shape_rg | 17.21 Å |
| total_rg | 18.25 Å |
| total_atoms | 1670 |
| n_residues | 221 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 57.8 Å |
| rg_real | 18.26 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.1700e+07 |
| i0_real_error | 1.3190e+05 |
| rg_reciprocal | 18.28 Å |
| i0_reciprocal | 11700000.0000 |
| total_estimate | 0.9022 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 24.2 Å |
| skewness | 0.180 |
| kurtosis | -0.444 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3977000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 1.000 |
