1cd5
GLUCOSAMINE-6-PHOSPHATE DEAMINASE FROM E.COLI, T CONFORMER
SAXS Profile

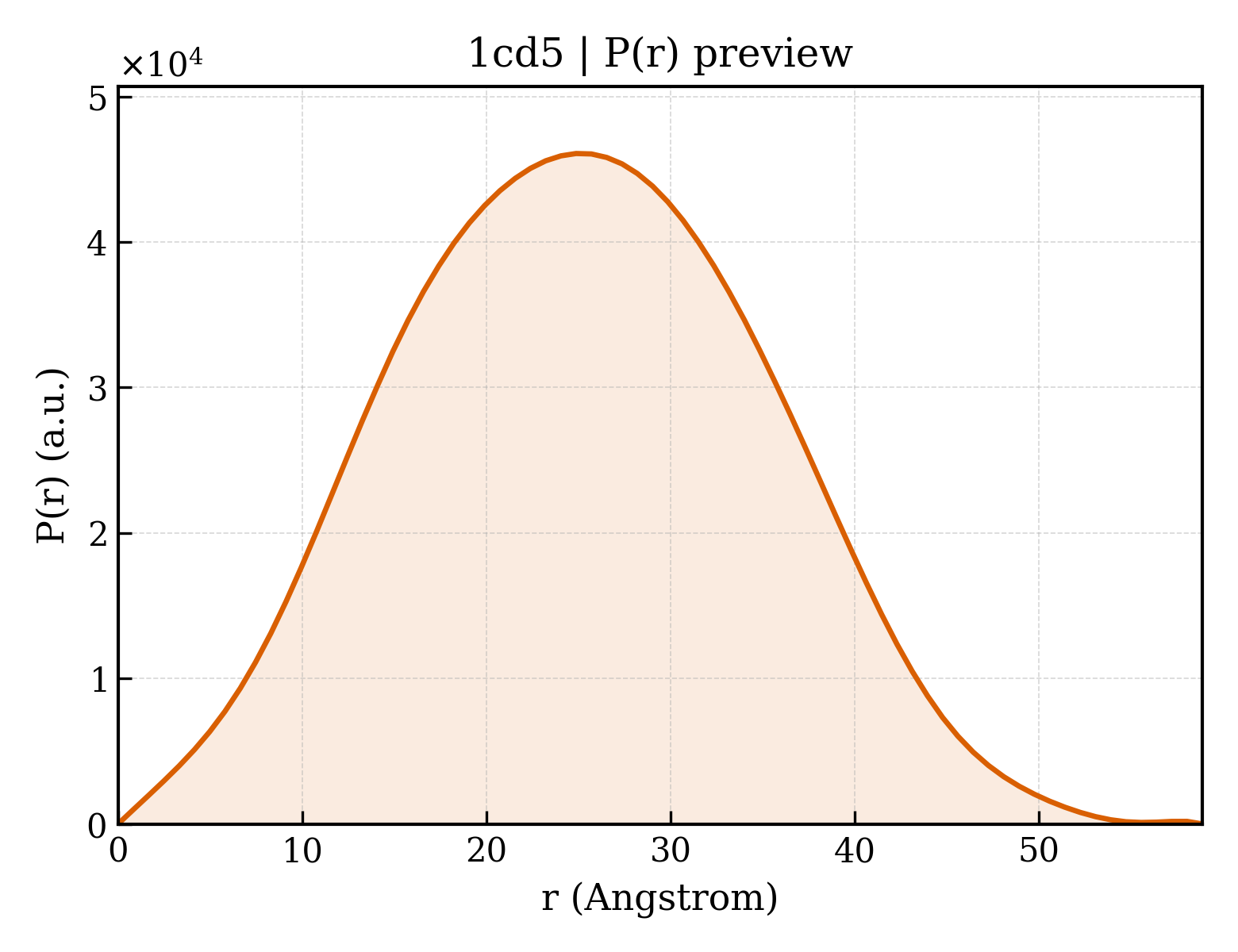

P(r) Distribution
1. Structure Basics
| entry_id | 1cd5 |
| deposition_date | 1999-03-05 |
| title | GLUCOSAMINE-6-PHOSPHATE DEAMINASE FROM E.COLI, T CONFORMER |
| keywords | ALLOSTERIC ENZYME, ENTROPIC EFFECTS, ALDOSE-KETOSE ISOMERASE, ISOMERASE; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.28 Å |
| rg_electron | 18.03 Å |
| i0 | 15586300.00 |
| molecular_weight | 29771.0 kDa |
| excluded_volume | 37289 ų |
| envelope_volume | 42371 ų |
| shell_volume | 19441 ų |
| envelope_diameter | 59.3 Å |
| shell_rg | 24.52 Å |
| envelope_rg | 18.20 Å |
| shape_rg | 18.03 Å |
| total_rg | 18.98 Å |
| total_atoms | 2558 |
| n_residues | 266 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.9 Å |
| rg_real | 19.13 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.5590e+07 |
| i0_real_error | 1.8070e+05 |
| rg_reciprocal | 19.15 Å |
| i0_reciprocal | 15590000.0000 |
| total_estimate | 0.9025 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 24.9 Å |
| skewness | 0.078 |
| kurtosis | -0.468 |
| angular_range | — – 0.4100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2952000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.916; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.995 |
