1cdo

ALCOHOL DEHYDROGENASE (E.C.1.1.1.1) (EE ISOZYME) COMPLEXED WITH NICOTINAMIDE ADENINE DINUCLEOTIDE (NAD), AND ZINC

Method: X-RAY DIFFRACTION Dmax: 104.8 Å Quality: GOOD

SAXS Profile

SAXS profile for 1cdo

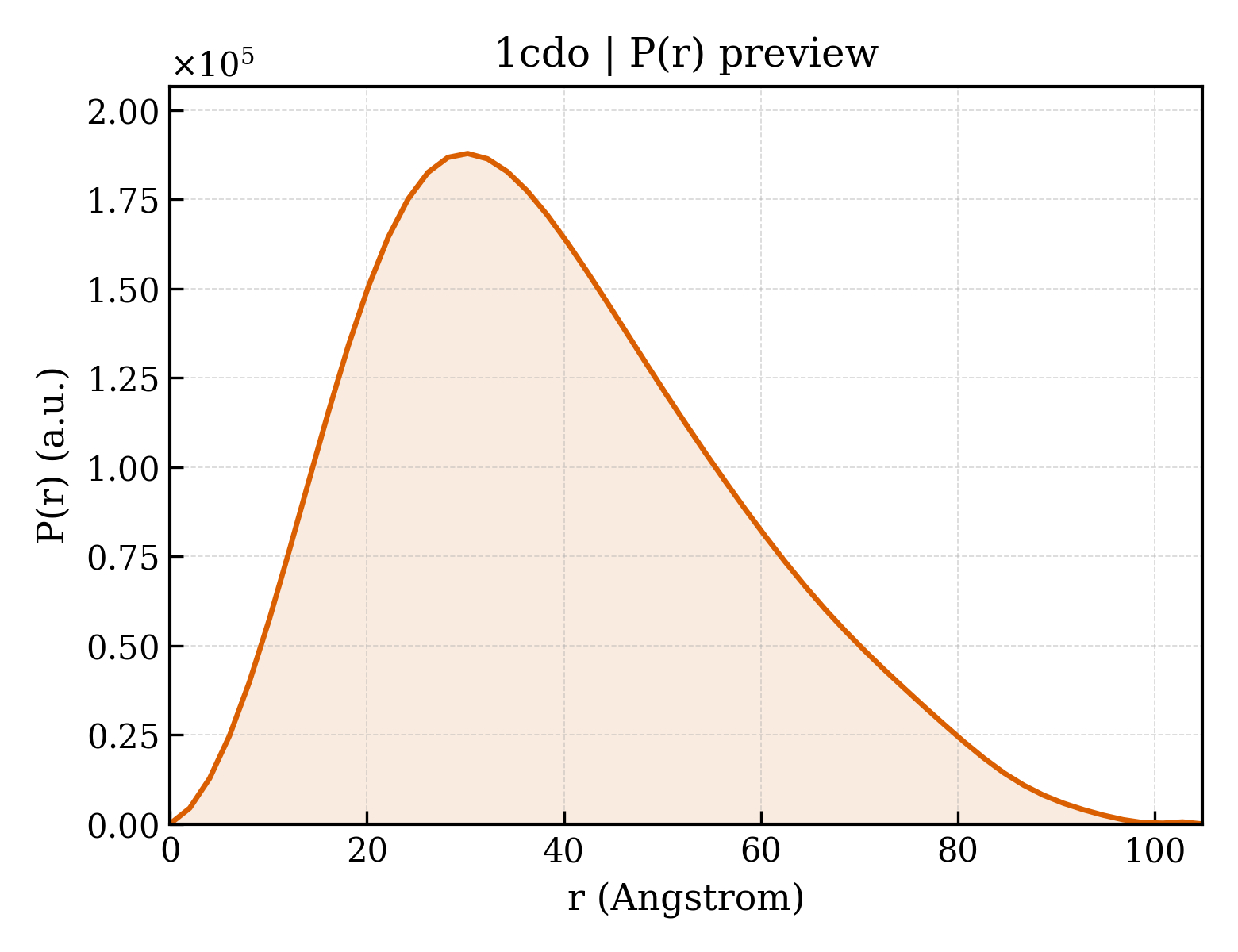

P(r) Distribution

P(r) distribution for 1cdo
▼

1. Structure Basics

entry_id1cdo
deposition_date1995-09-29
titleALCOHOL DEHYDROGENASE (E.C.1.1.1.1) (EE ISOZYME) COMPLEXED WITH NICOTINAMIDE ADENINE DINUCLEOTIDE (NAD), AND ZINC
keywordsOXIDOREDUCTASE, OXIDOREDUCTASE (CH-OH(D)-NAD(A)); OXIDOREDUCTASE (CH-OH(D)-NAD(A))
methodX-RAY DIFFRACTION
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier30.20 Å
rg_electron30.26 Å
i0106115000.00
molecular_weight81591.0 kDa
excluded_volume102120 ų
envelope_volume123150 ų
shell_volume34935 ų
envelope_diameter111.4 Å
shell_rg36.40 Å
envelope_rg30.23 Å
shape_rg30.27 Å
total_rg30.78 Å
total_atoms5698
n_residues748
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax104.8 Å
rg_real30.36 Å
rg_real_error0.96 Å
i0_real1.0610e+08
i0_real_error1.8210e+06
rg_reciprocal30.29 Å
i0_reciprocal106100000.0000
total_estimate0.8502
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary30.2 Å
skewness0.500
kurtosis-0.279
angular_range— – 0.2600 Å−1
current_alpha0.0000
highest_alpha47870000.0000
n_real_points53
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.748; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.853; Smooth: 0.952
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

▶

6. Citations (2)

▶

7. Files & Curves (10)
