SAXSdb — 1ce0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (LEUCINE ZIPPER MODEL H38-P1)

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7SIH0_9HIV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–37； UniProt 1–37 Author chain B； PDBConstruct 1–37； UniProt 1–37 Author chain C； PDBConstruct 1–37； UniProt 1–37

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ce0
Deposition date deposition_date	1999-03-12
Structure title title	TRIMERIZATION SPECIFICITY IN HIV-1 GP41: ANALYSIS WITH A GCN4 LEUCINE ZIPPER MODEL
Keywords keywords	HIV-1 ENVELOPE PROTEIN, GP41, PROTEIN OLIGOMERIZATION, COILED COIL, LEUCINE ZIPPER; HIV-1 ENVELOPE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ce0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

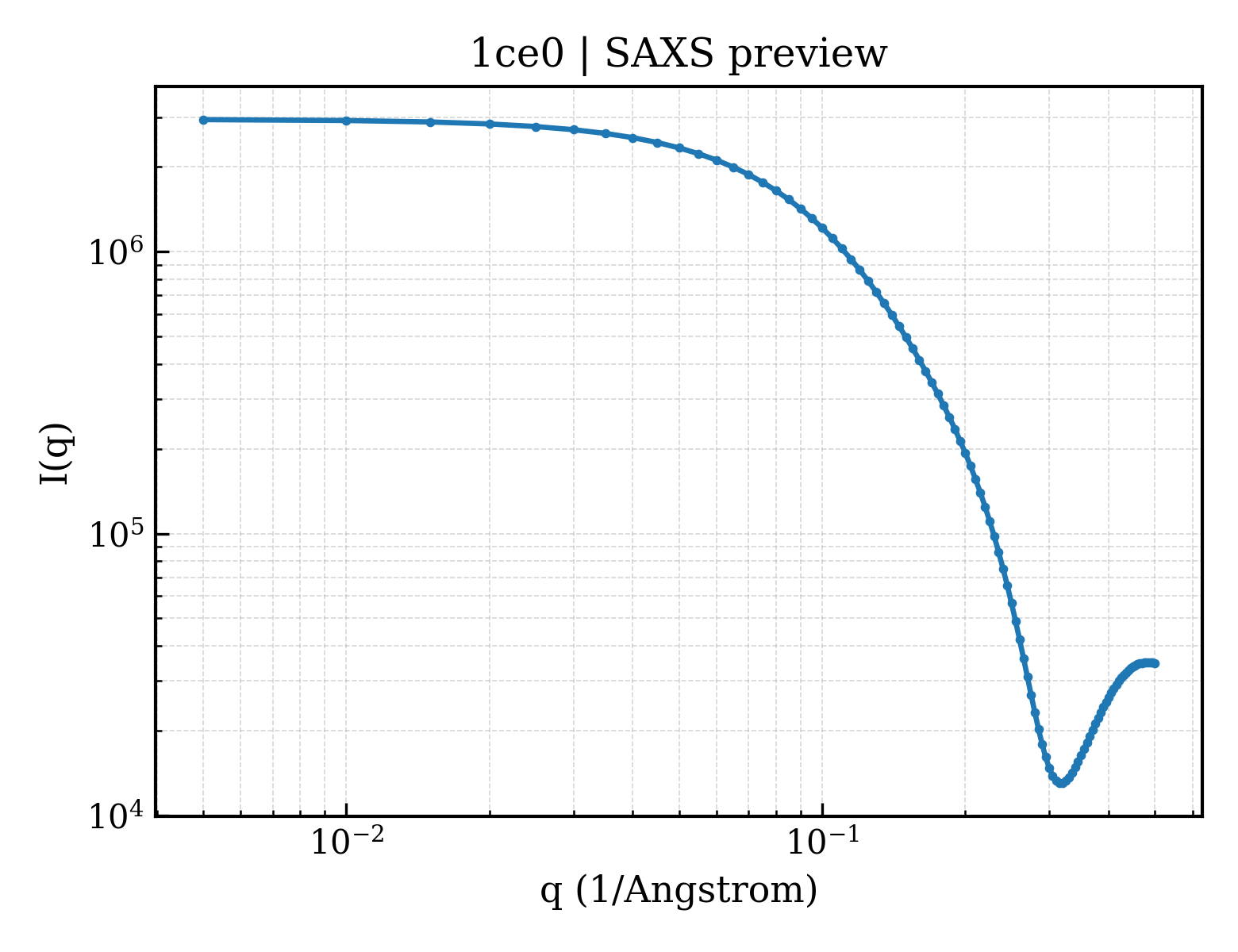

1ce0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

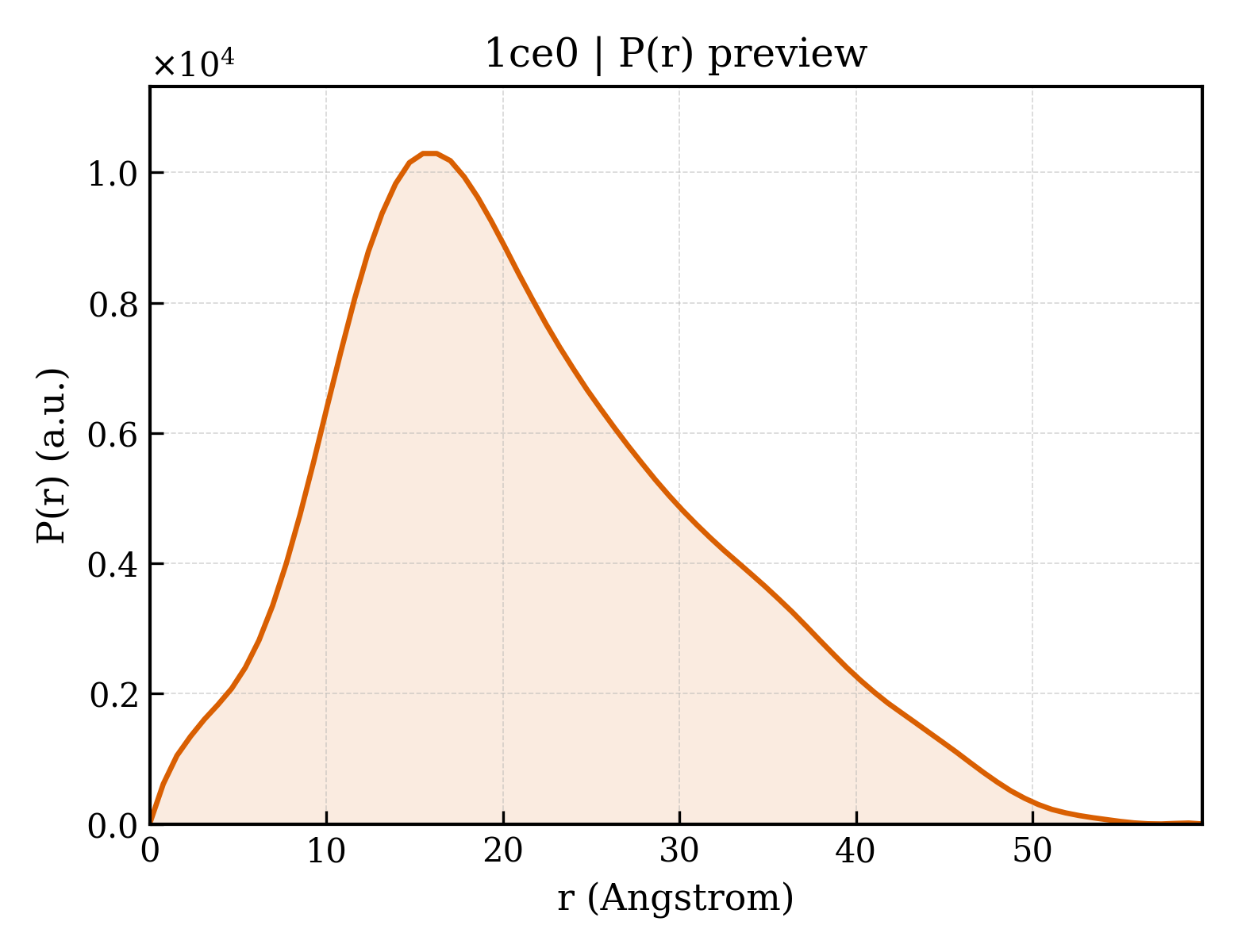

1ce0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.69 Å
Rg (electron density)	16.39 Å
Total Rg	17.30 Å
Atom count	892
Residues	106
Excluded volume	16182 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ce0__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1ce0a_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1ce0b_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

Domain ID domain_id	d1ce0c_
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.3 — Leucine zipper domain
Family Family family	h.1.3.1 — Leucine zipper domain

▶

Unit-cell length a length_a	50.785 Å
Unit-cell length b length_b	50.785 Å
Unit-cell length c length_c	119.251 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 61
Space-group number int_tables_number	169
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.2210
R_free r_free	0.2940

Description description	PROTEIN (LEUCINE ZIPPER MODEL H38-P1)
Molecular weight formula_weight	4529.3 kDa
Source method src_method	man
Copy count entity_count	3

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	970

TRIMERIZATION SPECIFICITY IN HIV-1 GP41: ANALYSIS WITH A GCN4 LEUCINE ZIPPER MODEL

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (LEUCINE ZIPPER MODEL H38-P1)

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ce0__assembly_1__model_1

1ce0__assembly_1__model_1 | I(q)

1ce0__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (3 domains)

7. Citations (3)

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	78
