1ced
THE STRUCTURE OF CYTOCHROME C6 FROM MONORAPHIDIUM BRAUNII, NMR, MINIMIZED AVERAGE STRUCTURE

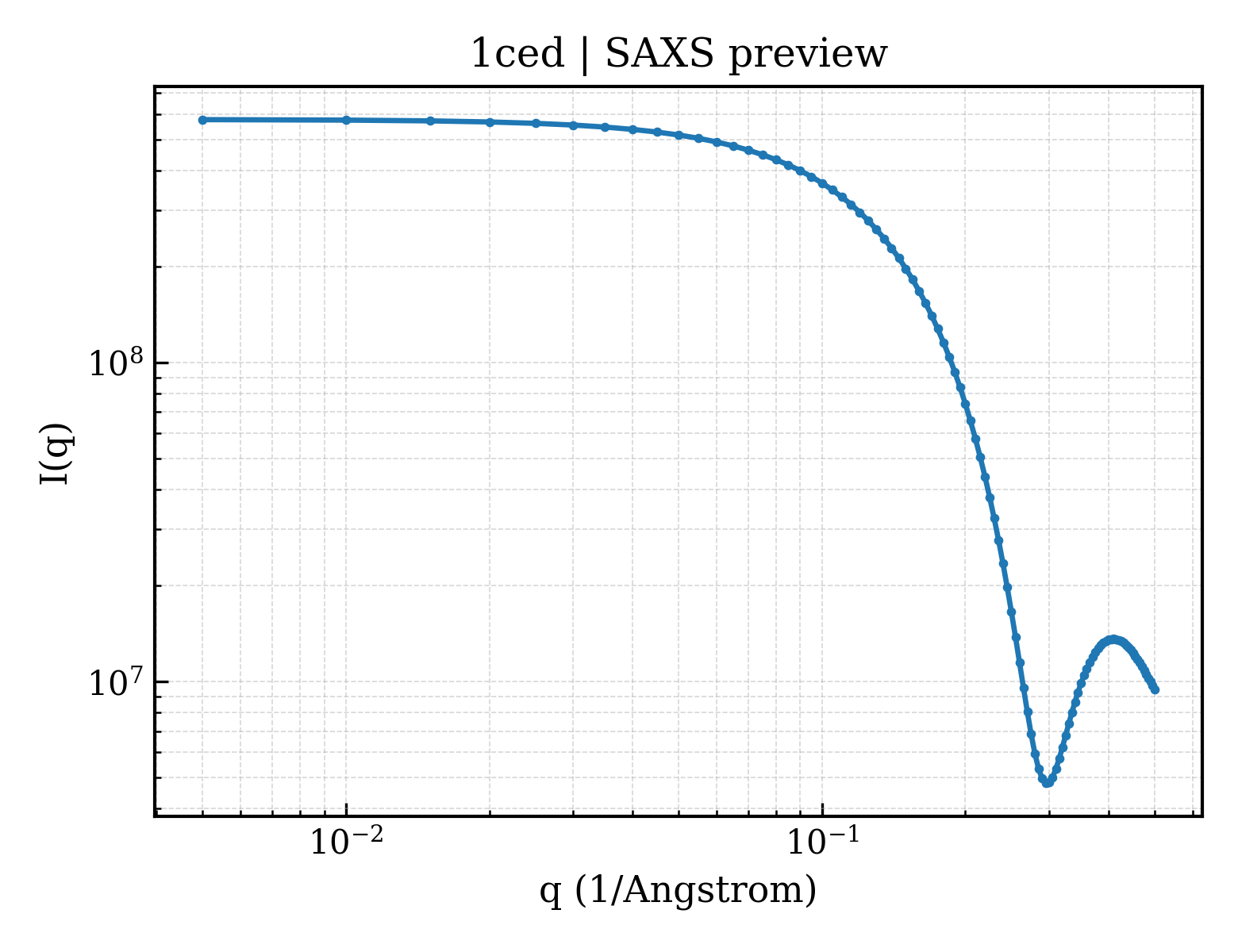

SAXS Profile

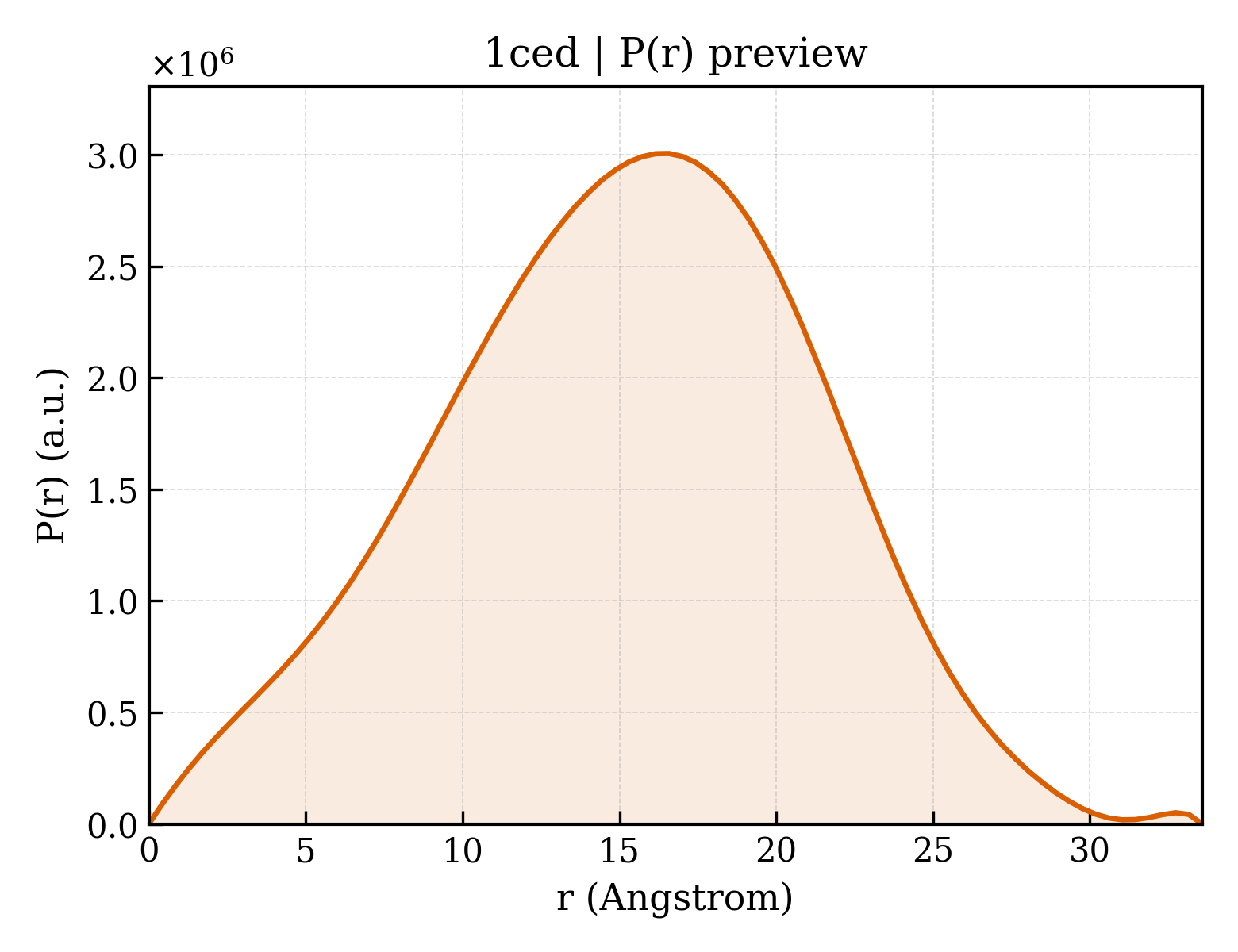

P(r) Distribution
1. Structure Basics
| entry_id | 1ced |
| deposition_date | 1996-03-06 |
| title | THE STRUCTURE OF CYTOCHROME C6 FROM MONORAPHIDIUM BRAUNII, NMR, MINIMIZED AVERAGE STRUCTURE |
| keywords | ELECTRON TRANSPORT, HEME PROTEIN, CHLOROPLAST, THYLAKOID MEMBRANE, ELECTRON TRANSPORT (HEME PROTEIN); ELECTRON TRANSPORT (HEME PROTEIN) |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.68 Å |
| rg_electron | 11.43 Å |
| i0 | 578297000.00 |
| molecular_weight | 199200.0 kDa |
| excluded_volume | 245900 ų |
| envelope_volume | 15178 ų |
| shell_volume | 10546 ų |
| envelope_diameter | 40.3 Å |
| shell_rg | 18.03 Å |
| envelope_rg | 12.47 Å |
| shape_rg | 11.42 Å |
| total_rg | 11.54 Å |
| total_atoms | 14040 |
| n_residues | 1780 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 33.6 Å |
| rg_real | 11.55 Å |
| rg_real_error | 0.17 Å |
| i0_real | 5.7830e+08 |
| i0_real_error | 5.3920e+06 |
| rg_reciprocal | 11.56 Å |
| i0_reciprocal | 578300000.0000 |
| total_estimate | 0.8951 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | -0.097 |
| kurtosis | -0.397 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 157600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.923; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.898 |
