1cer

DETERMINANTS OF ENZYME THERMOSTABILITY OBSERVED IN THE MOLECULAR STRUCTURE OF THERMUS AQUATICUS D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE AT 2.5 ANGSTROMS RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOLO-D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE

Thermus aquaticus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	NICOTINAMIDE-ADENINE-DINUCLEOTIDE × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G3P_THEAQ
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–331； UniProt 1–331 Author chain B； PDBConstruct 1–331； UniProt 1–331 Author chain C； PDBConstruct 1–331； UniProt 1–331 Author chain D； PDBConstruct 1–331； UniProt 1–331 Author chain O； PDBConstruct 1–331； UniProt 1–331 Author chain P； PDBConstruct 1–331； UniProt 1–331 Author chain Q； PDBConstruct 1–331； UniProt 1–331 Author chain R； PDBConstruct 1–331； UniProt 1–331

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cer
Deposition date deposition_date	1995-11-11
Structure title title	DETERMINANTS OF ENZYME THERMOSTABILITY OBSERVED IN THE MOLECULAR STRUCTURE OF THERMUS AQUATICUS D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE AT 2.5 ANGSTROMS RESOLUTION
Keywords keywords	GLYCOLYSIS, OXIDOREDUCTASE, NAD, OXIDOREDUCTASE (ALDEHYDE(D)-NAD(A)); OXIDOREDUCTASE (ALDEHYDE(D)-NAD(A))
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cer__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1cer__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

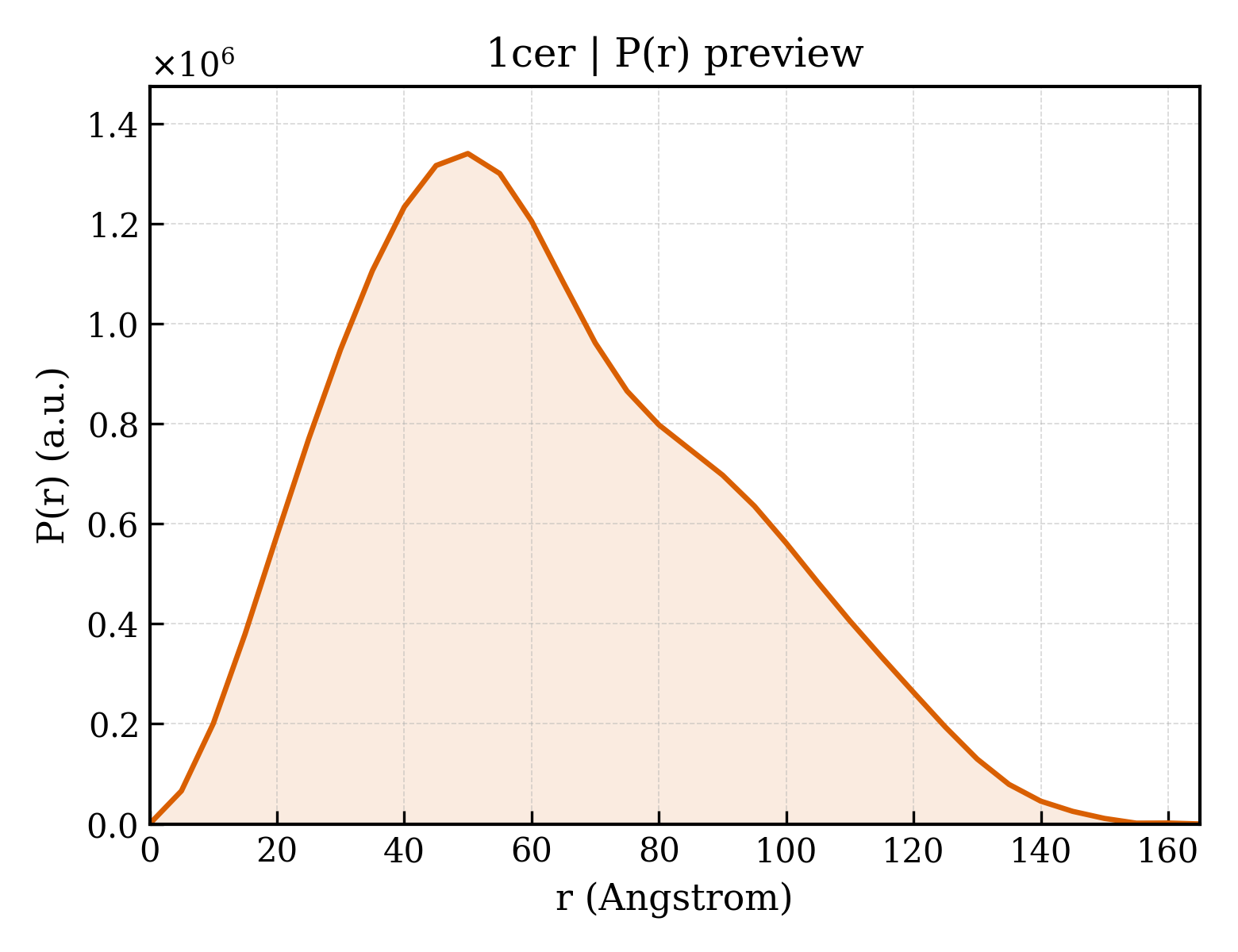

1cer__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.33 Å
Rg (electron density)	31.44 Å
Total Rg	32.11 Å
Atom count	10113
Residues	1324
Excluded volume	180310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cer__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1cer__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1cera1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cera2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerd2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cero1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cero2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerp1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerp2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerq1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerq2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cerr1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cerr2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

CATH v4.4 (16 domains)

Domain ID domain_id	1cerA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerO01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerO02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerP01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerP02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerQ01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerQ02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cerR01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cerR02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

Unit-cell length a length_a	144.770 Å
Unit-cell length b length_b	148.770 Å
Unit-cell length c length_c	149.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	—

Description description	HOLO-D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE
Molecular weight formula_weight	35941.3 kDa
EC 编号 ec_number	1.2.1.12
Source method src_method	man
Copy count entity_count	8

Polymer type type	polypeptide(L)
Chain IDs strand_id	O,P,Q,R,A,B,C,D
Atom count atom_count	20226

DETERMINANTS OF ENZYME THERMOSTABILITY OBSERVED IN THE MOLECULAR STRUCTURE OF THERMUS AQUATICUS D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE AT 2.5 ANGSTROMS RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOLO-D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1cer__assembly_1__model_1

1cer__assembly_1__model_1 | I(q)

1cer__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (2)

Source organism organism	Thermus aquaticus
NCBI taxonomy ID ncbi_taxonomy_id	271
Host organism host_organism	Escherichia coli

Description description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
Molecular weight formula_weight	663.4 kDa
Source method src_method	syn
Copy count entity_count	8

DETERMINANTS OF ENZYME THERMOSTABILITY OBSERVED IN THE MOLECULAR STRUCTURE OF THERMUS AQUATICUS D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE AT 2.5 ANGSTROMS RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

HOLO-D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1cer__assembly_1__model_1

1cer__assembly_1__model_1 | I(q)

1cer__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. Citations (2)
