1cet

CHLOROQUINE BINDS IN THE COFACTOR BINDING SITE OF PLASMODIUM FALCIPARUM LACTATE DEHYDROGENASE.

Method: X-RAY DIFFRACTION D_max: 70.9 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	1cet
deposition_date	1999-03-10
title	CHLOROQUINE BINDS IN THE COFACTOR BINDING SITE OF PLASMODIUM FALCIPARUM LACTATE DEHYDROGENASE.
keywords	OXIDOREDUCTASE, TRICARBOXYLIC ACID CYCLE, INHIBITOR; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.65 Å
rg_electron	19.50 Å
i0	17844400.00
molecular_weight	33183.0 kDa
excluded_volume	42166 Å³
envelope_volume	48437 Å³
shell_volume	20757 Å³
envelope_diameter	69.1 Å
shell_rg	26.09 Å
envelope_rg	19.72 Å
shape_rg	19.51 Å
total_rg	20.40 Å
total_atoms	2327
n_residues	305
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

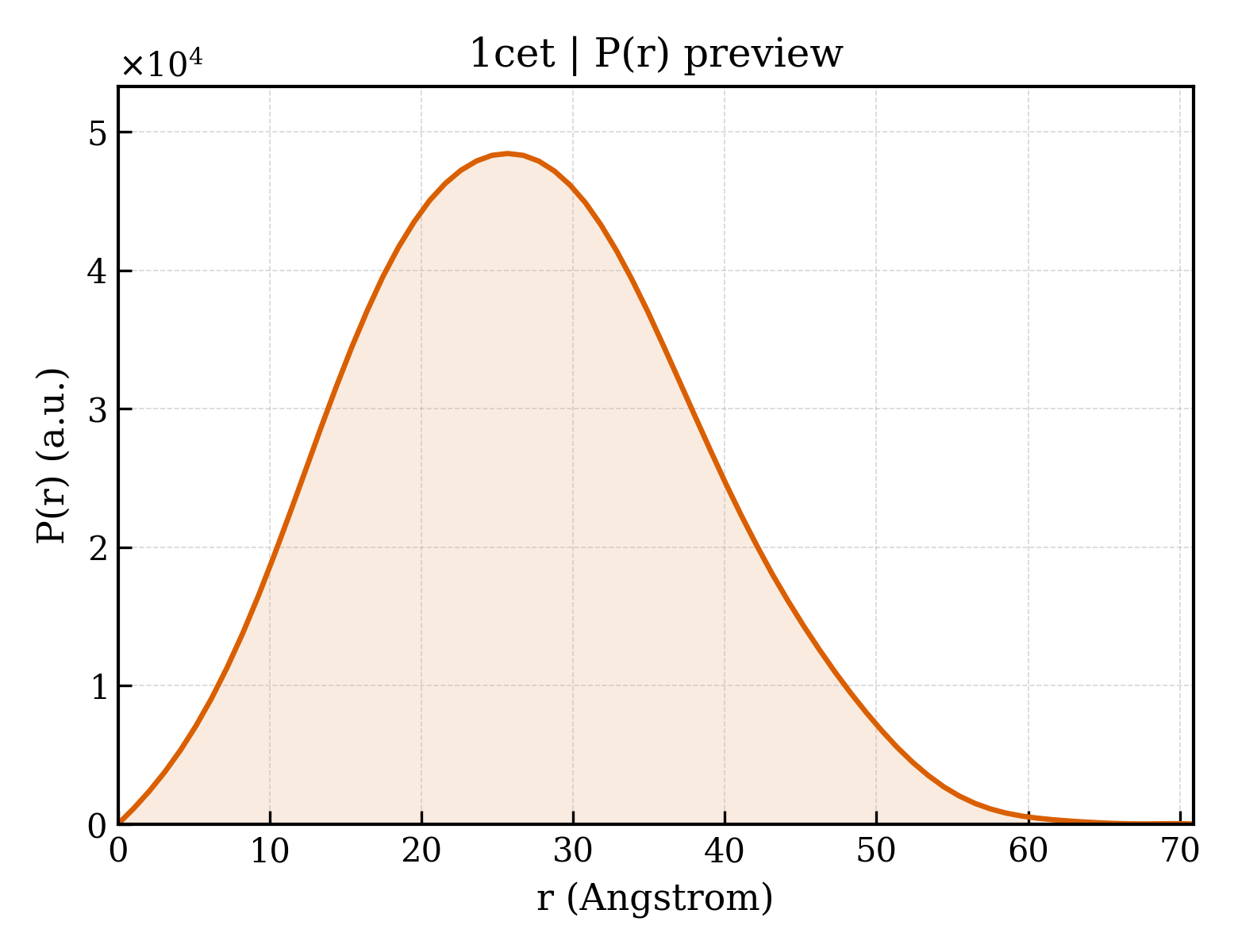

3. P(r) Analysis (GNOM)

dmax	70.9 Å
rg_real	20.56 Å
rg_real_error	0.43 Å
i0_real	1.7840e+07
i0_real_error	2.1990e+05
rg_reciprocal	20.58 Å
i0_reciprocal	17840000.0000
total_estimate	0.8720
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	25.7 Å
skewness	0.217
kurtosis	-0.369
angular_range	— – 0.3850 Å⁻¹
current_alpha	0.0000
highest_alpha	3327000.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.778; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.999

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	PROTEIN (L-LACTATE DEHYDROGENASE)
formula_weight	34162.8 kDa
ec_number	1.1.1.27
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2579

MAPKAKIVLVGSGMIGGVMATLIVQKNLGDVVLFDIVKNMPHGKALDTSHTNVMAYSNCKVSGSNTYDDLAGSDVVIVTAGFTKAPGKSDKEWNRLDLLPLNNKIMIEIGGHIKKNCPNAFIIVVTNPVDVMVQLLHQHSGVPKNKIIGLGGVLDTSRLKYYISQKLNVCPRDVNAHIVGAHGNKMVLLKRYITVGGIPLQEFINNKLISDAELEAIFDRTVNTALEIVNLHASPYVAPAAAIIEMAESYLKDLKKVLICSTLLEGQYGHSDIFGGTPVVLGANGVEQVIELQLNSEEKAKFDEAIAETKRMKALA

Source

organism	Plasmodium falciparum
common_name	malaria parasite P. falciparum
ncbi_taxonomy_id	5833
host_organism	Escherichia coli

Entity 2 non-polymer

description	N4-(7-CHLORO-QUINOLIN-4-YL)-N1,N1-DIETHYL-PENTANE-1,4-DIAMINE
formula_weight	319.9 kDa
src_method	syn
entity_count	1

Entity 3 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	252

▶

6. Citations (2)

▶

length_a	79.930 Å
length_b	85.440 Å
length_c	92.190 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	I 2 2 2
int_tables_number	23
crystal_system	—

resolution	2.050 Å
resolution_low	20.000 Å
r_factor	—
r_work	0.1540
r_free	0.1930

fit	/app/data/saxs_computation/ce/1cet/1cet.fit
pddf	/app/data/pr_computation/ce/1cet/1cet.pr.out
profile	/app/data/saxs_computation/ce/1cet/1cet.dat
