THREE-DIMENSIONAL STRUCTURE OF D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE FROM THE HYPERTHERMOPHILIC ARCHAEON METHANOTHERMUS FERVIDUS

Method: X-RAY DIFFRACTION D_max: 99.7 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE)

Methanothermus fervidus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain O； UniProt 1–337 Chain P； UniProt 1–337 Chain Q； UniProt 1–337 Chain R； UniProt 1–337	Not recorded	SO4 SULFATE ION × 4 NAP NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；pH 6.50	Resolution 2.10 Å R-free 0.257

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	G3P_METFE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain O； PDBConstruct 1–337； UniProt 1–337 Author chain P； PDBConstruct 1–337； UniProt 1–337 Author chain Q； PDBConstruct 1–337； UniProt 1–337 Author chain R； PDBConstruct 1–337； UniProt 1–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

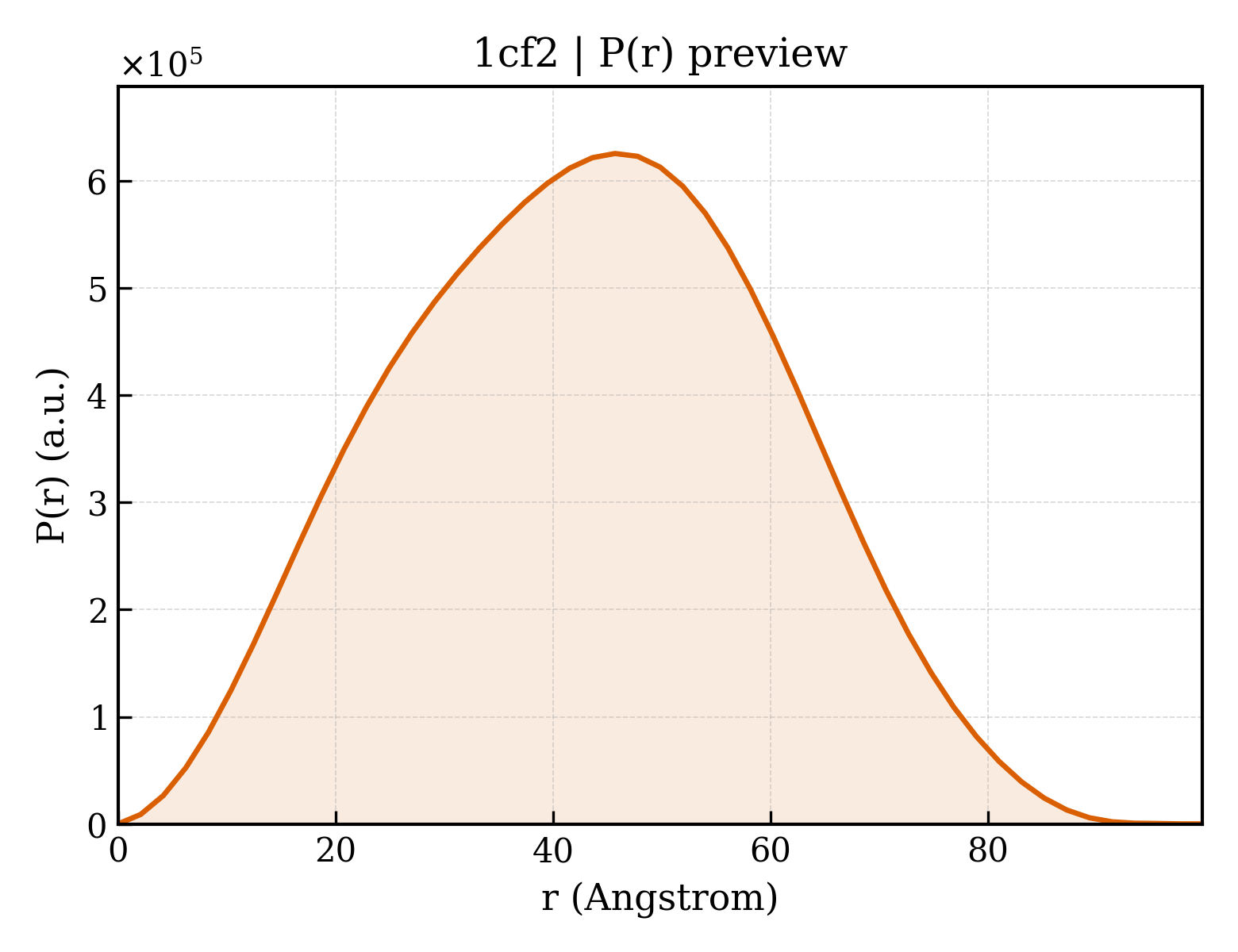

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cf2
Deposition date deposition_date	1999-03-24
Structure title title	THREE-DIMENSIONAL STRUCTURE OF D-GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE FROM THE HYPERTHERMOPHILIC ARCHAEON METHANOTHERMUS FERVIDUS
Keywords keywords	OXYDOREDUCTASE, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.23 Å
Radius of gyration Rg (electron density) rg_electron	32.36 Å
Forward intensity I(0) i0	368246000.00
Molecular weight molecular_weight	152350.0 kDa
Excluded volume excluded_volume	189800 Å³
Envelope volume envelope_volume	223020 Å³
Hydration-shell volume shell_volume	54348 Å³
Envelope diameter envelope_diameter	98.9 Å
Shell Rg shell_rg	41.65 Å
Envelope Rg envelope_rg	32.22 Å
Shape Rg shape_rg	32.39 Å
Total Rg total_rg	32.92 Å
Total atoms total_atoms	10660
Residues n_residues	1344
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	99.7 Å
Rg (real space) rg_real	32.93 Å
Rg uncertainty (real space) rg_real_error	0.55 Å
I(0) (real space) i0_real	3.6820e+08
I(0) uncertainty (real space) i0_real_error	5.7670e+06
Rg (reciprocal space) rg_reciprocal	33.06 Å
I(0) (reciprocal space) i0_reciprocal	368300000.0000
Solution quality estimate total_estimate	0.9064
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	45.7 Å
Skewness Skewness skewness	0.029
Kurtosis Kurtosis kurtosis	-0.602
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	265400000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.973

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PROTEIN (GLYCERALDEHYDE-3-PHOSPHATE DEHYDROGENASE)
Molecular weight formula_weight	37454.8 kDa
EC 编号 ec_number	1.2.1.12
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,R,O,Q
Atom count atom_count	11620

MKAVAINGYGTVGKRVADAIAQQDDMKVIGVSKTRPDFEARMALKKGYDLYVAIPERVKLFEKAGIEVAGTVDDMLDEADIVIDCTPEGIGAKNLKMYKEKGIKAIFQGGEKHEDIGLSFNSLSNYEESYGKDYTRVVSCNTTGLCRTLKPLHDSFGIKKVRAVIVRRGADPAQVSKGPINAIIPNPPKLPSHHGPDVKTVLDINIDTMAVIVPTTLMHQHNVMVEVEETPTVDDIIDVFEDTPRVILISAEDGLTSTAEIMEYAKELGRSRNDLFEIPVWRESITVVDNEIYYMQAVHQESDIVPENVDAVRAILEMEEDKYKSINKTNKAMNILQ

来源 Source

来源生物 organism	Methanothermus fervidus
NCBI Class编号 ncbi_taxonomy_id	2180
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	960

▼

7. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1cf2o1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cf2o2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cf2p1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cf2p2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cf2q1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cf2q2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

Domain ID domain_id	d1cf2r1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d1cf2r2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.1 — GAPDH-like

CATH v4.4 (8 domains)

Domain ID domain_id	1cf2O01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cf2O02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cf2P01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cf2P02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cf2Q01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cf2Q02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	1cf2R01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	1cf2R02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	136.660 Å
Unit-cell length b length_b	153.280 Å
Unit-cell length c length_c	74.920 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.1940
R_free r_free	0.2570
