SAXSdb — 1cfb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DROSOPHILA NEUROGLIAN

Drosophila melanogaster

UniProt P20241

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 SULFATE ION × 1 SODIUM ION × 1 water × 1	Consistent with protein count
2	Other combination	Homooligomer	Protein 4 其他Polymer 4	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 SULFATE ION × 4 SODIUM ION × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NRG_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–205； UniProt 610–814

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cfb
Deposition date deposition_date	1994-08-27
Structure title title	CRYSTAL STRUCTURE OF TANDEM TYPE III FIBRONECTIN DOMAINS FROM DROSOPHILA NEUROGLIAN AT 2.0 ANGSTROMS
Keywords keywords	NEURAL ADHESION MOLECULE; NEURAL ADHESION MOLECULE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1cfb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1cfb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

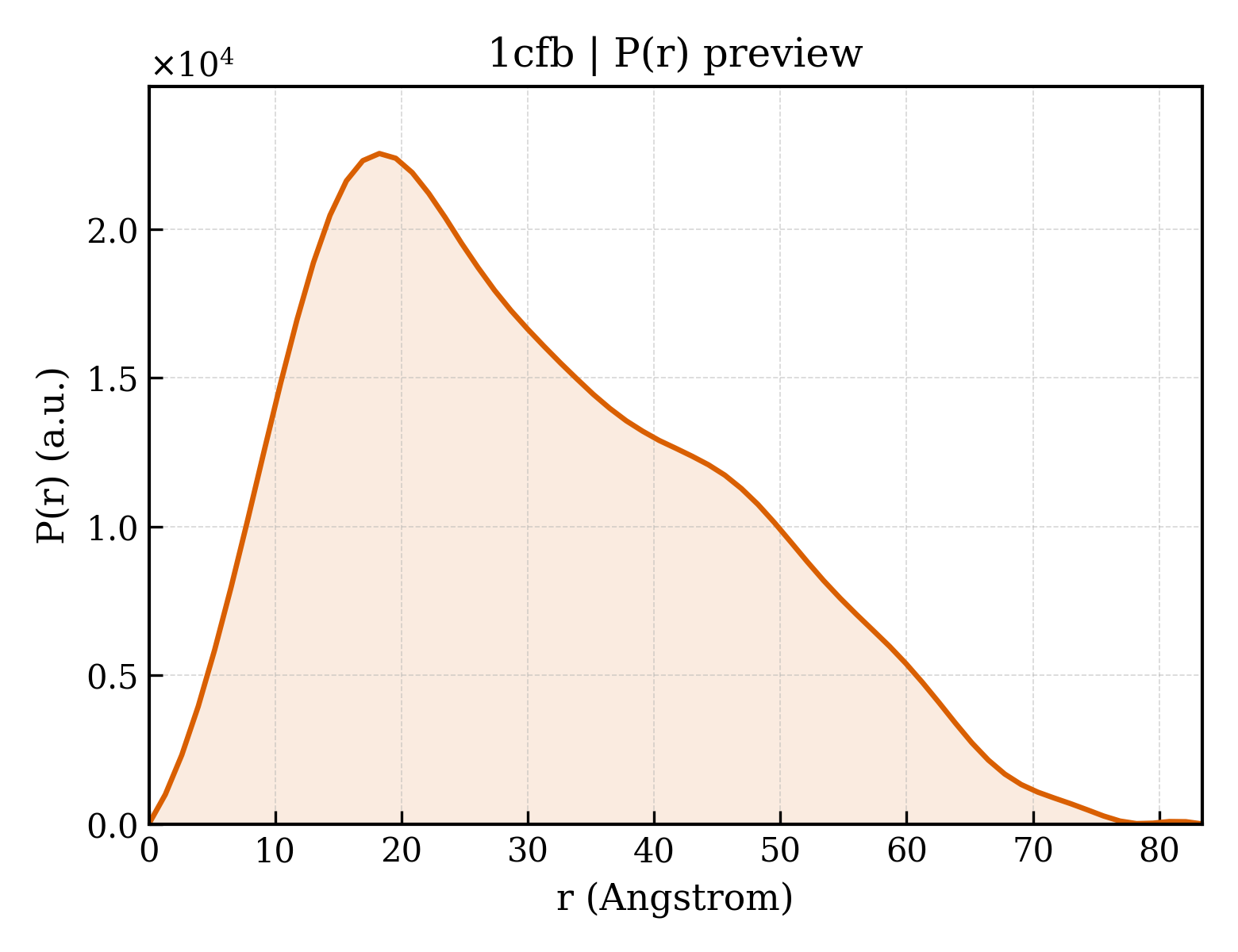

1cfb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.73 Å
Rg (electron density)	23.41 Å
Total Rg	24.17 Å
Atom count	1678
Residues	205
Excluded volume	29410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1cfb__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1cfb__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DROSOPHILA NEUROGLIAN
Molecular weight formula_weight	23043.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1915

IVQDVPNAPKLTGITCQADKAEIHWEQQGDNRSPILHYTIQFNTSFTPASWDAAYEKVPNTDSSFVVQMSPWANYTFRVIAFNKIGASPPSAHSDSCTTQPDVPFKNPDNVVGQGTEPNNLVISWTPMPEIEHNAPNFHYYVSWKRDIPAAAWENNNIFDWRQNNIVIADQPTFVKYLIKVVAINDRGESNVAAEEVVGYSGEDR

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	237

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1cfba1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

Domain ID domain_id	d1cfba2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.2 — Fibronectin type III
Family Family family	b.1.2.1 — Fibronectin type III

CATH v4.4 (2 domains)

Domain ID domain_id	1cfbA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1cfbA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	241.800 Å
Unit-cell length b length_b	241.800 Å
Unit-cell length c length_c	241.800 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	96

Space group space_group	F 4 3 2
Space-group number int_tables_number	209
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	5.000 Å
R factor r_factor	0.2020
R_work r_work	0.2020
R_free r_free	—

CRYSTAL STRUCTURE OF TANDEM TYPE III FIBRONECTIN DOMAINS FROM DROSOPHILA NEUROGLIAN AT 2.0 ANGSTROMS
