1cfw
GA-SUBSTITUTED DESULFOREDOXIN
SAXS Profile

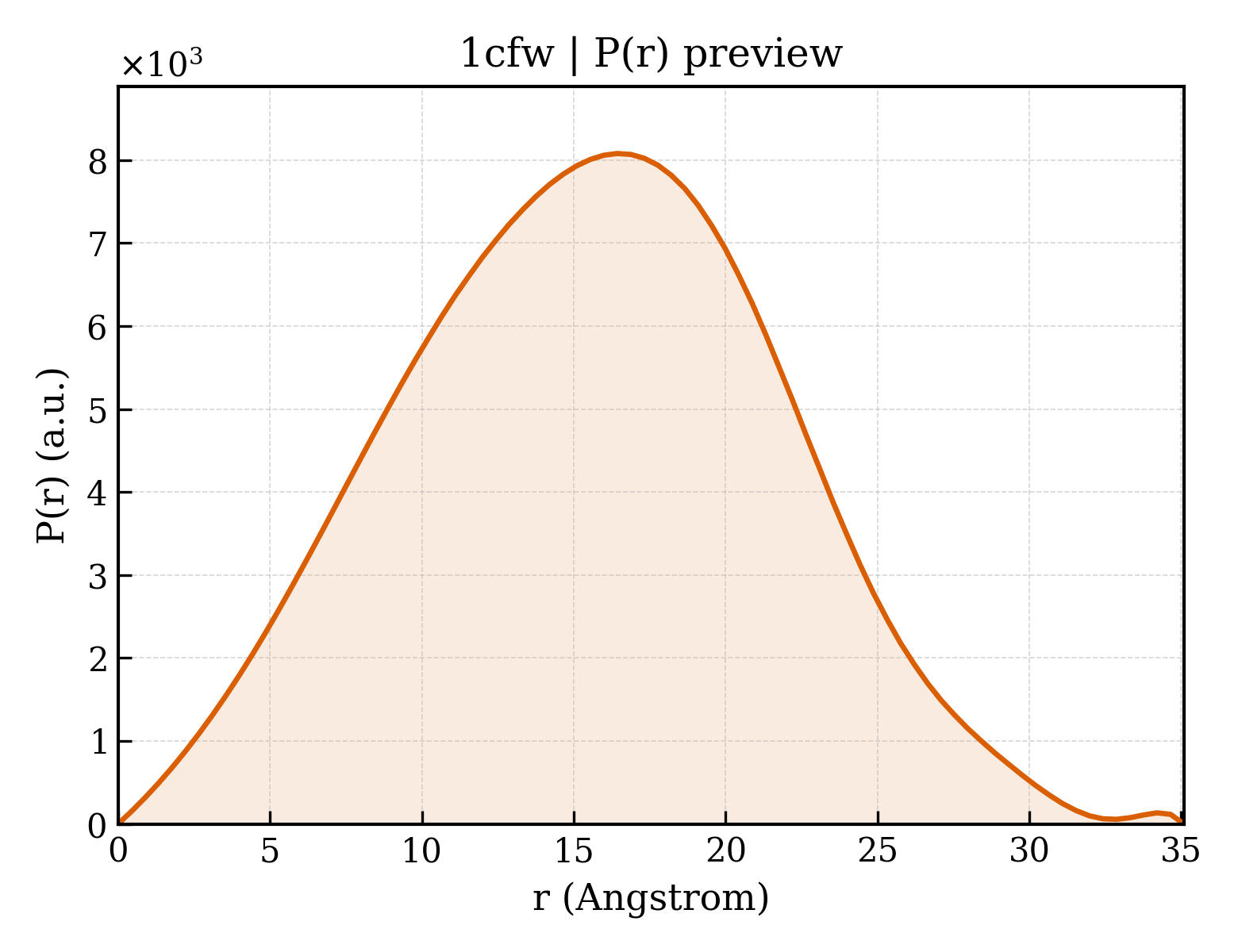

P(r) Distribution
1. Structure Basics
| entry_id | 1cfw |
| deposition_date | 1999-03-22 |
| title | GA-SUBSTITUTED DESULFOREDOXIN |
| keywords | RUBREDOXIN TYPE PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.91 Å |
| rg_electron | 10.58 Å |
| i0 | 1654100.00 |
| molecular_weight | 7836.0 kDa |
| excluded_volume | 9378 ų |
| envelope_volume | 10192 ų |
| shell_volume | 8294 ų |
| envelope_diameter | 31.8 Å |
| shell_rg | 16.09 Å |
| envelope_rg | 10.87 Å |
| shape_rg | 10.59 Å |
| total_rg | 11.86 Å |
| total_atoms | 529 |
| n_residues | 72 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.1 Å |
| rg_real | 11.82 Å |
| rg_real_error | 0.16 Å |
| i0_real | 1.6540e+06 |
| i0_real_error | 1.3990e+04 |
| rg_reciprocal | 11.83 Å |
| i0_reciprocal | 1654000.0000 |
| total_estimate | 0.9025 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 16.4 Å |
| skewness | 0.034 |
| kurtosis | -0.426 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 149700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.918 |
