1cfy
YEAST COFILIN, MONOCLINIC CRYSTAL FORM
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cfy |
| deposition_date | 1996-11-26 |
| title | YEAST COFILIN, MONOCLINIC CRYSTAL FORM |
| keywords | ACTIN-BINDING, CYTOSKELETON, ACTIN-BINDING PROTEIN; ACTIN-BINDING PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 23.44 Å |
| rg_electron | 22.69 Å |
| i0 | 15237900.00 |
| molecular_weight | 29902.0 kDa |
| excluded_volume | 37573 ų |
| envelope_volume | 46116 ų |
| shell_volume | 17917 ų |
| envelope_diameter | 84.3 Å |
| shell_rg | 27.80 Å |
| envelope_rg | 22.83 Å |
| shape_rg | 22.66 Å |
| total_rg | 23.49 Å |
| total_atoms | 2112 |
| n_residues | 266 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

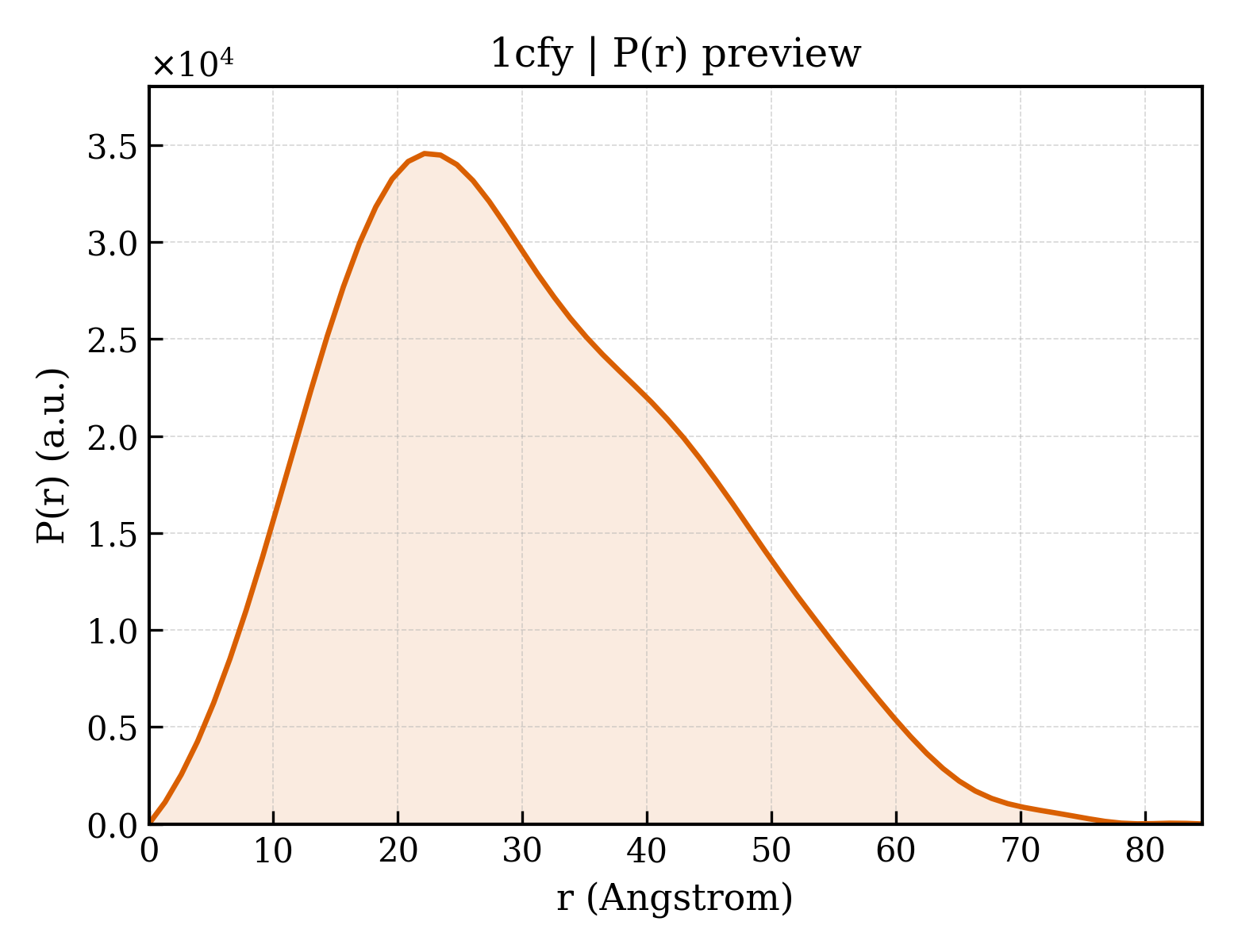

3. P(r) Analysis (GNOM)
| dmax | 84.6 Å |
| rg_real | 23.55 Å |
| rg_real_error | 0.80 Å |
| i0_real | 1.5240e+07 |
| i0_real_error | 2.0780e+05 |
| rg_reciprocal | 23.53 Å |
| i0_reciprocal | 15240000.0000 |
| total_estimate | 0.8308 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.1 Å |
| skewness | 0.431 |
| kurtosis | -0.400 |
| angular_range | — – 0.3400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3681000.0000 |
| n_real_points | 66 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.686; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.739; Smooth: 0.999 |
