1cg5

DEOXY FORM HEMOGLOBIN FROM DASYATIS AKAJEI

Method: X-RAY DIFFRACTION D_max: 61.9 Å Quality: EXCELLENT

SAXS Profile

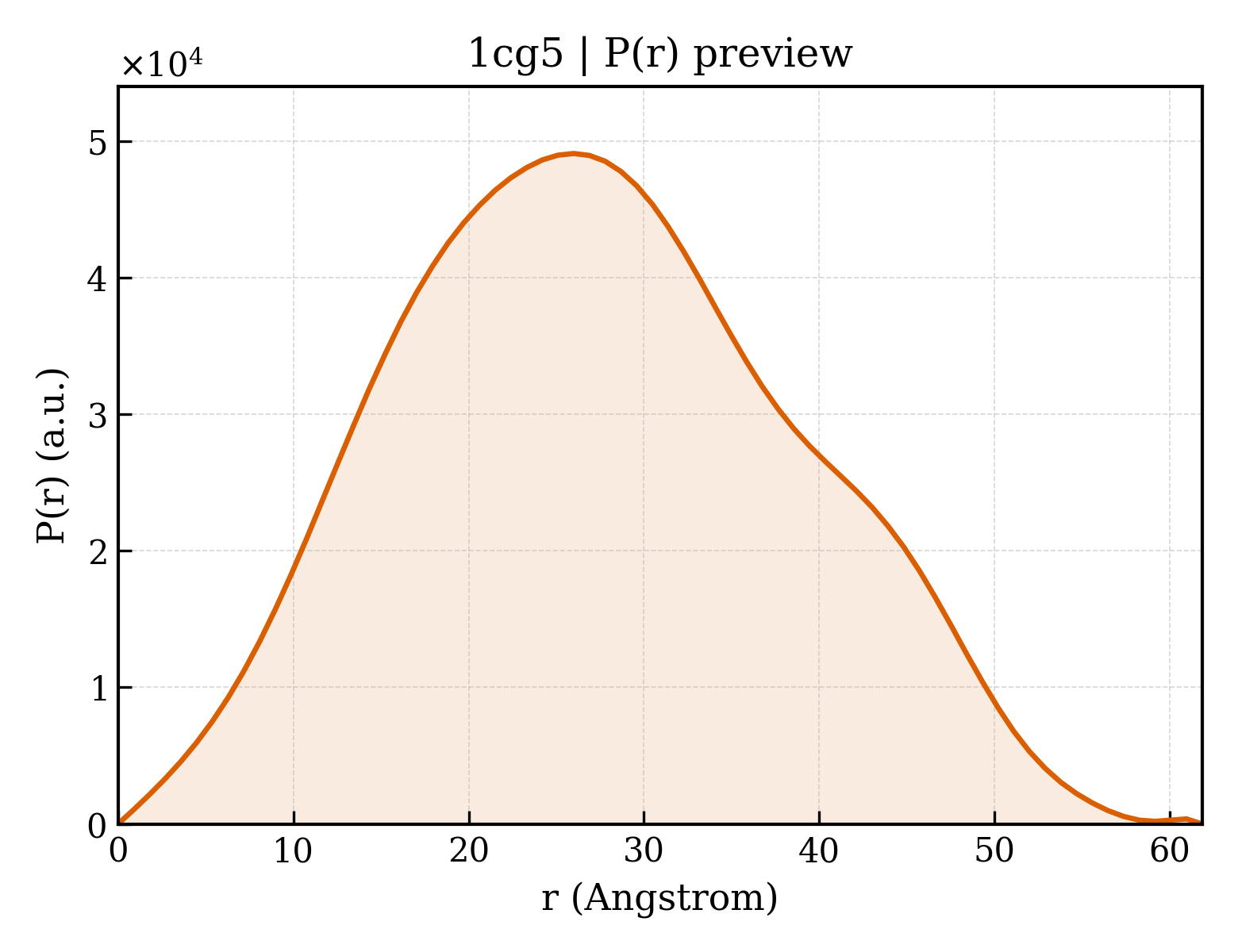

P(r) Distribution

▼

1. Structure Basics

entry_id	1cg5
deposition_date	1999-03-26
title	DEOXY FORM HEMOGLOBIN FROM DASYATIS AKAJEI
keywords	OXYGEN TRANSPORT; OXYGEN TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.99 Å
rg_electron	19.70 Å
i0	18403500.00
molecular_weight	33359.0 kDa
excluded_volume	42079 Å³
envelope_volume	49266 Å³
shell_volume	20800 Å³
envelope_diameter	61.8 Å
shell_rg	26.00 Å
envelope_rg	19.83 Å
shape_rg	19.67 Å
total_rg	20.65 Å
total_atoms	2358
n_residues	282
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	61.9 Å
rg_real	20.89 Å
rg_real_error	0.27 Å
i0_real	1.8400e+07
i0_real_error	2.3140e+05
rg_reciprocal	20.91 Å
i0_reciprocal	18400000.0000
total_estimate	0.9123
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	26.0 Å
skewness	0.162
kurtosis	-0.567
angular_range	— – 0.3800 Å⁻¹
current_alpha	0.0000
highest_alpha	3277000.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.959

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	PROTEIN (HEMOGLOBIN)
formula_weight	15861.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	2509

VLSSQNKKAIEELGNLIKANAEAWGADALARLFELHPQTKTYFSKFSGFEACNEQVKKHGKRVMNALADATHHLDNLHLHLEDLARKHGENLLVDPHNFHLFADCIVVTLAVNLQAFTPVTHCAVDKFLELVAYELSSCYR

Entity 2 polymer

description	PROTEIN (HEMOGLOBIN)
formula_weight	16315.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

VKLSEDQEHYIKGVWKDVDHKQITAKALERVFVVYPWTTRLFSKLQGLFSANDIGVQQHADKVQRALGEAIDDLKKVEINFQNLSGKHQEIGVDTQNFKLLGQTFMVELALHYKKTFRPKEHAAAYKFFRLVAEALSSNYH

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	2

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	151

▶

6. Citations (1)

▶

length_a	77.760 Å
length_b	77.760 Å
length_c	99.320 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 1 2
int_tables_number	151
crystal_system	—

resolution	1.600 Å
resolution_low	8.000 Å
r_factor	—
r_work	0.1910
r_free	0.2320
