1ch9

RECOMBINANT SPERM WHALE MYOGLOBIN H97Q MUTANT (MET)

Method: X-RAY DIFFRACTION D_max: 51.9 Å Quality: GOOD

SAXS Profile

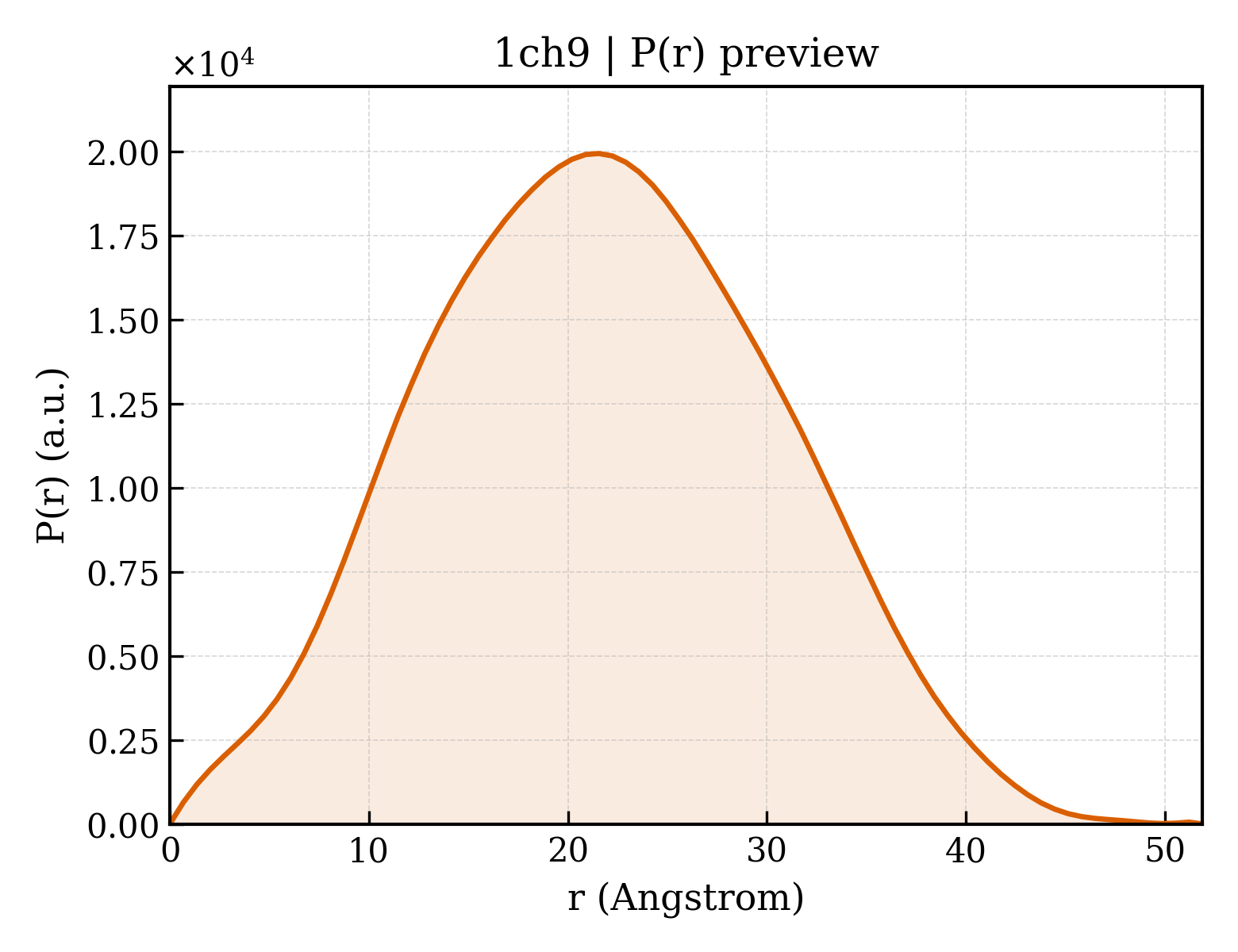

P(r) Distribution

▼

1. Structure Basics

entry_id	1ch9
deposition_date	1999-03-31
title	RECOMBINANT SPERM WHALE MYOGLOBIN H97Q MUTANT (MET)
keywords	OXYGEN TRANSPORT, HEME, MUSCLE PROTEIN, OXYGEN STORAGE-TRANSPORT COMPLEX; OXYGEN STORAGE/TRANSPORT
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	16.65 Å
rg_electron	15.23 Å
i0	5800460.00
molecular_weight	18037.0 kDa
excluded_volume	22853 Å³
envelope_volume	25178 Å³
shell_volume	14058 Å³
envelope_diameter	51.5 Å
shell_rg	20.94 Å
envelope_rg	15.38 Å
shape_rg	15.20 Å
total_rg	16.40 Å
total_atoms	1272
n_residues	154
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	51.9 Å
rg_real	16.54 Å
rg_real_error	0.27 Å
i0_real	5.8000e+06
i0_real_error	6.2050e+04
rg_reciprocal	16.56 Å
i0_reciprocal	5800000.0000
total_estimate	0.8970
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	21.6 Å
skewness	0.086
kurtosis	-0.466
angular_range	— – 0.4800 Å⁻¹
current_alpha	0.0000
highest_alpha	881300.0000
n_real_points	78
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	PROTEIN (MYOGLOBIN)
formula_weight	17355.1 kDa
mutation	INITIATOR MET, H97Q, D122N
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	1387

MVLSEGEWQLVLHVWAKVEADVAGHGQDILIRLFKSHPETLEKFDRFKHLKTEAEMKASEDLKKHGVTVLTALGAILKKKGHHEAELKPLAQSHATKQKIPIKYLEFISEAIIHVLHSRHPGNFGADAQGAMNKALELFRKDIAAKYKELGYQG

Source

organism	Physeter catodon
common_name	sperm whale
ncbi_taxonomy_id	9755
host_organism	Escherichia coli

Entity 2 non-polymer

description	SULFATE ION
formula_weight	96.1 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	115

▶

6. Citations (1)

▶

length_a	91.597 Å
length_b	91.597 Å
length_c	46.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 6
int_tables_number	168
crystal_system	—

resolution	1.800 Å
resolution_low	5.000 Å
r_factor	0.1466
r_work	—
r_free	0.1893
