1chd
CHEB METHYLESTERASE DOMAIN

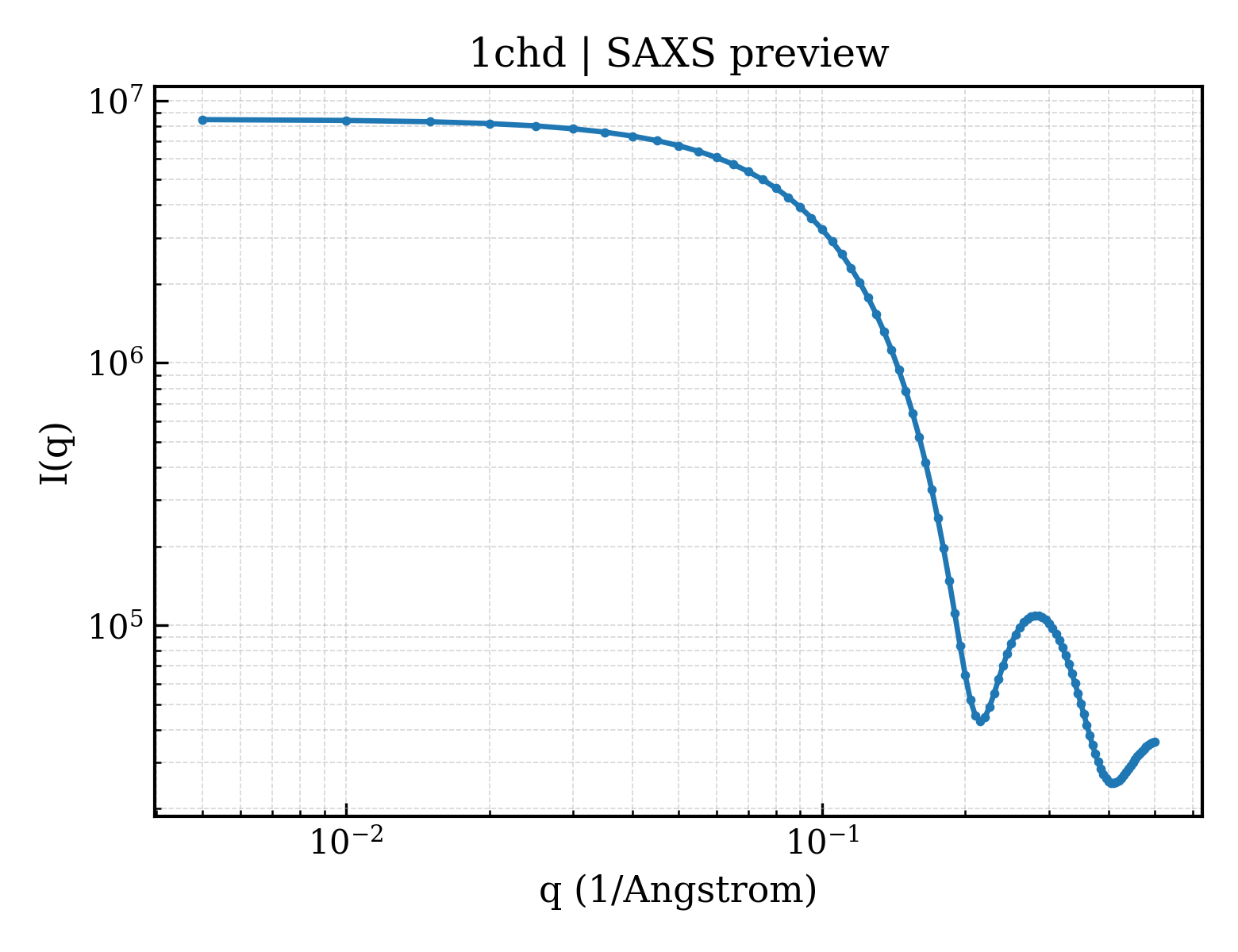

SAXS Profile

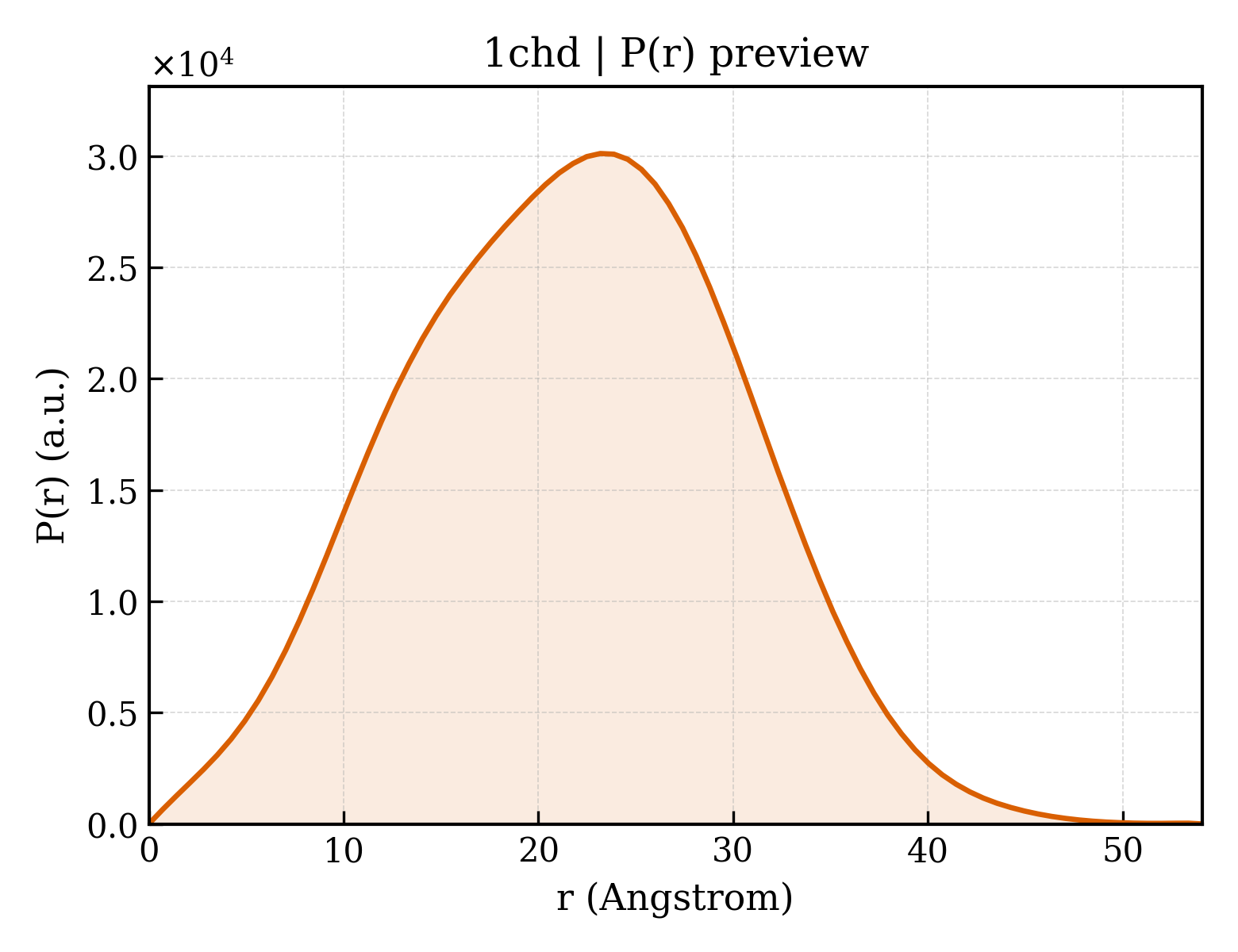

P(r) Distribution
1. Structure Basics
| entry_id | 1chd |
| deposition_date | 1995-03-09 |
| title | CHEB METHYLESTERASE DOMAIN |
| keywords | CHEMOTAXIS PROTEIN, SERINE HYDROLASE, CARBOXYL METHYLESTERASE; CARBOXYL METHYLESTERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 16.65 Å |
| rg_electron | 15.29 Å |
| i0 | 8471570.00 |
| molecular_weight | 20966.0 kDa |
| excluded_volume | 26126 ų |
| envelope_volume | 29063 ų |
| shell_volume | 15632 ų |
| envelope_diameter | 53.0 Å |
| shell_rg | 21.72 Å |
| envelope_rg | 15.65 Å |
| shape_rg | 15.28 Å |
| total_rg | 16.39 Å |
| total_atoms | 1469 |
| n_residues | 198 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.1 Å |
| rg_real | 16.52 Å |
| rg_real_error | 0.27 Å |
| i0_real | 8.4720e+06 |
| i0_real_error | 1.0100e+05 |
| rg_reciprocal | 16.53 Å |
| i0_reciprocal | 8472000.0000 |
| total_estimate | 0.8704 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.2 Å |
| skewness | 0.040 |
| kurtosis | -0.395 |
| angular_range | — – 0.4800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2739000.0000 |
| n_real_points | 78 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.774; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 1.000 |
