1chk
STREPTOMYCES N174 CHITOSANASE PH5.5 298K
SAXS Profile

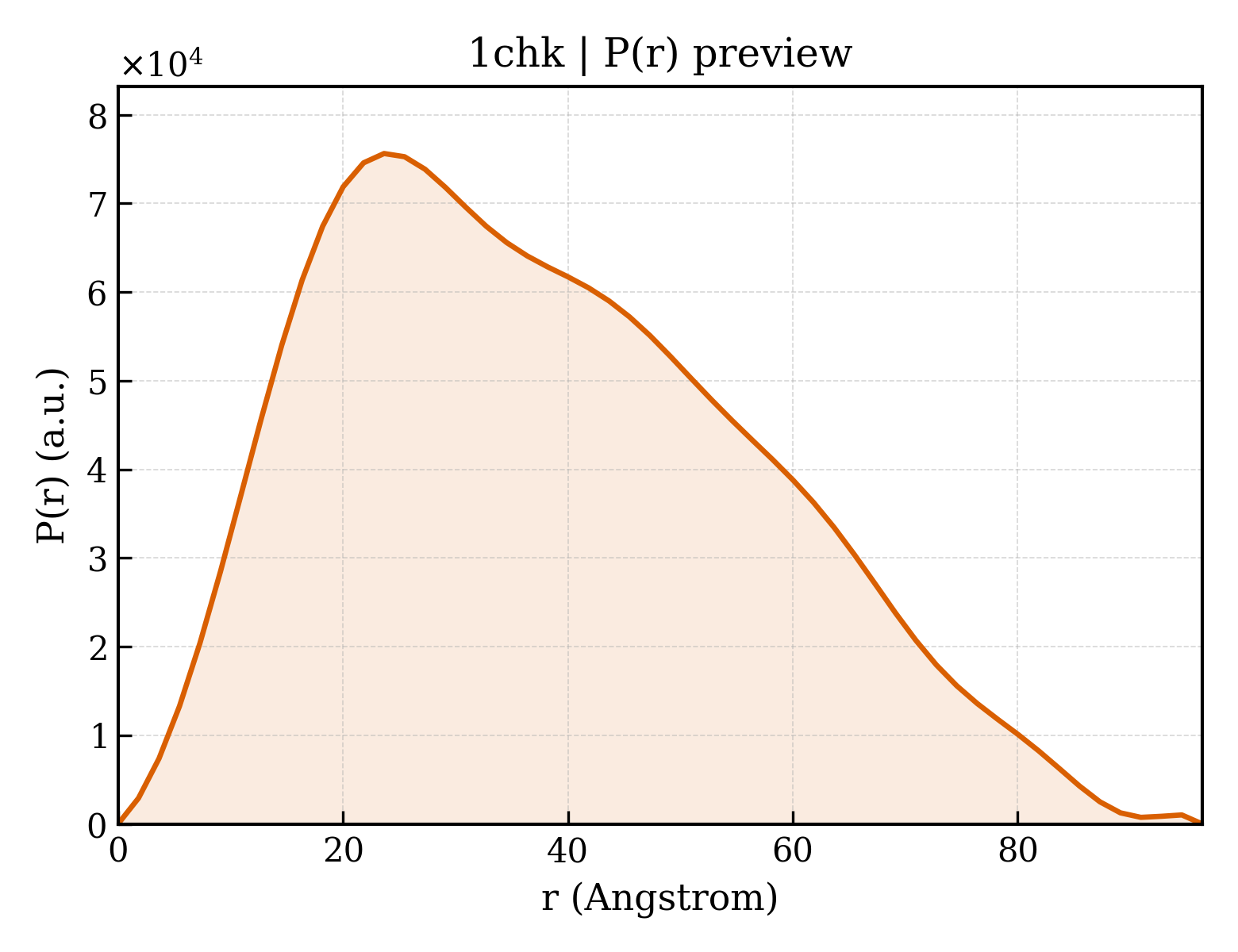

P(r) Distribution
1. Structure Basics
| entry_id | 1chk |
| deposition_date | 1995-06-12 |
| title | STREPTOMYCES N174 CHITOSANASE PH5.5 298K |
| keywords | ANTI-FUNGAL PROTEIN, HYDROLASE, O-GLYCOSYL, HYDROLASE (O-GLYCOSYL); HYDROLASE (O-GLYCOSYL) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 29.71 Å |
| rg_electron | 29.19 Å |
| i0 | 45468400.00 |
| molecular_weight | 51624.0 kDa |
| excluded_volume | 64028 ų |
| envelope_volume | 79826 ų |
| shell_volume | 24095 ų |
| envelope_diameter | 99.5 Å |
| shell_rg | 34.45 Å |
| envelope_rg | 28.74 Å |
| shape_rg | 29.14 Å |
| total_rg | 29.86 Å |
| total_atoms | 3640 |
| n_residues | 476 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 96.4 Å |
| rg_real | 29.90 Å |
| rg_real_error | 0.66 Å |
| i0_real | 4.5470e+07 |
| i0_real_error | 6.7460e+05 |
| rg_reciprocal | 29.83 Å |
| i0_reciprocal | 45470000.0000 |
| total_estimate | 0.8611 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.407 |
| kurtosis | -0.580 |
| angular_range | — – 0.2650 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 10570000.0000 |
| n_real_points | 54 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.854; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.771; Smooth: 0.859 |
