1chv

ELUCIDATION OF THE SOLUTION STRUCTURE OF CARDIOTOXIN ANALOGUE V FROM THE TAIWAN COBRA (NAJA NAJA ATRA) VENOM

Method: SOLUTION NMR D_max: 41.7 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (CARDIOTOXIN ANALOGUE V)

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain S； UniProt 1–60	Not recorded	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 3；293 K NMR sample composition：90% H2O AND 10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	CX5T_NAJAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain S； PDBConstruct 1–60； UniProt 1–60

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

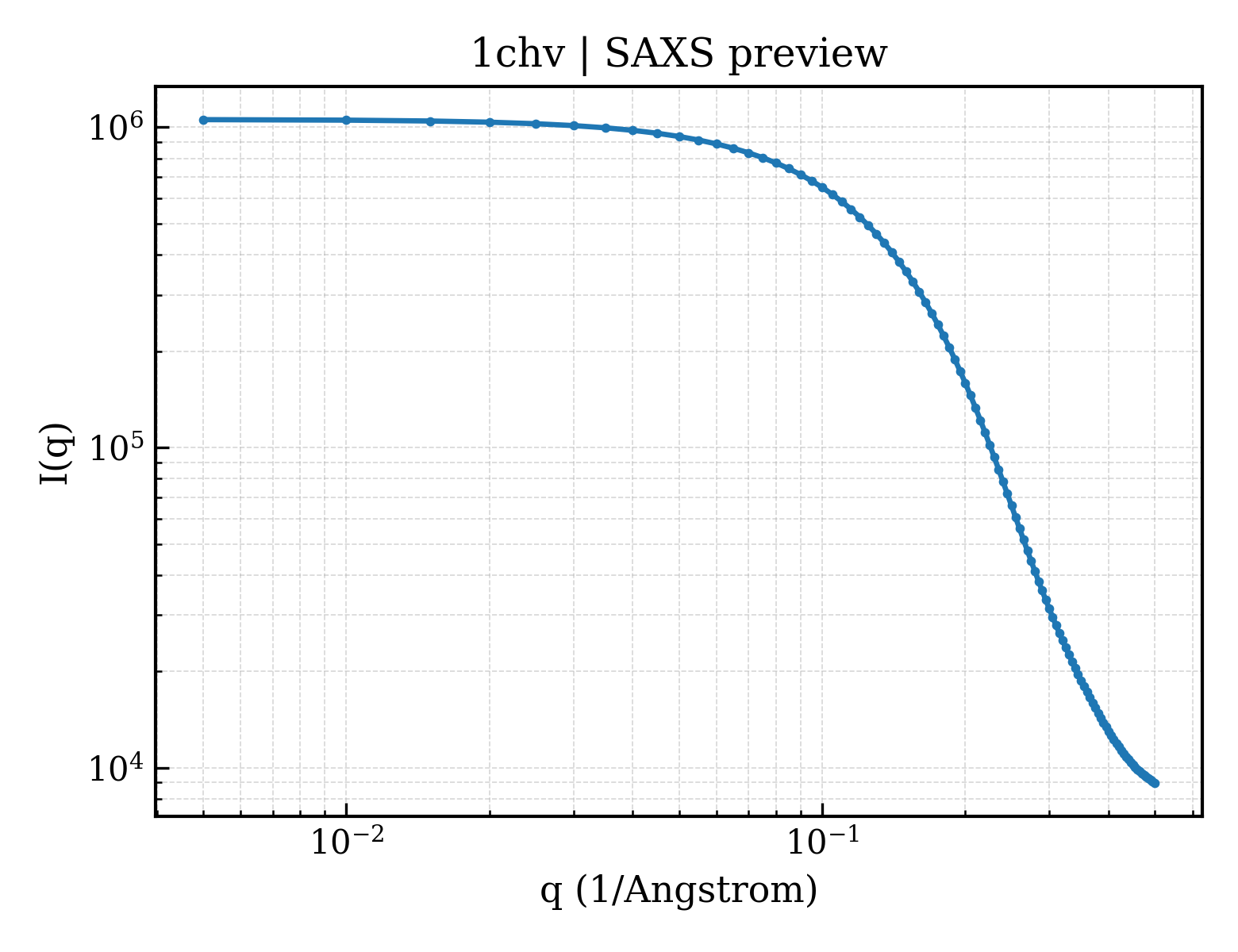

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1chv
Deposition date deposition_date	1999-03-30
Structure title title	ELUCIDATION OF THE SOLUTION STRUCTURE OF CARDIOTOXIN ANALOGUE V FROM THE TAIWAN COBRA (NAJA NAJA ATRA) VENOM
Keywords keywords	CARDIOTOXINS, CYTOTOXINS, TOXIN; TOXIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.11 Å
Radius of gyration Rg (electron density) rg_electron	11.40 Å
Forward intensity I(0) i0	1057440.00
Molecular weight molecular_weight	6819.0 kDa
Excluded volume excluded_volume	8635 Å³
Envelope volume envelope_volume	9788 Å³
Hydration-shell volume shell_volume	7709 Å³
Envelope diameter envelope_diameter	39.0 Å
Shell Rg shell_rg	16.42 Å
Envelope Rg envelope_rg	11.83 Å
Shape Rg shape_rg	11.39 Å
Total Rg total_rg	12.85 Å
Total atoms total_atoms	963
Residues n_residues	60
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	41.7 Å
Rg (real space) rg_real	12.10 Å
Rg uncertainty (real space) rg_real_error	0.35 Å
I(0) (real space) i0_real	1.0570e+06
I(0) uncertainty (real space) i0_real_error	1.2610e+04
Rg (reciprocal space) rg_reciprocal	12.11 Å
I(0) (reciprocal space) i0_reciprocal	1057000.0000
Solution quality estimate total_estimate	0.8748
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	13.7 Å
Skewness Skewness skewness	0.340
Kurtosis Kurtosis kurtosis	-0.253
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	185600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.820; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.933; Smooth: 0.976

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1chvs_
Class class	g — Small proteins
Fold Fold fold	g.7 — Snake toxin-like
Superfamily Superfamily superfamily	g.7.1 — Snake toxin-like
Family Family family	g.7.1.1 — Snake venom toxins

CATH v4.4 (1 domains)

Domain ID domain_id	1chvS00
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	60 — CD59
Homologous superfamily homologous superfamily	10 — CD59

▶

8. Citations (5)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	PROTEIN (CARDIOTOXIN ANALOGUE V)
Molecular weight formula_weight	6821.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	S
Atom count atom_count	963
