COLICIN IA

Method: X-RAY DIFFRACTION D_max: 235.1 Å Quality: REASONABLE

SAXS Profile

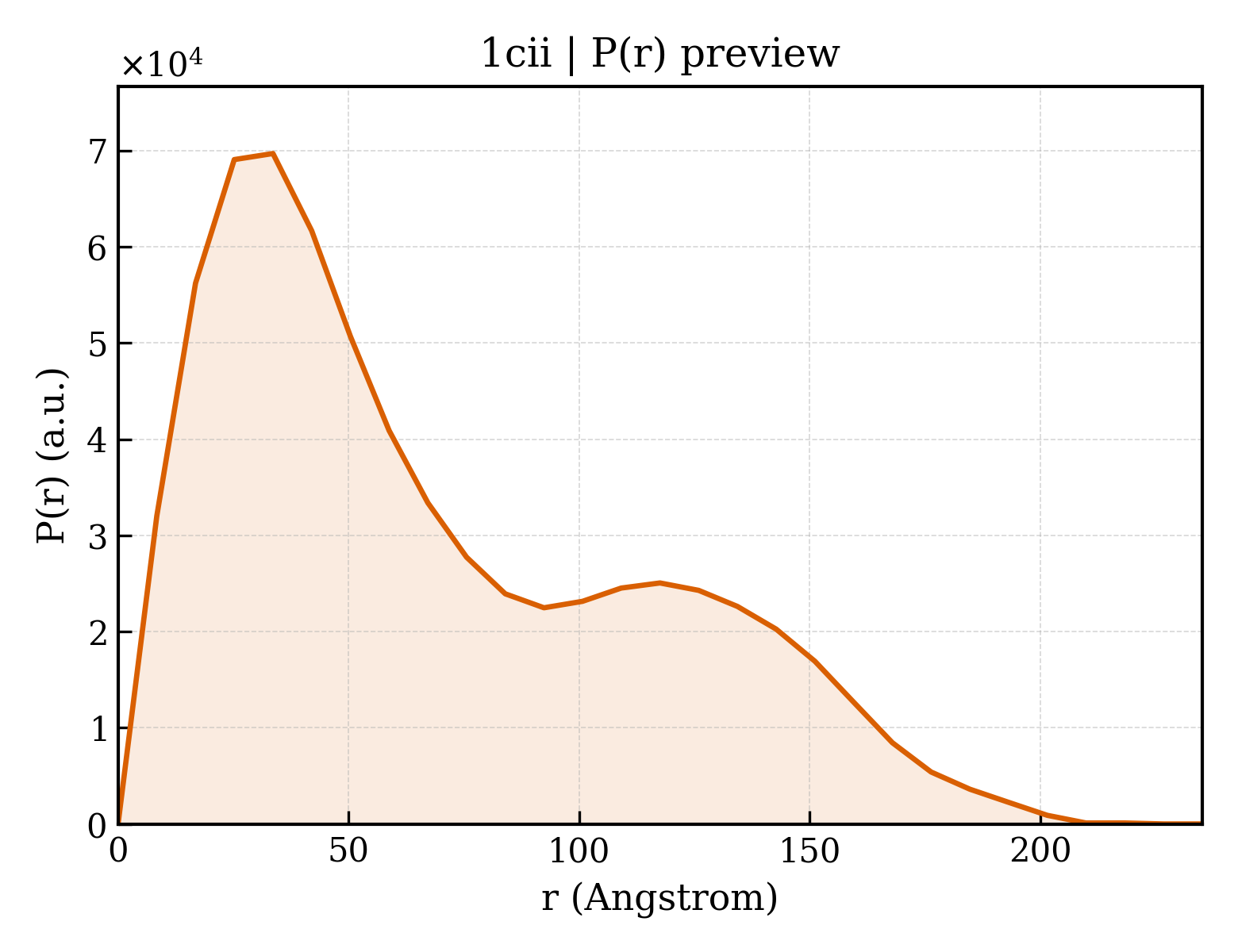

P(r) Distribution

▼

1. Structure Basics

entry_id	1cii
deposition_date	1997-01-08
title	COLICIN IA
keywords	COLICIN, BACTERIOCIN, ION CHANNEL FORMATION, TRANSMEMBRANE PROTEIN; TRANSMEMBRANE PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	56.66 Å
rg_electron	58.91 Å
i0	71522700.00
molecular_weight	66948.0 kDa
excluded_volume	83167 Å³
envelope_volume	130970 Å³
shell_volume	24056 Å³
envelope_diameter	218.2 Å
shell_rg	43.11 Å
envelope_rg	59.66 Å
shape_rg	58.96 Å
total_rg	58.05 Å
total_atoms	4714
n_residues	602
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	235.1 Å
rg_real	58.46 Å
rg_real_error	4.79 Å
i0_real	7.1520e+07
i0_real_error	1.6600e+06
rg_reciprocal	55.14 Å
i0_reciprocal	71170000.0000
total_estimate	0.6077
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	33.6 Å
skewness	0.702
kurtosis	-0.569
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	2690000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.005; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.001; Smooth: 0.882

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (3)

▶

length_a	64.400 Å
length_b	178.600 Å
length_c	285.500 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

resolution	3.000 Å
resolution_low	8.000 Å
r_factor	0.2410
r_work	0.2410
r_free	0.3120

description	COLICIN IA
formula_weight	67036.3 kDa
src_method	man
entity_count	1

type	polypeptide(L)
strand_id	A
atom_count	4714

COLICIN IA

SAXS Profile

P(r) Distribution

1. Structure Basics

Download Data

2. SAXS Parameters (CRYSOL)

3. P(r) Analysis (GNOM)

4. Crystallography & Experiment

Unit Cell

Symmetry

Refinement

Diffraction

5. Entities & Polymer Info (1)

Entity 1 polymer

Polymer

Source

6. Citations (3)

7. Files & Curves (10)

Files (7)

Curves (3)

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

fit	/app/data/saxs_computation/ci/1cii/1cii.fit
pddf	/app/data/pr_computation/ci/1cii/1cii.pr.out
profile	/app/data/saxs_computation/ci/1cii/1cii.dat
