1ciu
THERMOSTABLE CGTASE FROM THERMOANAEROBACTERIUM THERMOSULFURIGENES EM1 AT PH 8.0.
SAXS Profile

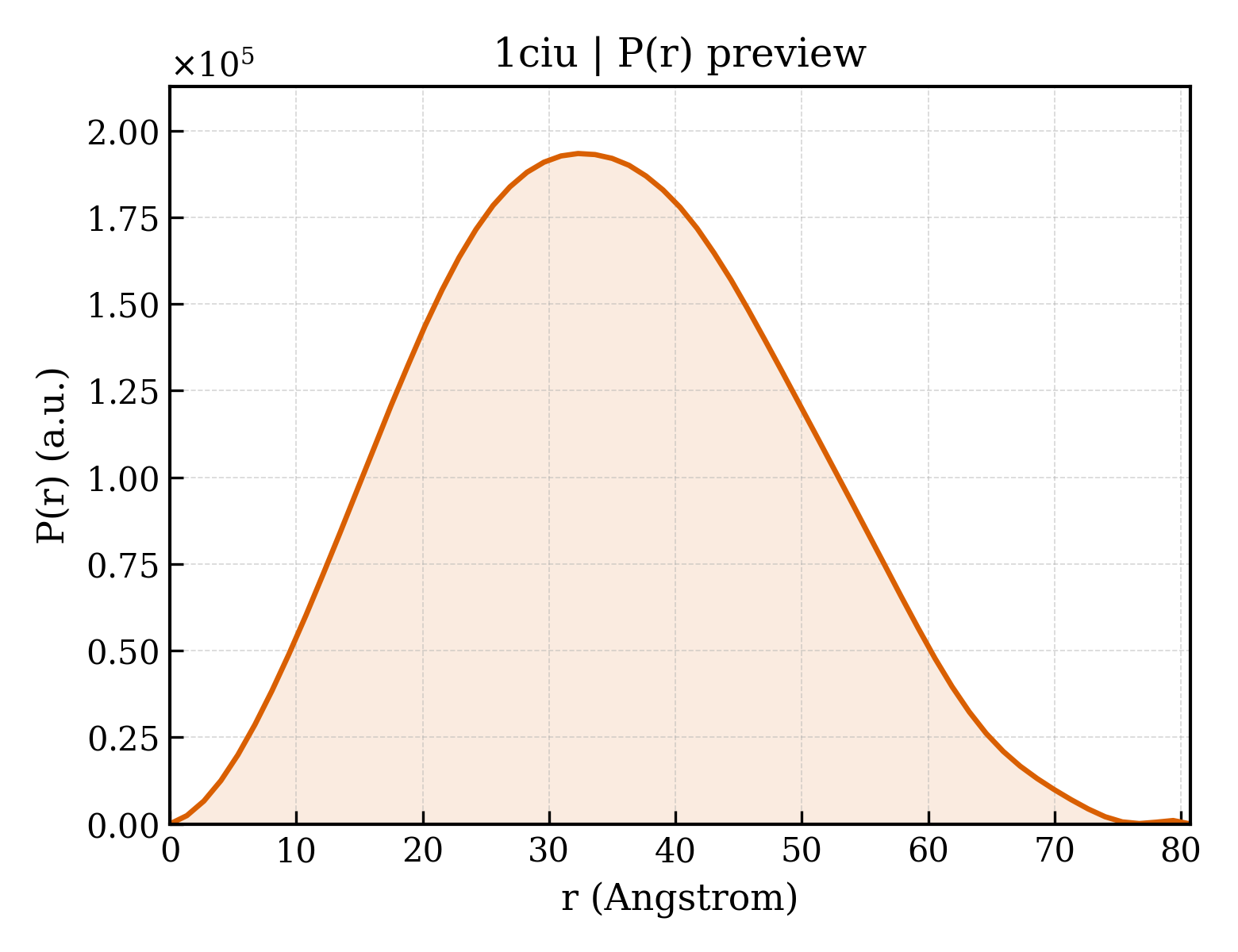

P(r) Distribution
1. Structure Basics
| entry_id | 1ciu |
| deposition_date | 1995-10-23 |
| title | THERMOSTABLE CGTASE FROM THERMOANAEROBACTERIUM THERMOSULFURIGENES EM1 AT PH 8.0. |
| keywords | THERMOSTABLE, GLYCOSIDASE; GLYCOSIDASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.65 Å |
| rg_electron | 25.50 Å |
| i0 | 93996400.00 |
| molecular_weight | 75510.0 kDa |
| excluded_volume | 93909 ų |
| envelope_volume | 106740 ų |
| shell_volume | 34149 ų |
| envelope_diameter | 82.9 Å |
| shell_rg | 33.63 Å |
| envelope_rg | 25.58 Å |
| shape_rg | 25.50 Å |
| total_rg | 26.30 Å |
| total_atoms | 5335 |
| n_residues | 683 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.7 Å |
| rg_real | 26.51 Å |
| rg_real_error | 0.48 Å |
| i0_real | 9.4000e+07 |
| i0_real_error | 1.3530e+06 |
| rg_reciprocal | 26.55 Å |
| i0_reciprocal | 94000000.0000 |
| total_estimate | 0.7448 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 32.3 Å |
| skewness | 0.157 |
| kurtosis | -0.536 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 17080000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.957; Stabil: 1.000; Sysdev: 0.291; Positv: 1.000; Valcen: 0.993; Smooth: 0.940 |
