SAXSdb — 1ckk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calmodulin-1

Xenopus laevis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–149	Not recorded	Calcium/calmodulin-dependent protein kinase kinase 1 × 1 （P97756） CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions：pH 6.7；303 K；Ionic strength (raw mmCIF value) 100mM KCL, 10mM CACL2	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CKK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6CTB Apo-Calmodulin Bound to Calcium Voltage Gated Channel 1.2 IQ-Motif Deposited 2018-03-22	Different construct Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 3–149（147 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 100；Pressure 1 NMR sample composition 300 uM [U-99% 15N] apo-Calmodulin, 300 uM Calcium Voltage Gated Channel 1.2, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 300 uM [U-99% 15N] Calcium Voltage Gated Channel 1.2, 300 uM apo-Calmodulin, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM1_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 2–149

Calcium/calmodulin-dependent protein kinase kinase 1

Rattus norvegicus

UniProt P97756

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 438–463	Fragment：CALMODULIN BINDING DOMAIN	Calmodulin-1 × 1 （P0DP33） CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions：pH 6.7；303 K；Ionic strength (raw mmCIF value) 100mM KCL, 10mM CACL2	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	KKCC1_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–26； UniProt 438–463

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ckk
Deposition date deposition_date	1998-11-20
Structure title title	CALMODULIN/RAT CA2+/CALMODULIN DEPENDENT PROTEIN KINASE FRAGMENT
Keywords keywords	COMPLEX (CALMODULIN-PEPTIDE), CALMODULIN, CAMKK, CALMODULIN-PEPTIDE COMPLEX; CALMODULIN-PEPTIDE COMPLEX
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.67 Å
Radius of gyration Rg (electron density) rg_electron	16.08 Å
Forward intensity I(0) i0	5192360000.00
Molecular weight molecular_weight	595990.0 kDa
Excluded volume excluded_volume	736650 Å³
Envelope volume envelope_volume	48519 Å³
Hydration-shell volume shell_volume	21329 Å³
Envelope diameter envelope_diameter	60.7 Å
Shell Rg shell_rg	25.67 Å
Envelope Rg envelope_rg	18.89 Å
Shape Rg shape_rg	16.09 Å
Total Rg total_rg	16.16 Å
Total atoms total_atoms	81510
Residues n_residues	5220
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

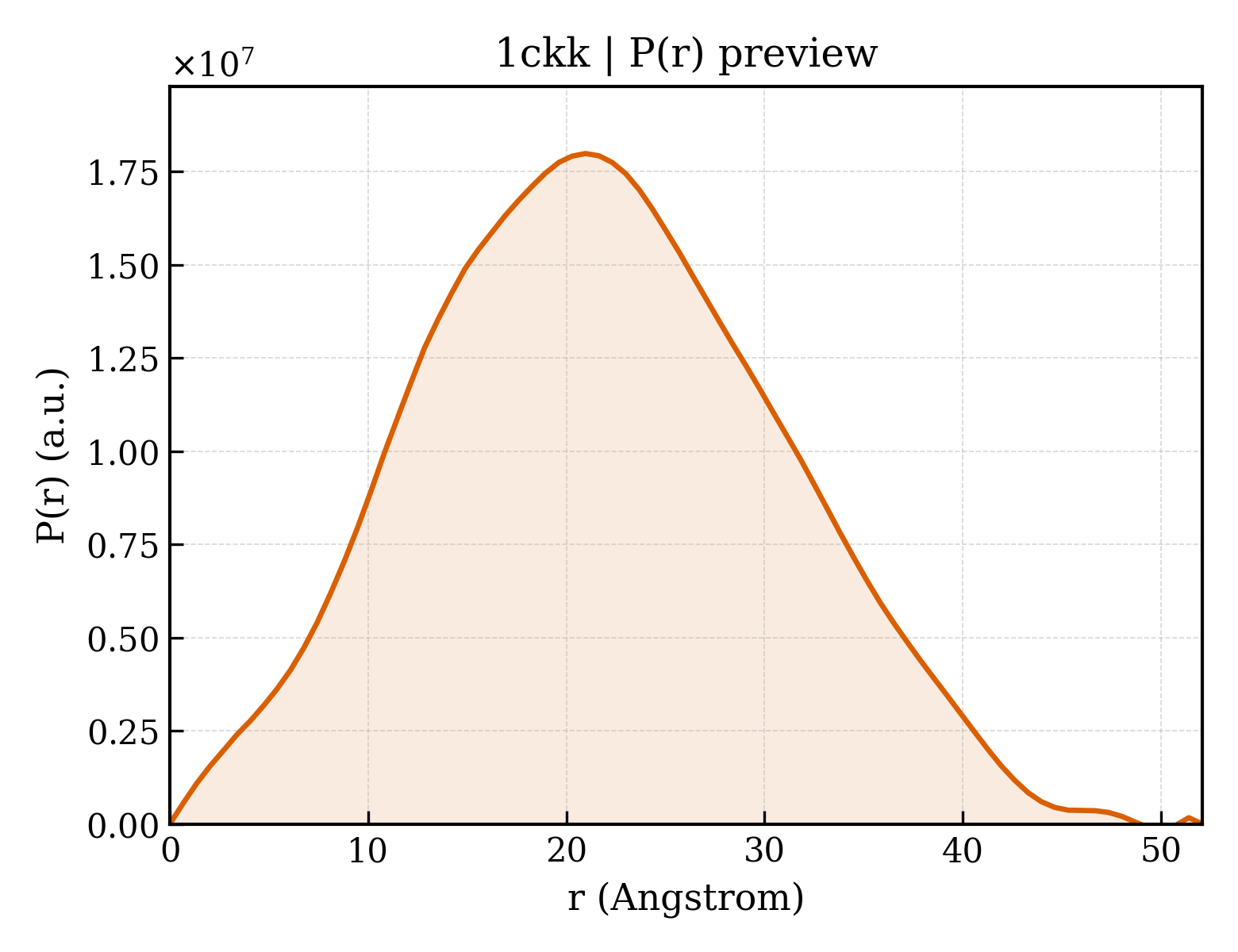

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	52.1 Å
Rg (real space) rg_real	16.58 Å
Rg uncertainty (real space) rg_real_error	0.37 Å
I(0) (real space) i0_real	5.1920e+09
I(0) uncertainty (real space) i0_real_error	6.0660e+07
Rg (reciprocal space) rg_reciprocal	16.59 Å
I(0) (reciprocal space) i0_reciprocal	5192000000.0000
Solution quality estimate total_estimate	0.8221
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.0 Å
Skewness Skewness skewness	0.143
Kurtosis Kurtosis kurtosis	-0.439
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	629900.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Calmodulin-1
Molecular weight formula_weight	16721.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	81510

ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI Class编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Calcium/calmodulin-dependent protein kinase kinase 1
Molecular weight formula_weight	3023.7 kDa
EC 编号 ec_number	2.7.11.17
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VKLIPSWTTVILVKSMLRKRSFGNPF

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Rat
NCBI Class编号 ncbi_taxonomy_id	10116

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ckka_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (2 domains)

Domain ID domain_id	1ckkA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	1ckkA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/ck/1ckk/1ckk.fit
pddf	/app/data/pr_computation/ck/1ckk/1ckk.pr.out
profile	/app/data/saxs_computation/ck/1ckk/1ckk.dat
