1cl4
NUCLEOCAPSID PROTEIN FROM MASON-PFIZER MONKEY VIRUS (MPMV)

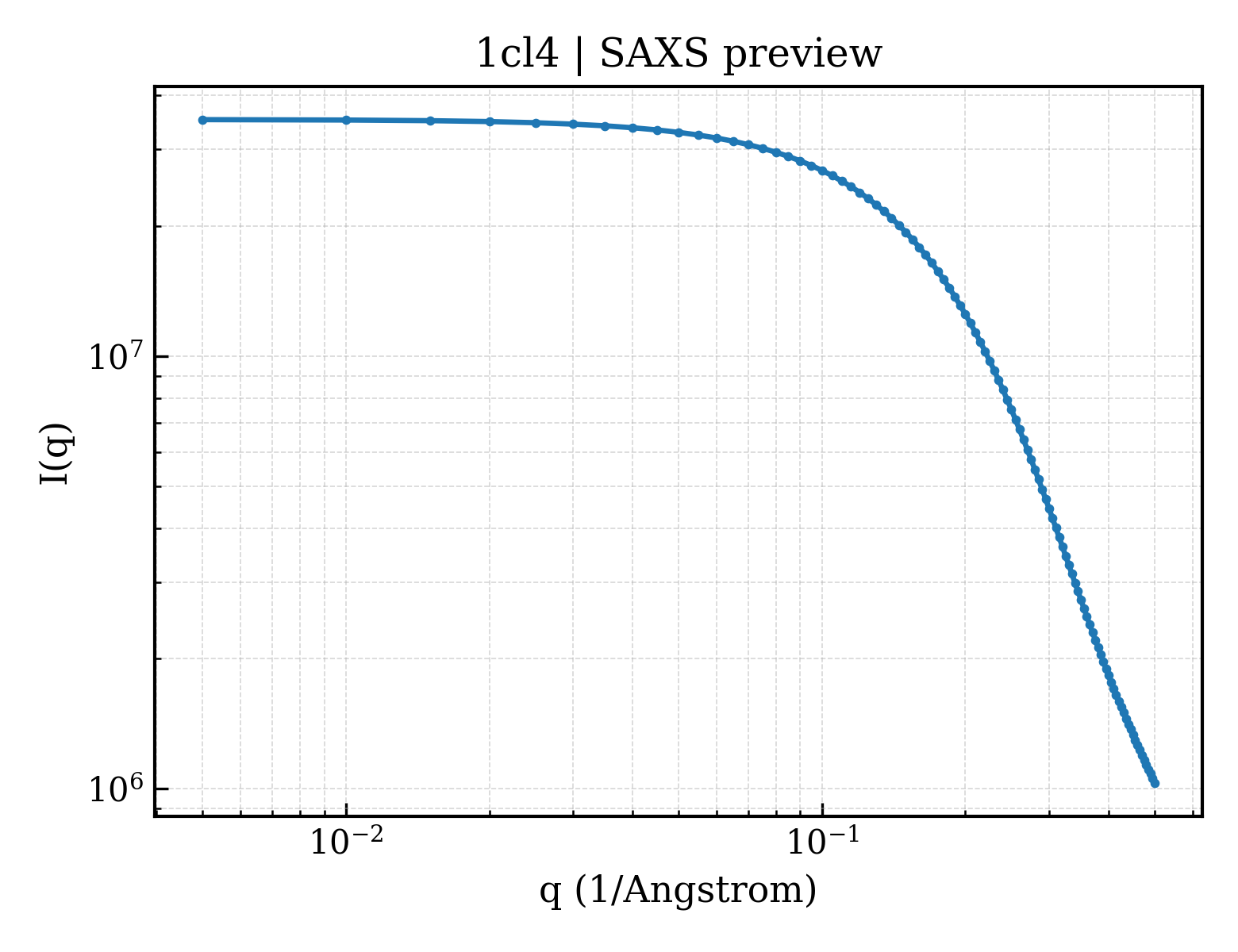

SAXS Profile

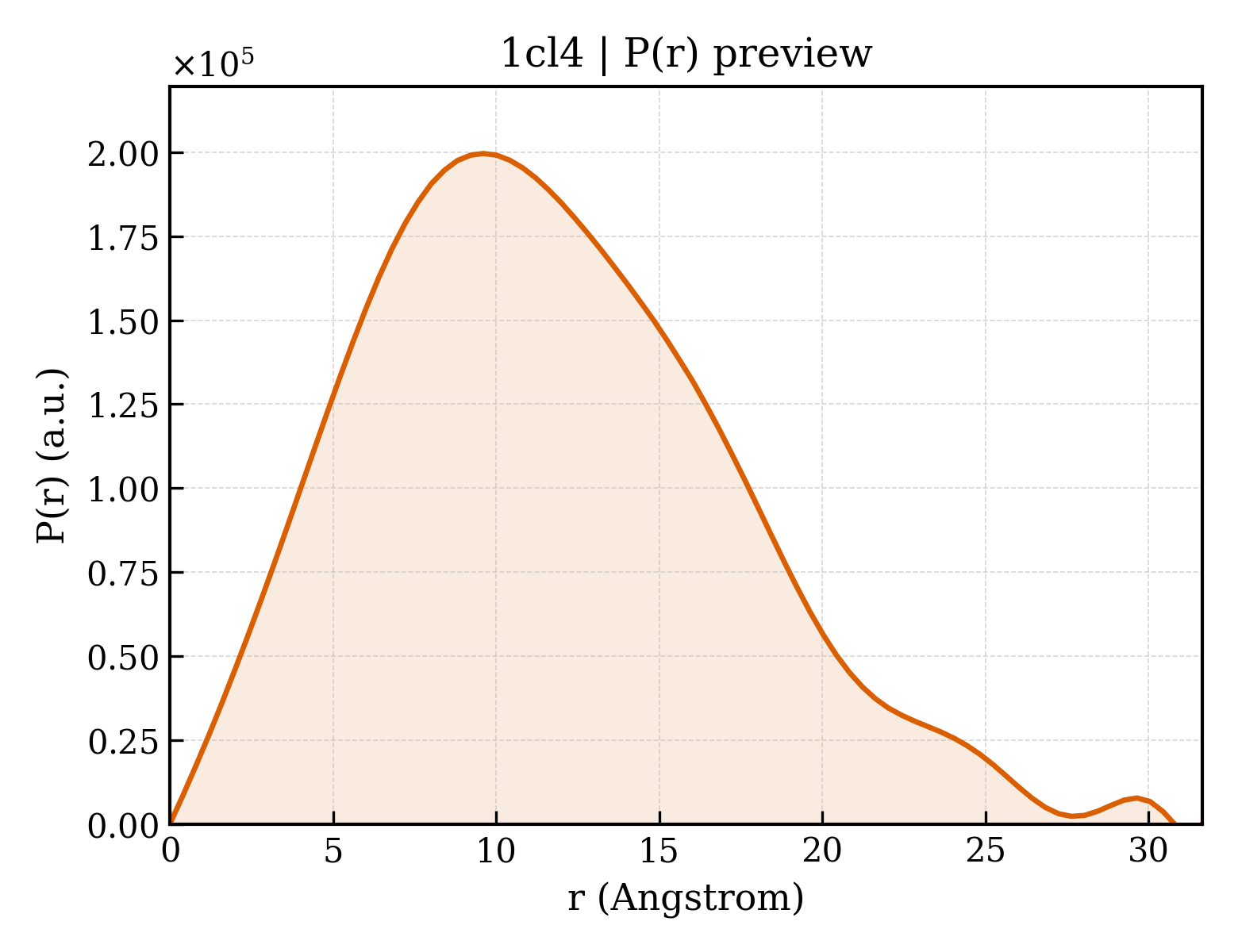

P(r) Distribution
1. Structure Basics
| entry_id | 1cl4 |
| deposition_date | 1999-05-06 |
| title | NUCLEOCAPSID PROTEIN FROM MASON-PFIZER MONKEY VIRUS (MPMV) |
| keywords | NUCLEOCAPSID PROTEIN, RNA BINDING PROTEIN, RETROVIRUS, VIRAL PROTEIN; VIRAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.00 Å |
| rg_electron | 9.37 Å |
| i0 | 35197800.00 |
| molecular_weight | 43662.0 kDa |
| excluded_volume | 52569 ų |
| envelope_volume | 9185 ų |
| shell_volume | 7510 ų |
| envelope_diameter | 38.6 Å |
| shell_rg | 15.96 Å |
| envelope_rg | 11.48 Å |
| shape_rg | 9.46 Å |
| total_rg | 9.45 Å |
| total_atoms | 5904 |
| n_residues | 384 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 31.6 Å |
| rg_real | 9.07 Å |
| rg_real_error | 0.40 Å |
| i0_real | 3.5200e+07 |
| i0_real_error | 3.7030e+05 |
| rg_reciprocal | 9.06 Å |
| i0_reciprocal | 35200000.0000 |
| total_estimate | 0.7790 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 9.6 Å |
| skewness | 0.464 |
| kurtosis | -0.099 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 9301.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.810; Stabil: 0.977; Sysdev: 1.000; Positv: 1.000; Valcen: 0.763; Smooth: 0.000 |
