1clf
CLOSTRIDIUM PASTEURIANUM FERREDOXIN

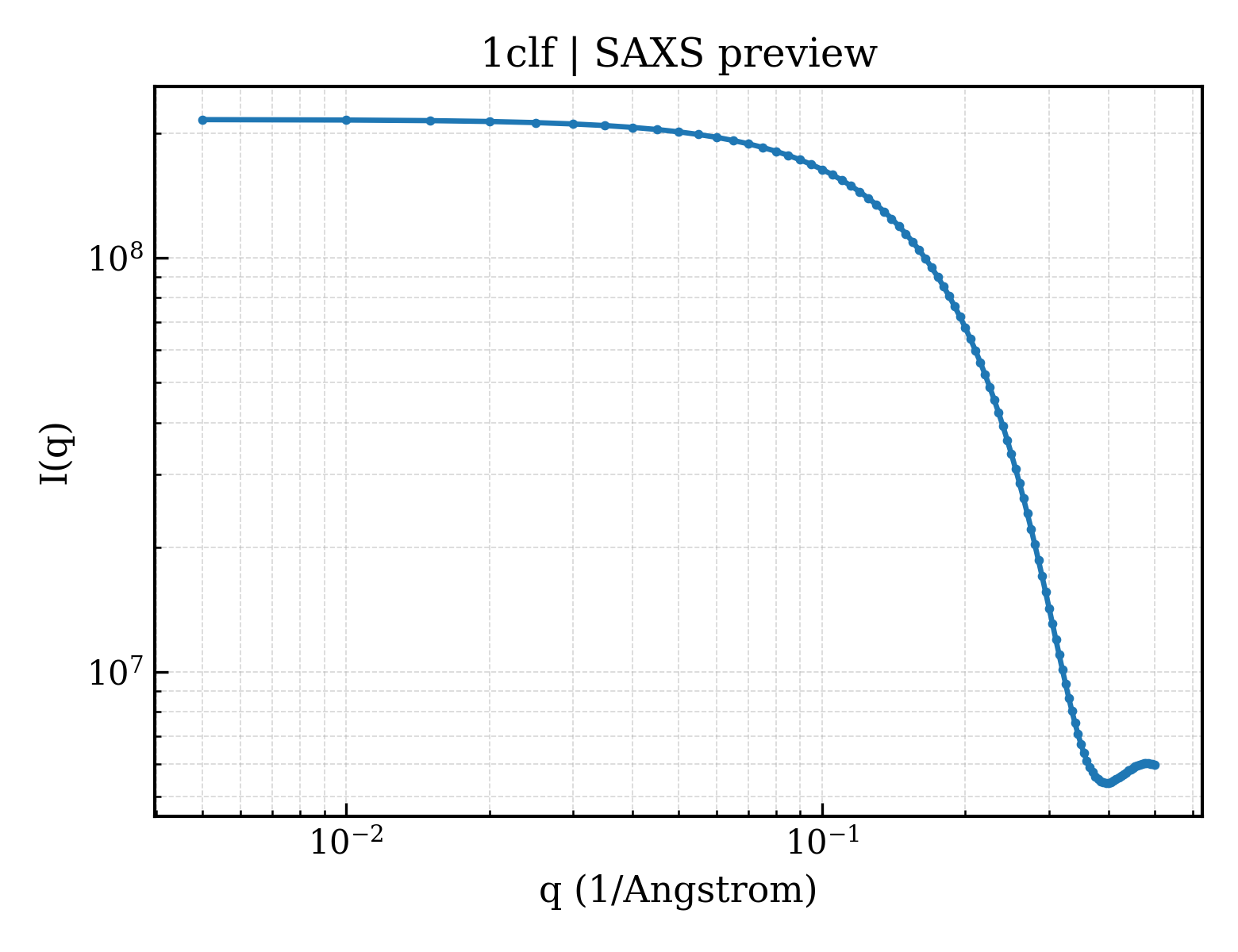

SAXS Profile

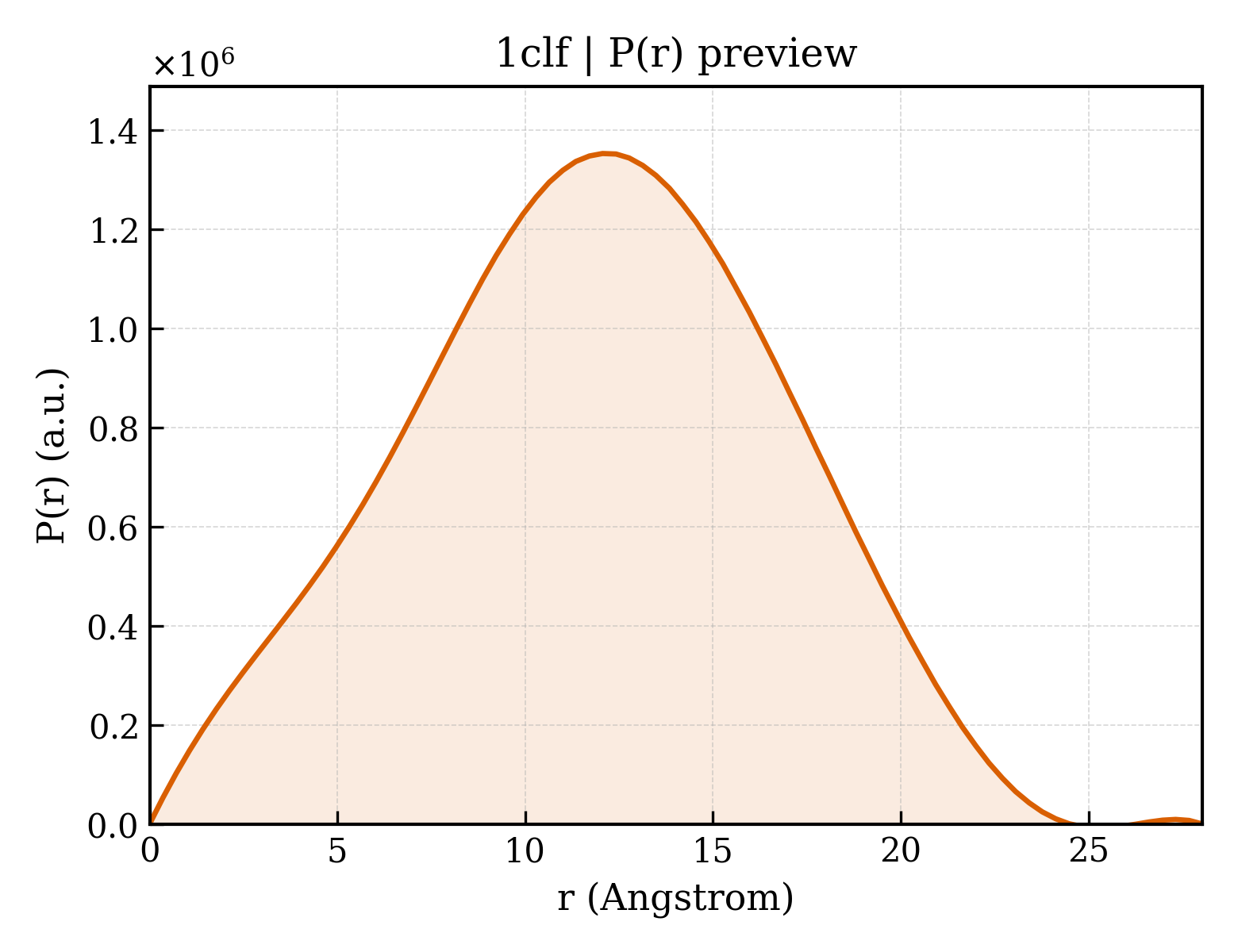

P(r) Distribution
1. Structure Basics
| entry_id | 1clf |
| deposition_date | 1995-06-21 |
| title | CLOSTRIDIUM PASTEURIANUM FERREDOXIN |
| keywords | ELECTRON TRANSFER (IRON-SULFUR PROTEIN); ELECTRON TRANSFER (IRON-SULFUR PROTEIN) |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.13 Å |
| rg_electron | 9.37 Å |
| i0 | 215574000.00 |
| molecular_weight | 99142.0 kDa |
| excluded_volume | 112680 ų |
| envelope_volume | 9397 ų |
| shell_volume | 7925 ų |
| envelope_diameter | 31.1 Å |
| shell_rg | 15.76 Å |
| envelope_rg | 10.53 Å |
| shape_rg | 9.56 Å |
| total_rg | 8.99 Å |
| total_atoms | 6288 |
| n_residues | 880 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 28.0 Å |
| rg_real | 9.05 Å |
| rg_real_error | 0.19 Å |
| i0_real | 2.1560e+08 |
| i0_real_error | 1.7960e+06 |
| rg_reciprocal | 9.06 Å |
| i0_reciprocal | 215600000.0000 |
| total_estimate | 0.9032 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 12.1 Å |
| skewness | -0.058 |
| kurtosis | -0.537 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 22890.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.962 |
