SAXSdb — 1cm1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALMODULIN

Bos taurus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–148	Not recorded	CALMODULIN-DEPENDENT PROTEIN KINASE II-ALPHA × 1 （P11275） CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.302
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–148	Not recorded	CALMODULIN-DEPENDENT PROTEIN KINASE II-ALPHA × 2 （P11275） CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions：vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.302

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CM1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CM4 Motions of calmodulin-four-conformer refinement Deposited 1997-09-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.262
1DEG THE LINKER OF DES-GLU84 CALMODULIN IS BENT AS SEEN IN THE CRYSTAL STRUCTURE Deposited 1993-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–147（143 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.90 Å
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 5–148（144 aa） Chain E 5–148（144 aa） Chain F 5–148（144 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 3 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 5–148（144 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 5–148（144 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 5–148（144 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 5–148（144 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 5–148（144 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 5–148（144 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–149（149 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 DOT 3'ANTHRANILOYL-2'-DEOXY-ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–149（149 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–149（149 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 DOT 3'ANTHRANILOYL-2'-DEOXY-ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1NKF CALCIUM-BINDING PEPTIDE, NMR, 30 STRUCTURES Deposited 1998-03-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 93–104（12 aa）	Mutation：D5N Non-standard monomer：Yes (specific site not provided by mmCIF)	LA LANTHANUM (III) ION × 1	SOLUTION NMR NMR measurement conditions pH 6；275.2 K；Ionic strength (raw mmCIF value) 120mM；Pressure 10E+5 PA NMR sample composition H2O/D2O(9:1)	Resolution not provided
1QIV CALMODULIN COMPLEXED WITH N-(3,3,-DIPHENYLPROPYL)-N'-[1-R-(3,4-BIS-BUTOXYPHENYL)-ETHYL]-PROPYLENEDIAMINE (DPD), 1:2 COMPLEX Deposited 1999-06-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 DPD N-(3,3,-DIPHENYLPROPYL)-N'-[1-R-(2 3,4-BIS-BUTOXYPHENYL)-ETHYL]-PROPYLENEDIAMINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；PROTEIN WAS CRYSTALLIZED BY HANGING DROP TECHNIQUE AT ROOM TEMPERATURE FROM 50 MM PH=5.0 SODIUM CACODYLATE/HCL BUFFER, 10 MM MGCL2, 10 MM CACL2, 2MM DPD AND 28% PEG 8000. CRYSTAL GROWTH TOOK 2-3 WEEKS., pH 5.00	Resolution 2.64 Å R-free 0.301
1QIW Calmodulin complexed with N-(3,3,-diphenylpropyl)-N'-[1-R-(3,4-bis-butoxyphenyl)-ethyl]-propylenediamine (DPD) Deposited 1999-06-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 DPD N-(3,3,-DIPHENYLPROPYL)-N'-[1-R-(2 3,4-BIS-BUTOXYPHENYL)-ETHYL]-PROPYLENEDIAMINE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PROTEIN WAS CRYSTALLIZED BY HANGING DROP TECHNIQUE. 50 MM PH=6.0 SODIUM CACODYLATE/HCL BUFFER, 10 MM MGCL2, 10 MM CACL2, 2MM DPD AND 30% PEG 8000 THE CRYSTAL COULD NOT BE REPRODUCED., pH 6.00	Resolution 2.30 Å R-free 0.317
1QIW Calmodulin complexed with N-(3,3,-diphenylpropyl)-N'-[1-R-(3,4-bis-butoxyphenyl)-ethyl]-propylenediamine (DPD) Deposited 1999-06-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 DPD N-(3,3,-DIPHENYLPROPYL)-N'-[1-R-(2 3,4-BIS-BUTOXYPHENYL)-ETHYL]-PROPYLENEDIAMINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；PROTEIN WAS CRYSTALLIZED BY HANGING DROP TECHNIQUE. 50 MM PH=6.0 SODIUM CACODYLATE/HCL BUFFER, 10 MM MGCL2, 10 MM CACL2, 2MM DPD AND 30% PEG 8000 THE CRYSTAL COULD NOT BE REPRODUCED., pH 6.00	Resolution 2.30 Å R-free 0.317
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–148（148 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–148（148 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–148（148 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
3CLN STRUCTURE OF CALMODULIN REFINED AT 2.2 ANGSTROMS RESOLUTION Deposited 1988-05-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å

10 other PDB entries and 20 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 1–148

CALMODULIN-DEPENDENT PROTEIN KINASE II-ALPHA

Bos taurus

UniProt P11275

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 290–314	Fragment：CALMODULIN BINDING DOMAIN, RESIDUES 290 - 314	CALMODULIN × 1 （P02593） CA CALCIUM ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions：vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.302
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 290–314	Fragment：CALMODULIN BINDING DOMAIN, RESIDUES 290 - 314	CALMODULIN × 2 （P02593） CA CALCIUM ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions：vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.302

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1CM1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CDM MODULATION OF CALMODULIN PLASTICITY IN MOLECULAR RECOGNITION ON THE BASIS OF X-RAY STRUCTURES Deposited 1993-10-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 290–314（25 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1CM4 Motions of calmodulin-four-conformer refinement Deposited 1997-09-23	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 290–314（25 aa） Fragment：CALMODULIN BINDING DOMAIN, RESIDUES 290 - 314	Not recorded	CA CALCIUM ION × 17	X-RAY DIFFRACTION X-ray crystallization conditions vapor diffusion - hanging drop - microseeding；pH 5.2；DIFFRACTION-QUALITY CRYSTALS WERE MICROSEEDED IN HANGING DROPS OVER 100 MM SODIUM ACETATE AT PH 5.2, WITH 20% POLY-ETHYLENE GLYCOL 6000 (PEG 6000), 10 MM CALCIUM CHLORIDE AND 0.02% SODIUM AZIDE. STOCK SOLUTIONS OF 24 MG/ML BOVINE BRAIN CALMODULIN (SIGMA LOT 54H9558), 14 MG/ML CAMKII-ALPHA PEPTIDE, AND 30% PEG WERE MIXED INTO HANGING DROPS IN ABOUT A 4-2-1 RATIO., vapor diffusion - hanging drop - microseeding	Resolution 2.00 Å R-free 0.262
5U6Y Pseudo-atomic model of the CaMKIIa holoenzyme. Deposited 2016-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 13–472（460 aa） Chain B 13–472（460 aa） Chain C 13–472（460 aa） Chain D 13–472（460 aa） Chain E 13–472（460 aa） Chain F 13–472（460 aa） Chain G 13–472（460 aa） Chain H 13–472（460 aa） Chain I 13–472（460 aa） Chain J 13–472（460 aa） Chain K 13–472（460 aa） Chain L 13–472（460 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4	Resolution 20.00 Å
8SYG Cryo-EM structure of tetradecameric hub domain of CaMKII alpha Deposited 2023-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 14 PDB declaration: tetradecameric	Chain A 345–478（134 aa） Chain B 345–478（134 aa） Chain C 345–478（134 aa） Chain D 345–478（134 aa） Chain E 345–478（134 aa） Chain F 345–478（134 aa） Chain G 345–478（134 aa） Chain H 345–478（134 aa） Chain I 345–478（134 aa） Chain J 345–478（134 aa） Chain K 345–478（134 aa） Chain L 345–478（134 aa） Chain M 345–478（134 aa） Chain N 345–478（134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8T15 Cryo-EM structure of dodecameric hub domain of CaMKII alpha Deposited 2023-06-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 345–478（134 aa） Chain B 345–478（134 aa） Chain C 345–478（134 aa） Chain D 345–478（134 aa） Chain E 345–478（134 aa） Chain F 345–478（134 aa） Chain G 345–478（134 aa） Chain H 345–478（134 aa） Chain I 345–478（134 aa） Chain J 345–478（134 aa） Chain K 345–478（134 aa） Chain L 345–478（134 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.70 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KCC2A_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–25； UniProt 290–314

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1cm1
Deposition date deposition_date	1997-09-23
Structure title title	MOTIONS OF CALMODULIN-SINGLE-CONFORMER REFINEMENT
Keywords keywords	COMPLEX (CALCIUM-BINDING-TRANSFERASE), EF-HAND CALCIUM-BINDING PROTEIN, COMPLEX (CALCIUM-BINDING-TRANSFERASE) complex; COMPLEX (CALCIUM-BINDING/TRANSFERASE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.07 Å
Radius of gyration Rg (electron density) rg_electron	15.66 Å
Forward intensity I(0) i0	6898960.00
Molecular weight molecular_weight	18198.0 kDa
Excluded volume excluded_volume	22330 Å³
Envelope volume envelope_volume	26053 Å³
Hydration-shell volume shell_volume	14253 Å³
Envelope diameter envelope_diameter	52.8 Å
Shell Rg shell_rg	21.17 Å
Envelope Rg envelope_rg	15.71 Å
Shape Rg shape_rg	15.67 Å
Total Rg total_rg	16.60 Å
Total atoms total_atoms	1263
Residues n_residues	161
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.5 Å
Rg (real space) rg_real	16.98 Å
Rg uncertainty (real space) rg_real_error	0.39 Å
I(0) (real space) i0_real	6.8990e+06
I(0) uncertainty (real space) i0_real_error	8.1560e+04
Rg (reciprocal space) rg_reciprocal	16.99 Å
I(0) (reciprocal space) i0_reciprocal	6899000.0000
Solution quality estimate total_estimate	0.8230
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.1 Å
Skewness Skewness skewness	0.171
Kurtosis Kurtosis kurtosis	-0.394
Angular range angular_range	— – 0.4650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	901300.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CALMODULIN
Molecular weight formula_weight	16721.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1321

ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913

Entity 2 Entity 2 polymer

Description description	CALMODULIN-DEPENDENT PROTEIN KINASE II-ALPHA
Molecular weight formula_weight	2886.5 kDa
EC 编号 ec_number	2.7.1.123
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LKKFNARRKLKGAILTTMLATRNFS

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI Class编号 ncbi_taxonomy_id	9913

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	58

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1cm1a_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1cm1A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (3)

▶

Unit-cell length a length_a	38.751 Å
Unit-cell length b length_b	75.209 Å
Unit-cell length c length_c	120.073 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2340
R_work r_work	0.2340
R_free r_free	0.3020

fit	/app/data/saxs_computation/cm/1cm1/1cm1.fit
pddf	/app/data/pr_computation/cm/1cm1/1cm1.pr.out
profile	/app/data/saxs_computation/cm/1cm1/1cm1.dat

MOTIONS OF CALMODULIN-SINGLE-CONFORMER REFINEMENT

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALMODULIN

State in the Current Structure

Other States of the Same Protein in the Database

CALMODULIN-DEPENDENT PROTEIN KINASE II-ALPHA

State in the Current Structure

Other States of the Same Protein in the Database

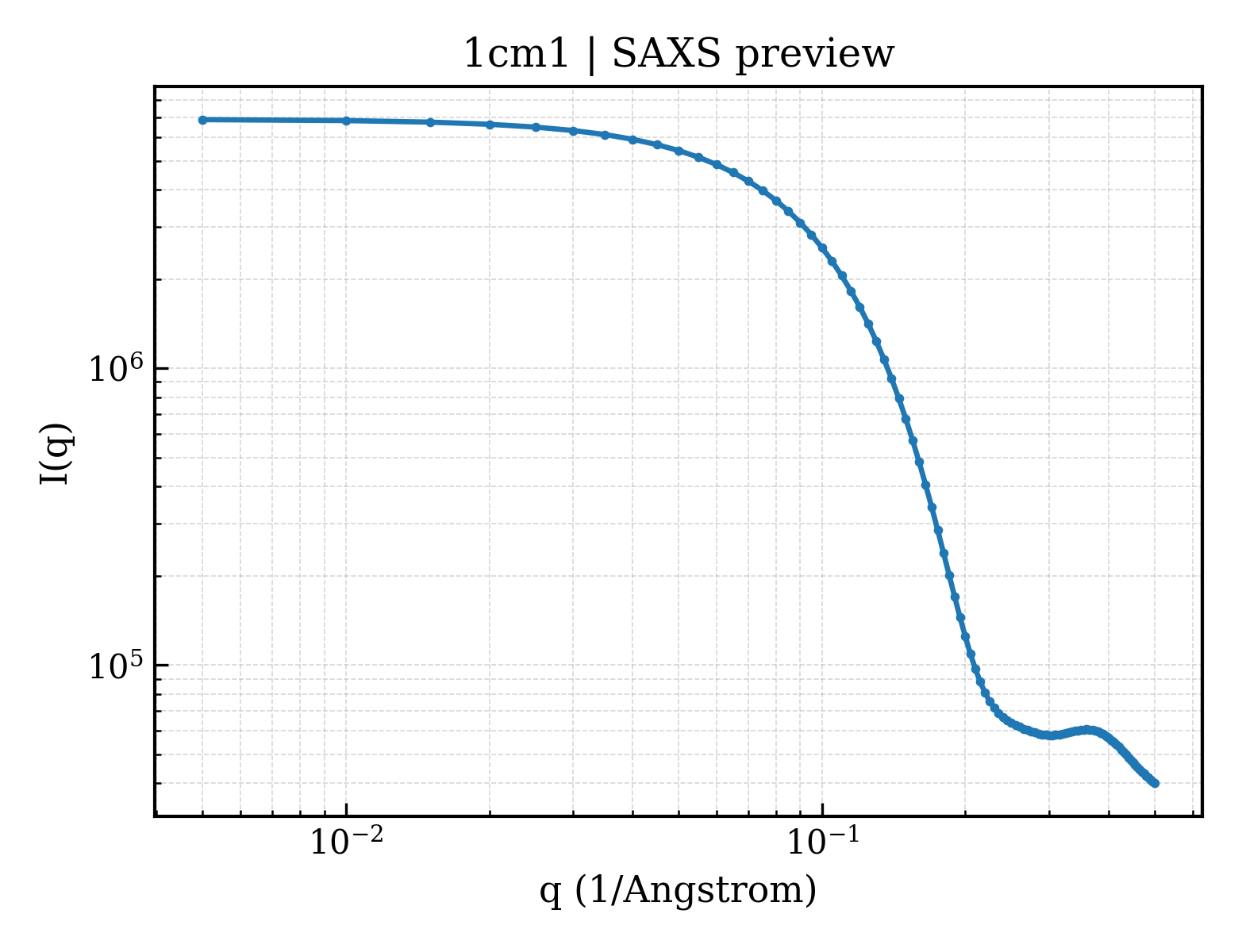

SAXS scattering curve SAXS Profile
