1lvc

;Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP ;

Method: X-RAY DIFFRACTION D_max: 125.1 Å Quality: GOOD

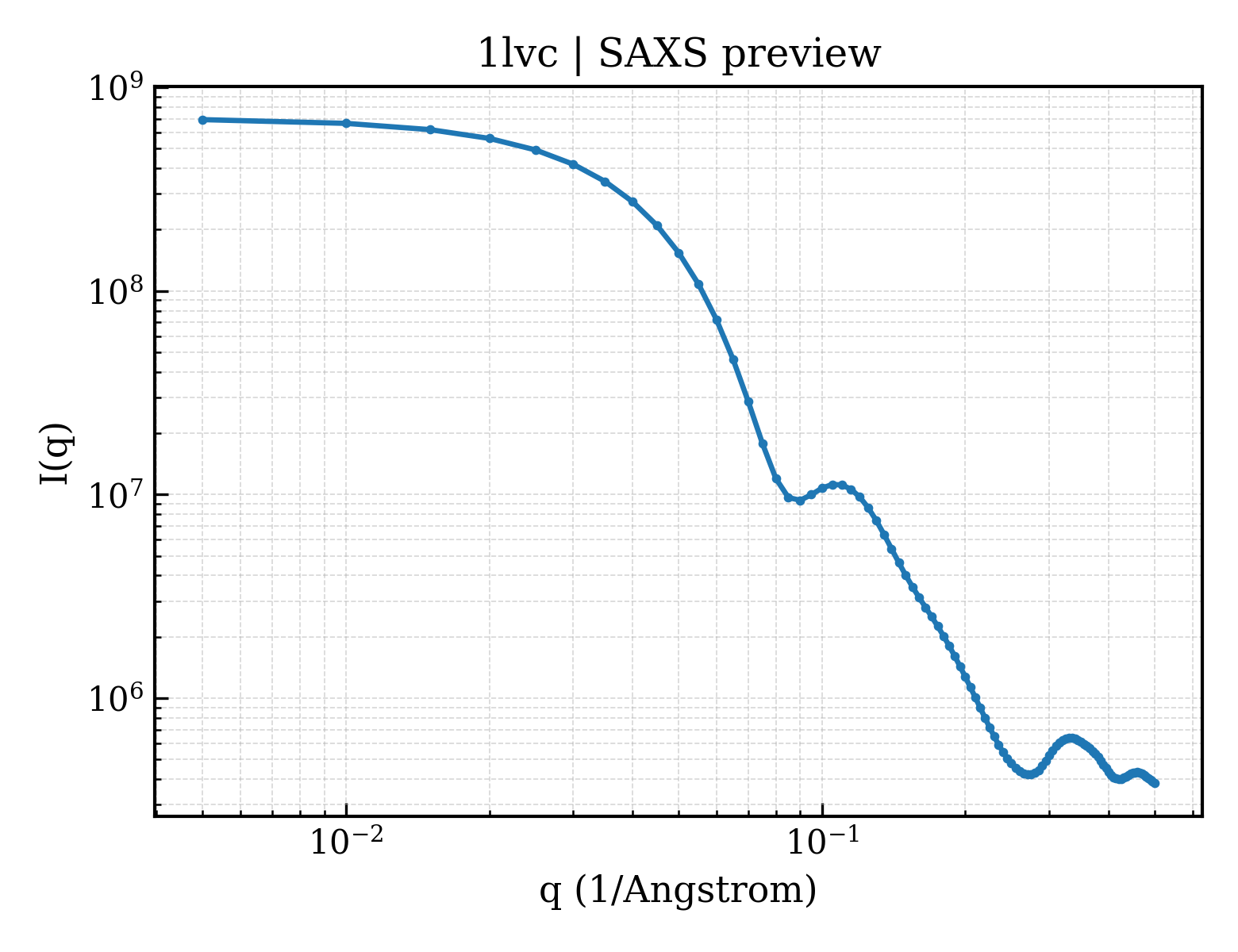

SAXS 散射曲线 SAXS Profile

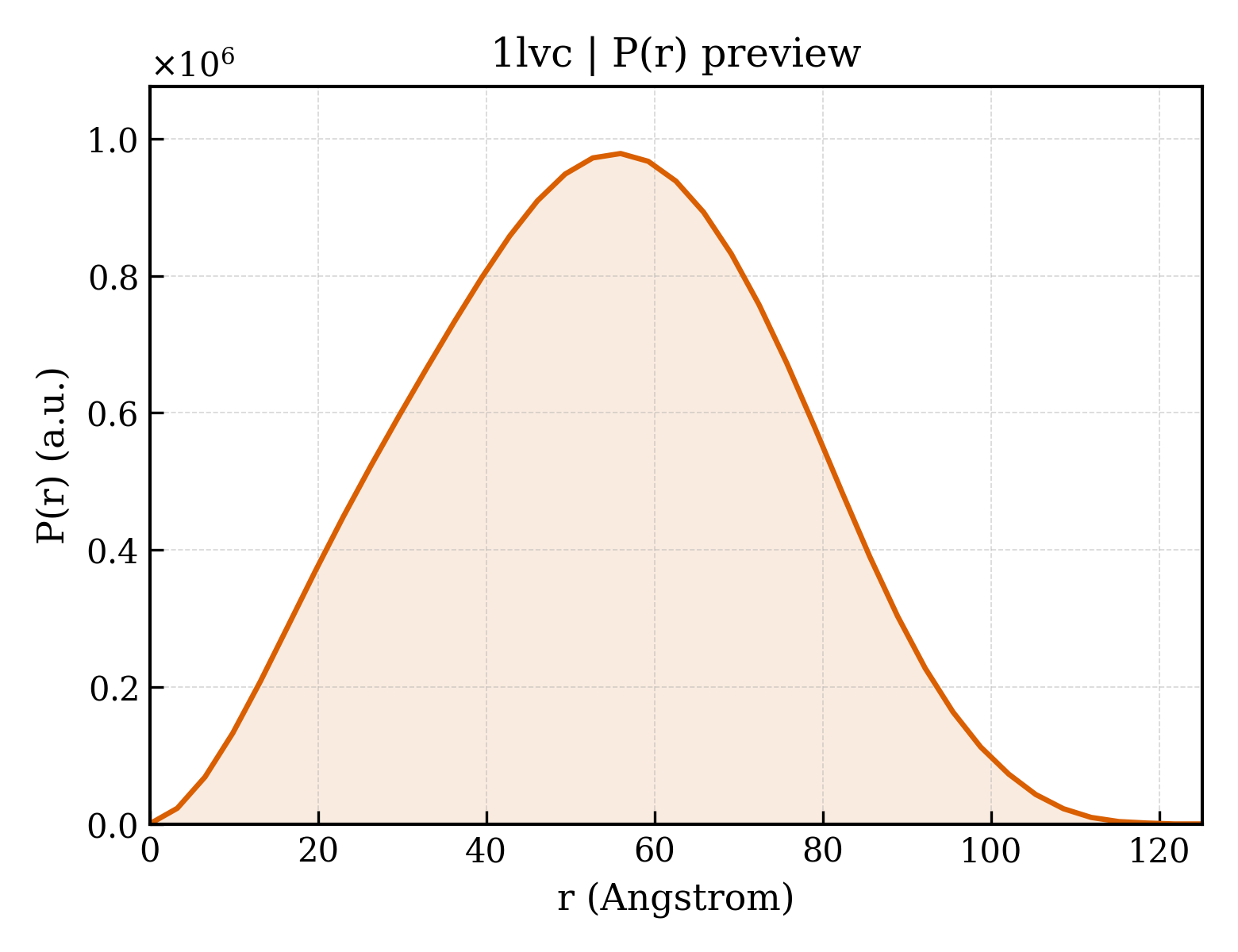

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1lvc
沉积日期 deposition_date	2002-05-28
结构标题 title	;Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP ;
关键词 keywords	helical domain, protein-protein complex, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.20 Å
回转半径 Rg (电子) rg_electron	40.66 Å
零角强度 I(0) i0	702908000.00
分子量 molecular_weight	217680.0 kDa
排除体积 excluded_volume	272440 Å³
包络体积 envelope_volume	389800 Å³
水化壳体积 shell_volume	76948 Å³
包络直径 envelope_diameter	128.6 Å
壳层 Rg shell_rg	49.07 Å
包络 Rg envelope_rg	39.36 Å
形状 Rg shape_rg	40.66 Å
总 Rg total_rg	41.10 Å
总原子数 total_atoms	15302
残基数 n_residues	1882
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	125.1 Å
Rg (实空间) rg_real	40.95 Å
Rg 误差 (实空间) rg_real_error	0.67 Å
I(0) (实空间) i0_real	7.0290e+08
I(0) 误差 (实空间) i0_real_error	1.0490e+07
Rg (倒空间) rg_reciprocal	41.20 Å
I(0) (倒空间) i0_reciprocal	703100000.0000
解质量估计 total_estimate	0.8967
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	56.0 Å
偏度 Skewness skewness	0.022
峰度 Kurtosis kurtosis	-0.554
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	70620000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.890

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	calmodulin-sensitive adenylate cyclase
分子量 formula_weight	58810.6 kDa
EC 编号 ec_number	4.6.1.1
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	15302

DRIDVLKGEKALKASGLVPEHADAFKKIARELNTYILFRPVNKLATNLIKSGVATKGLNVHGKSSDWGPVAGYIPFDQDLSKKHGQQLAVEKGNLENKKSITEHEGEIGKIPLKLDHLRIEELKENGIILKGKKEIDNGKKYYLLESNNQVYEFRISDENNEVQYKTKEGKITVLGEKFNWRNIEVMAKNVEGVLKPLTADYDLFALAPSLTEIKKQIPQKEWDKVVNTPNSLEKQKGVTNLLIKYGIERKPDSTKGTLSNWQKQMLDRLNEAVKYTGYTGGDVVNHGTEQDNEEFPEKDNEIFIINPEGEFILTKNWEMTGRFIEKNITGKDYLYYFNRSYNKIAPGNKAYIEWTDPITKAKINTIPTSAEFIKNLSSIRRSSNVGVYKDSGDKDEFAKKESVKKIAGYLSDYYNSANHIFSQEKKRKISIFRGIQAYNEIENVLKSKQIAPEYKNYFQYLKERITNQVQLLLTHQKSNIEFKLLYKQLNFTENETDNFEVFQKIIDEK

来源 Source

来源生物 organism	Bacillus anthracis
NCBI 分类编号 ncbi_taxonomy_id	1392
宿主生物 host_organism	Escherichia coli BL21

Entity 2 polymer

描述 description	calmodulin
分子量 formula_weight	16852.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 3 non-polymer

描述 description	YTTERBIUM (III) ION
分子量 formula_weight	173.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	3'ANTHRANILOYL-2'-DEOXY-ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	610.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1lvca_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.41 — Adenylylcyclase toxin (the edema factor)
超家族 Superfamily superfamily	e.41.1 — Adenylylcyclase toxin (the edema factor)
家族 Family family	e.41.1.1 — Adenylylcyclase toxin (the edema factor)

结构域编号 domain_id	d1lvcb_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.41 — Adenylylcyclase toxin (the edema factor)
超家族 Superfamily superfamily	e.41.1 — Adenylylcyclase toxin (the edema factor)
家族 Family family	e.41.1.1 — Adenylylcyclase toxin (the edema factor)

结构域编号 domain_id	d1lvcc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.41 — Adenylylcyclase toxin (the edema factor)
超家族 Superfamily superfamily	e.41.1 — Adenylylcyclase toxin (the edema factor)
家族 Family family	e.41.1.1 — Adenylylcyclase toxin (the edema factor)

结构域编号 domain_id	d1lvcd_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1lvce_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

结构域编号 domain_id	d1lvcf_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.39 — EF Hand-like
超家族 Superfamily superfamily	a.39.1 — EF-hand
家族 Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (12 domains)

结构域编号 domain_id	1lvcA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1760 — Adenylylcyclase toxin fold
同源超家族 H-superfamily homologous superfamily	10 — Anthrax toxin, edema factor, central domain

结构域编号 domain_id	1lvcA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1lvcB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1760 — Adenylylcyclase toxin fold
同源超家族 H-superfamily homologous superfamily	10 — Anthrax toxin, edema factor, central domain

结构域编号 domain_id	1lvcB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1lvcC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1760 — Adenylylcyclase toxin fold
同源超家族 H-superfamily homologous superfamily	10 — Anthrax toxin, edema factor, central domain

结构域编号 domain_id	1lvcC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1lvcD01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1lvcD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1lvcE01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1lvcE02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1lvcF01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

结构域编号 domain_id	1lvcF02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	238 — Recoverin; domain 1
同源超家族 H-superfamily homologous superfamily	10 — EF-hand

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	116.924 Å
晶胞边长 b length_b	167.918 Å
晶胞边长 c length_c	341.743 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	I 2 2 2
空间群编号 int_tables_number	23
晶系 crystal_system	—

分辨率 resolution	3.600 Å
最低分辨率 resolution_low	29.960 Å
R 因子 r_factor	0.2810
R_work r_work	0.2810
R_free r_free	0.3070
