1k8t

Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF)

Method: X-RAY DIFFRACTION D_max: 107.0 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALMODULIN-SENSITIVE ADENYLATE CYCLASE

Bacillus anthracis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 291–800	Not recorded	SO4 SULFATE ION × 4 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG550,Nickle chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.60 Å R-free 0.276
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 291–800	Not recorded	SO4 SULFATE ION × 8 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；PEG550,Nickle chloride, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.60 Å R-free 0.276

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1K8T	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 291–800（510 aa） Chain B 291–800（510 aa） Chain C 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 3 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K90 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 1 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulphate, Cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.75 Å R-free 0.286
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–800（510 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–800（510 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1K93 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin Deposited 2001-10-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 291–800（510 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；peg8000, ammonium sulphate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.95 Å R-free 0.315
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–800（510 aa） Fragment：c-terminal domain (residues 291-800)	Not recorded	YB YTTERBIUM (III) ION × 1 DOT 3'ANTHRANILOYL-2'-DEOXY-ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–800（510 aa） Fragment：c-terminal domain (residues 291-800)	Not recorded	YB YTTERBIUM (III) ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1LVC Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin and 2' deoxy, 3' anthraniloyl ATP Deposited 2002-05-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 291–800（510 aa） Fragment：c-terminal domain (residues 291-800)	Not recorded	YB YTTERBIUM (III) ION × 1 DOT 3'ANTHRANILOYL-2'-DEOXY-ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；PEG 8000, ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.60 Å R-free 0.307
1PK0 Crystal Structure of the EF3-CaM complexed with PMEApp Deposited 2003-06-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 292–798（507 aa） Fragment：residues 292-798 Chain B 292–798（507 aa） Fragment：residues 292-798 Chain C 292–798（507 aa） Fragment：residues 292-798	Not recorded	YB YTTERBIUM (III) ION × 3 EMA (ADENIN-9-YL-ETHOXYMETHYL)-HYDROXYPHOSPHINYL-DIPHOSPHATE × 3 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；PEG 8000,ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.30 Å R-free 0.302
1PK0 Crystal Structure of the EF3-CaM complexed with PMEApp Deposited 2003-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 292–798（507 aa） Fragment：residues 292-798	Not recorded	YB YTTERBIUM (III) ION × 1 EMA (ADENIN-9-YL-ETHOXYMETHYL)-HYDROXYPHOSPHINYL-DIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；PEG 8000,ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.30 Å R-free 0.302
1PK0 Crystal Structure of the EF3-CaM complexed with PMEApp Deposited 2003-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 292–798（507 aa） Fragment：residues 292-798	Not recorded	YB YTTERBIUM (III) ION × 1 EMA (ADENIN-9-YL-ETHOXYMETHYL)-HYDROXYPHOSPHINYL-DIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；PEG 8000,ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.30 Å R-free 0.302
1PK0 Crystal Structure of the EF3-CaM complexed with PMEApp Deposited 2003-06-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 292–798（507 aa） Fragment：residues 292-798	Not recorded	YB YTTERBIUM (III) ION × 1 EMA (ADENIN-9-YL-ETHOXYMETHYL)-HYDROXYPHOSPHINYL-DIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；273 K；PEG 8000,ammonium sulfate, glycerol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 3.30 Å R-free 0.302
1S26 Structure of Anthrax Edema Factor-Calmodulin-alpha,beta-methyleneadenosine 5'-triphosphate Complex Reveals an Alternative Mode of ATP Binding to the Catalytic Site Deposited 2004-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–800（510 aa） Fragment：RESIDUE 291-800, C-TERMINAL EF3	Not recorded	YB YTTERBIUM (III) ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulfate, Glycerol, cacodylate, pH 6.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.304
1S26 Structure of Anthrax Edema Factor-Calmodulin-alpha,beta-methyleneadenosine 5'-triphosphate Complex Reveals an Alternative Mode of ATP Binding to the Catalytic Site Deposited 2004-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–800（510 aa） Fragment：RESIDUE 291-800, C-TERMINAL EF3	Not recorded	YB YTTERBIUM (III) ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulfate, Glycerol, cacodylate, pH 6.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.304
1S26 Structure of Anthrax Edema Factor-Calmodulin-alpha,beta-methyleneadenosine 5'-triphosphate Complex Reveals an Alternative Mode of ATP Binding to the Catalytic Site Deposited 2004-01-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 291–800（510 aa） Fragment：RESIDUE 291-800, C-TERMINAL EF3	Not recorded	YB YTTERBIUM (III) ION × 1 APC DIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, Ammonium Sulfate, Glycerol, cacodylate, pH 6.5, temperature 277K, VAPOR DIFFUSION, HANGING DROP	Resolution 3.00 Å R-free 0.304
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
1SK6 Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF) in complex with calmodulin, 3',5' cyclic AMP (cAMP), and pyrophosphate Deposited 2004-03-04	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 291–800（510 aa）	Not recorded	YB YTTERBIUM (III) ION × 3 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.20 Å R-free 0.307
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFU Crystal structure of anthrax edema factor (EF) truncation mutant, EF-delta 64 in complex with calmodulin Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 64–800（737 aa）	Mutation：detetion of 33-63	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.300
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFV Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3' deoxy-ATP Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 3AT 3'-DEOXYADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.35 Å R-free 0.282
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 33–800（768 aa） Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 33–800（768 aa） Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFW Crystal structure of anthrax edema factor (EF) in complex with calmodulin and 3'5' cyclic AMP (cAMP) Deposited 2004-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain E 33–800（768 aa） Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 2 CMP ADENOSINE-3',5'-CYCLIC-MONOPHOSPHATE × 2 CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.40 Å R-free 0.283
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFX Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 10 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.20 Å R-free 0.278
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFY Crystal structure of anthrax edema factor (EF) in complex with calmodulin Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.30 Å R-free 0.289
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1XFZ Crystal structure of anthrax edema factor (EF) in complex with calmodulin in the presence of 1 millimolar exogenously added calcium chloride Deposited 2004-09-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；278 K；PEG400, magnesium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 278K	Resolution 3.25 Å R-free 0.270
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
1Y0V Crystal structure of anthrax edema factor (EF) in complex with calmodulin and pyrophosphate Deposited 2004-11-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 33–800（768 aa）	Not recorded	MG MAGNESIUM ION × 1 POP PYROPHOSPHATE 2- × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；277 K；PEG400, MgCl2, Tris-HCl, pH 8.5, VAPOR DIFFUSION, temperature 277K	Resolution 3.60 Å R-free 0.307
6UZB Anthrax toxin protective antigen channels bound to edema factor Deposited 2019-11-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain H 34–800（767 aa）	Not recorded	CA CALCIUM ION × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
6UZD Anthrax toxin protective antigen channels bound to edema factor Deposited 2019-11-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 34–800（767 aa） Chain I 34–800（767 aa）	Not recorded	CA CALCIUM ION × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6UZE Anthrax toxin protective antigen channels bound to edema factor Deposited 2019-11-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 34–800（767 aa） Chain I 34–800（767 aa）	Not recorded	CA CALCIUM ION × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
6VRA Anthrax octamer prechannel bound to full-length edema factor Deposited 2020-02-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain I 34–800（767 aa） Chain J 34–800（767 aa） Chain K 34–800（767 aa） Chain L 34–800（767 aa）	Not recorded	CA CALCIUM ION × 16	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å

17 other PDB entries and 69 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYAA_BACAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–510； UniProt 291–800

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

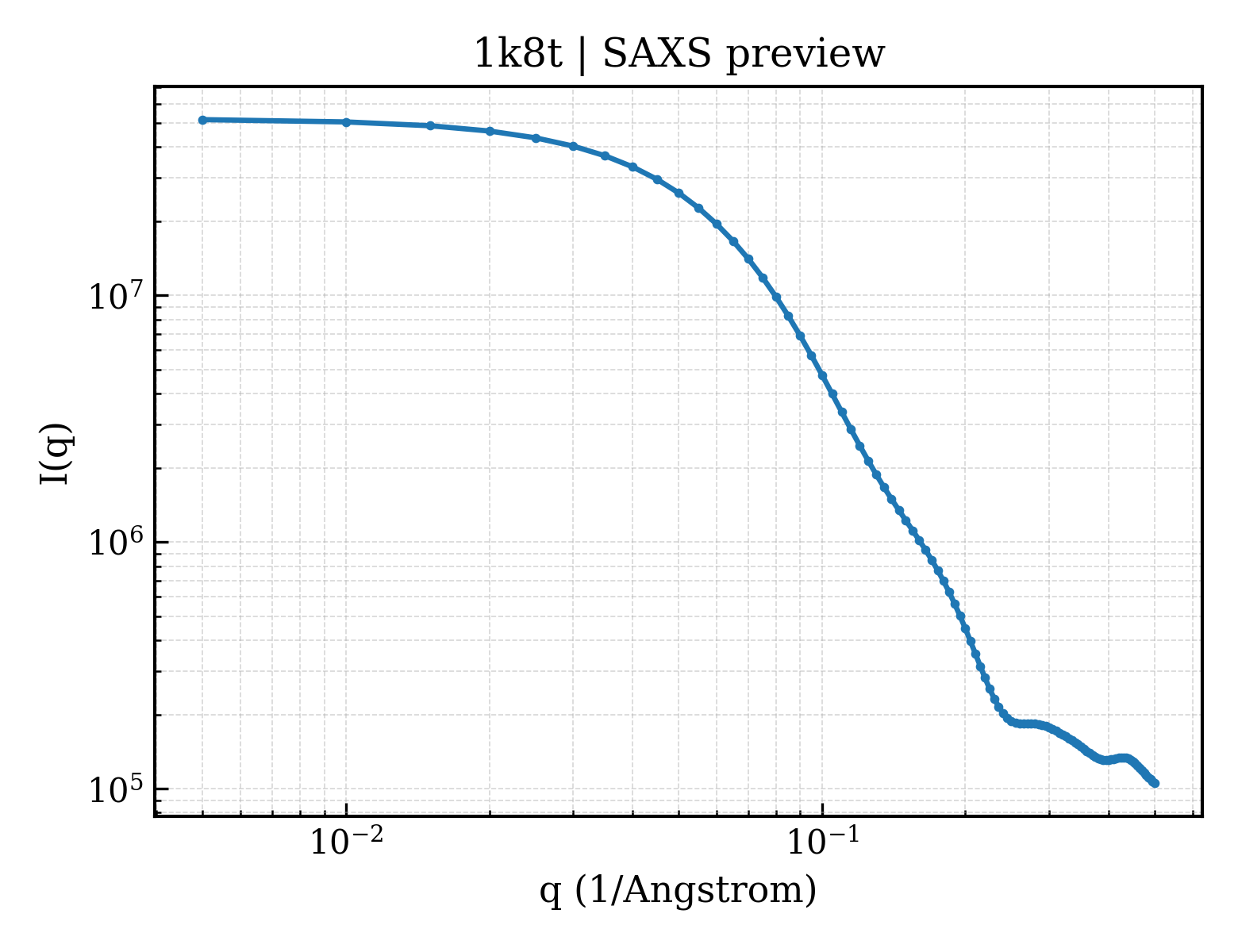

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k8t
Deposition date deposition_date	2001-10-25
Structure title title	Crystal structure of the adenylyl cyclase domain of anthrax edema factor (EF)
Keywords keywords	edema factor, adenylyl cyclase, anthrax, calmodulin, TOXIN, LYASE; TOXIN,LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.09 Å
Radius of gyration Rg (electron density) rg_electron	28.57 Å
Forward intensity I(0) i0	52014300.00
Molecular weight molecular_weight	57363.0 kDa
Excluded volume excluded_volume	72312 Å³
Envelope volume envelope_volume	95877 Å³
Hydration-shell volume shell_volume	29251 Å³
Envelope diameter envelope_diameter	111.8 Å
Shell Rg shell_rg	34.24 Å
Envelope Rg envelope_rg	28.75 Å
Shape Rg shape_rg	28.58 Å
Total Rg total_rg	29.13 Å
Total atoms total_atoms	4046
Residues n_residues	498
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	107.0 Å
Rg (real space) rg_real	29.22 Å
Rg uncertainty (real space) rg_real_error	1.04 Å
I(0) (real space) i0_real	5.2010e+07
I(0) uncertainty (real space) i0_real_error	7.9670e+05
Rg (reciprocal space) rg_reciprocal	29.17 Å
I(0) (reciprocal space) i0_reciprocal	52010000.0000
Solution quality estimate total_estimate	0.8307
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.1 Å
Skewness Skewness skewness	0.513
Kurtosis Kurtosis kurtosis	0.027
Angular range angular_range	— – 0.2750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10360000.0000
Real-space data points n_real_points	56
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.695; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.733; Smooth: 0.977

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CALMODULIN-SENSITIVE ADENYLATE CYCLASE
Molecular weight formula_weight	58810.6 kDa
EC 编号 ec_number	4.6.1.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4142

DRIDVLKGEKALKASGLVPEHADAFKKIARELNTYILFRPVNKLATNLIKSGVATKGLNVHGKSSDWGPVAGYIPFDQDLSKKHGQQLAVEKGNLENKKSITEHEGEIGKIPLKLDHLRIEELKENGIILKGKKEIDNGKKYYLLESNNQVYEFRISDENNEVQYKTKEGKITVLGEKFNWRNIEVMAKNVEGVLKPLTADYDLFALAPSLTEIKKQIPQKEWDKVVNTPNSLEKQKGVTNLLIKYGIERKPDSTKGTLSNWQKQMLDRLNEAVKYTGYTGGDVVNHGTEQDNEEFPEKDNEIFIINPEGEFILTKNWEMTGRFIEKNITGKDYLYYFNRSYNKIAPGNKAYIEWTDPITKAKINTIPTSAEFIKNLSSIRRSSNVGVYKDSGDKDEFAKKESVKKIAGYLSDYYNSANHIFSQEKKRKISIFRGIQAYNEIENVLKSKQIAPEYKNYFQYLKERITNQVQLLLTHQKSNIEFKLLYKQLNFTENETDNFEVFQKIIDEK

来源 Source

来源生物 organism	Bacillus anthracis
NCBI Class编号 ncbi_taxonomy_id	1392
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	NICKEL (II) ION
Molecular weight formula_weight	58.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	96

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1k8ta_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.41 — Adenylylcyclase toxin (the edema factor)
Superfamily Superfamily superfamily	e.41.1 — Adenylylcyclase toxin (the edema factor)
Family Family family	e.41.1.1 — Adenylylcyclase toxin (the edema factor)

CATH v4.4 (2 domains)

Domain ID domain_id	1k8tA02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1760 — Adenylylcyclase toxin fold
Homologous superfamily homologous superfamily	10 — Anthrax toxin, edema factor, central domain

Domain ID domain_id	1k8tA03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	60 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	50.476 Å
Unit-cell length b length_b	203.604 Å
Unit-cell length c length_c	74.034 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.2290
R_free r_free	0.2760
