1cnn
OMEGA-CONOTOXIN MVIIC FROM CONUS MAGUS

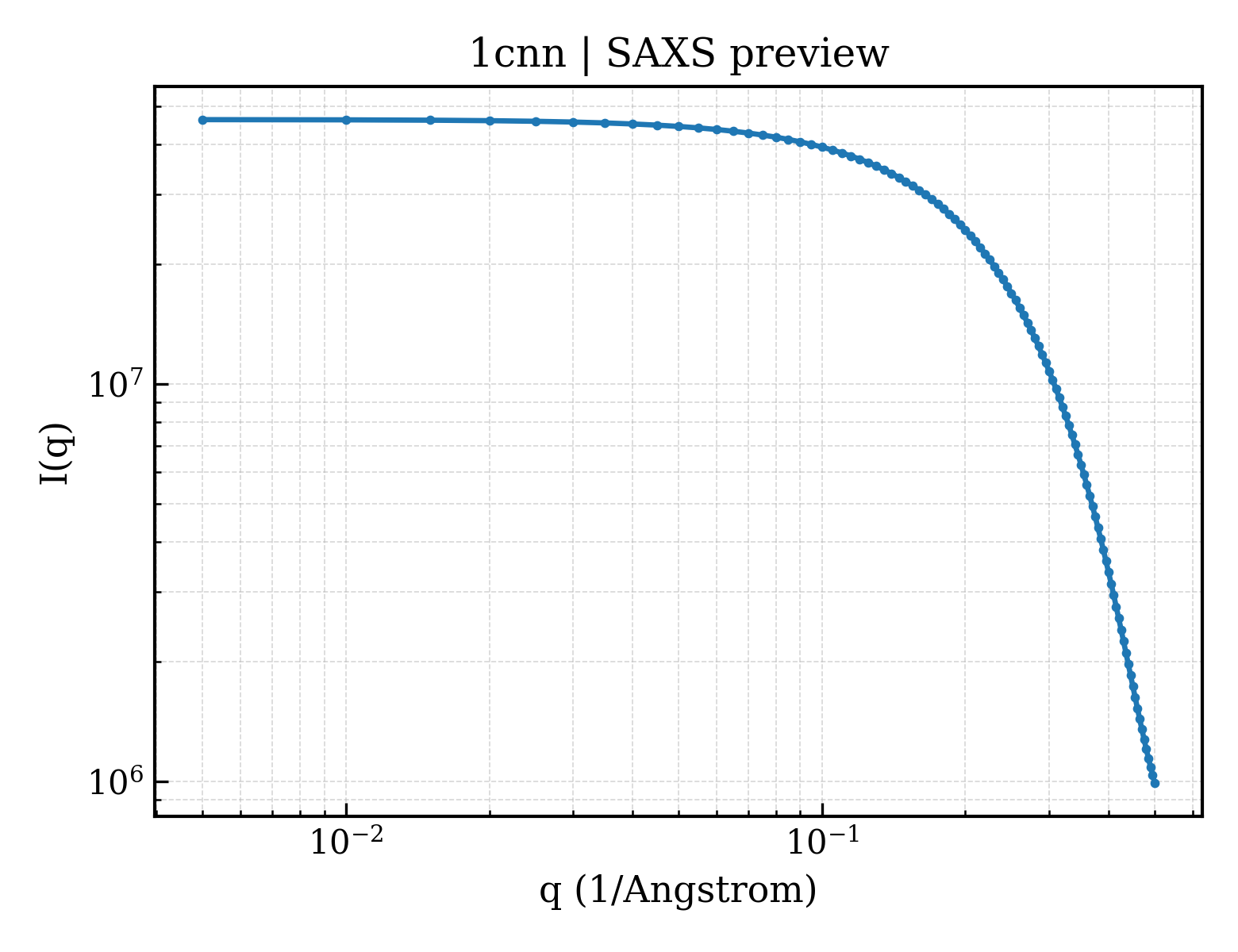

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1cnn |
| deposition_date | 1999-05-20 |
| title | OMEGA-CONOTOXIN MVIIC FROM CONUS MAGUS |
| keywords | VOLTAGE-SENSITIVE CALCIUM CHANNEL ANTAGONIST, PEPTIDE HYBRIDS, TOXIN; TOXIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 6.92 Å |
| rg_electron | 7.34 Å |
| i0 | 46244400.00 |
| molecular_weight | 46943.0 kDa |
| excluded_volume | 55191 ų |
| envelope_volume | 5327 ų |
| shell_volume | 5574 ų |
| envelope_diameter | 28.3 Å |
| shell_rg | 13.59 Å |
| envelope_rg | 9.11 Å |
| shape_rg | 7.31 Å |
| total_rg | 7.64 Å |
| total_atoms | 6290 |
| n_residues | 442 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 24.9 Å |
| rg_real | 6.91 Å |
| rg_real_error | 0.35 Å |
| i0_real | 4.6240e+07 |
| i0_real_error | 4.7290e+05 |
| rg_reciprocal | 6.91 Å |
| i0_reciprocal | 46240000.0000 |
| total_estimate | 0.8336 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 8.8 Å |
| skewness | 0.364 |
| kurtosis | 0.210 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 7052.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.656; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.954; Smooth: 0.910 |
