1v4q
Three-dimensional solution structure of the analogue peptide of omega-conotoxin MVIIC

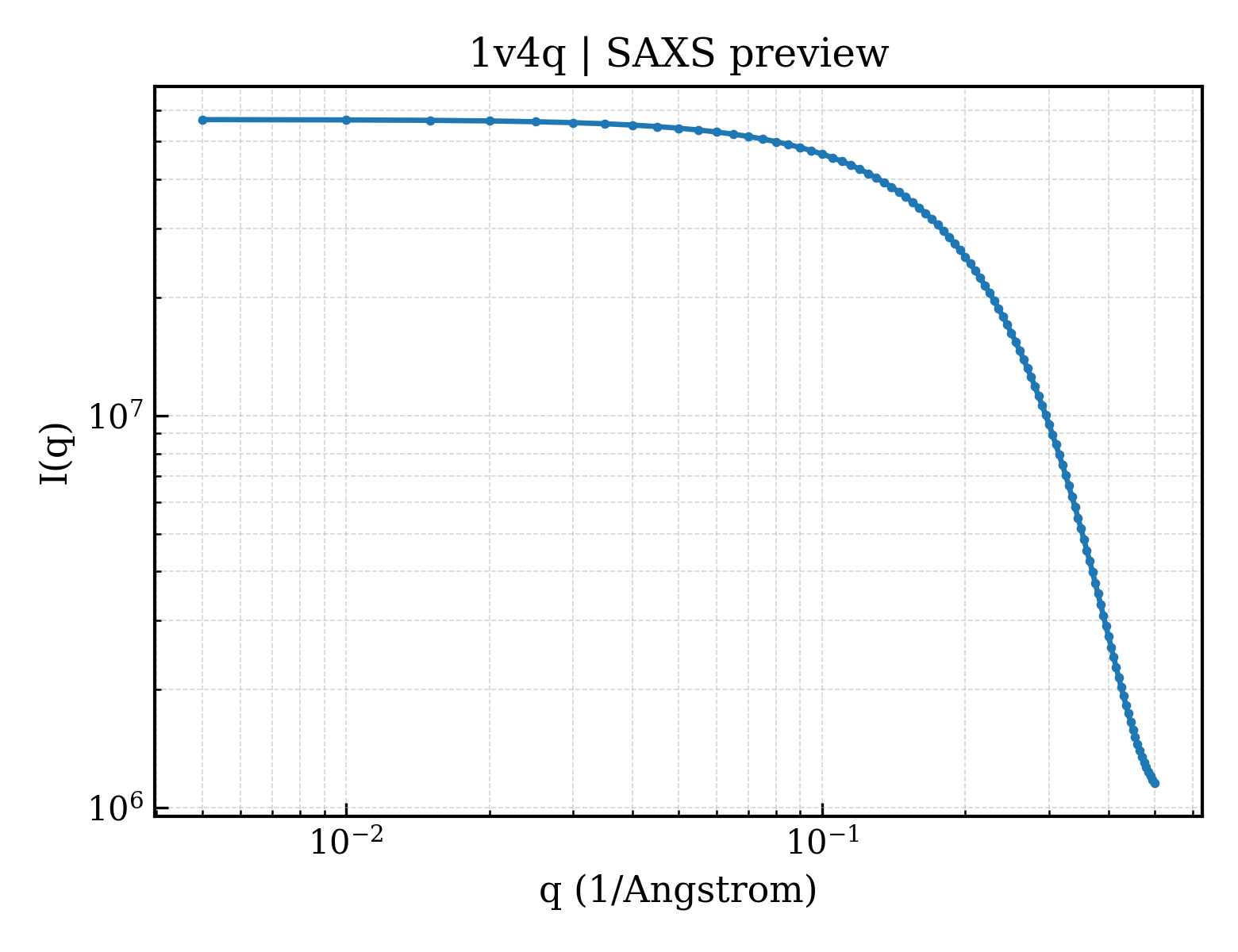

SAXS 散射曲线 SAXS Profile

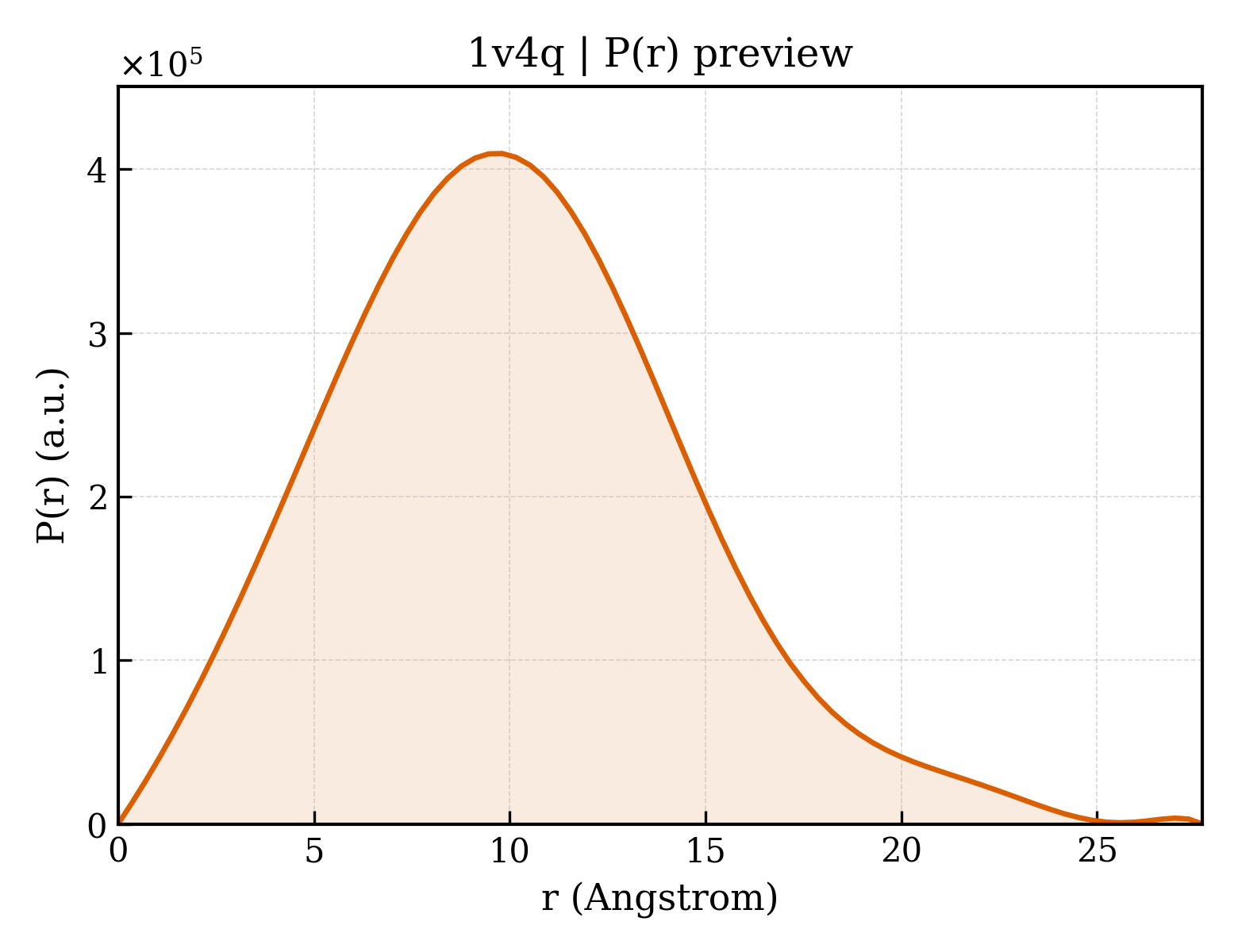

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1v4q |
| 沉积日期 deposition_date | 2003-11-17 |
| 结构标题 title | Three-dimensional solution structure of the analogue peptide of omega-conotoxin MVIIC |
| 关键词 keywords | omega-conotoxin, cystine knot motif, triple-stranded antiparallel beta-sheet, calcium channel blocker, TOXIN; TOXIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 7.79 Å |
| 回转半径 Rg (电子) rg_electron | 8.03 Å |
| 零角强度 I(0) i0 | 56912200.00 |
| 分子量 molecular_weight | 52229.0 kDa |
| 排除体积 excluded_volume | 61626 ų |
| 包络体积 envelope_volume | 6497 ų |
| 水化壳体积 shell_volume | 6213 ų |
| 包络直径 envelope_diameter | 29.5 Å |
| 壳层 Rg shell_rg | 14.28 Å |
| 包络 Rg envelope_rg | 9.85 Å |
| 形状 Rg shape_rg | 8.00 Å |
| 总 Rg total_rg | 8.36 Å |
| 总原子数 total_atoms | 7128 |
| 残基数 n_residues | 468 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 27.7 Å |
| Rg (实空间) rg_real | 7.80 Å |
| Rg 误差 (实空间) rg_real_error | 0.30 Å |
| I(0) (实空间) i0_real | 5.6910e+07 |
| I(0) 误差 (实空间) i0_real_error | 5.5800e+05 |
| Rg (倒空间) rg_reciprocal | 7.80 Å |
| I(0) (倒空间) i0_reciprocal | 56910000.0000 |
| 解质量估计 total_estimate | 0.8507 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 9.8 Å |
| 偏度 Skewness skewness | 0.402 |
| 峰度 Kurtosis kurtosis | 0.082 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 12640.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.717; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.935; Smooth: 0.968 |
